Rear Sill Molding

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

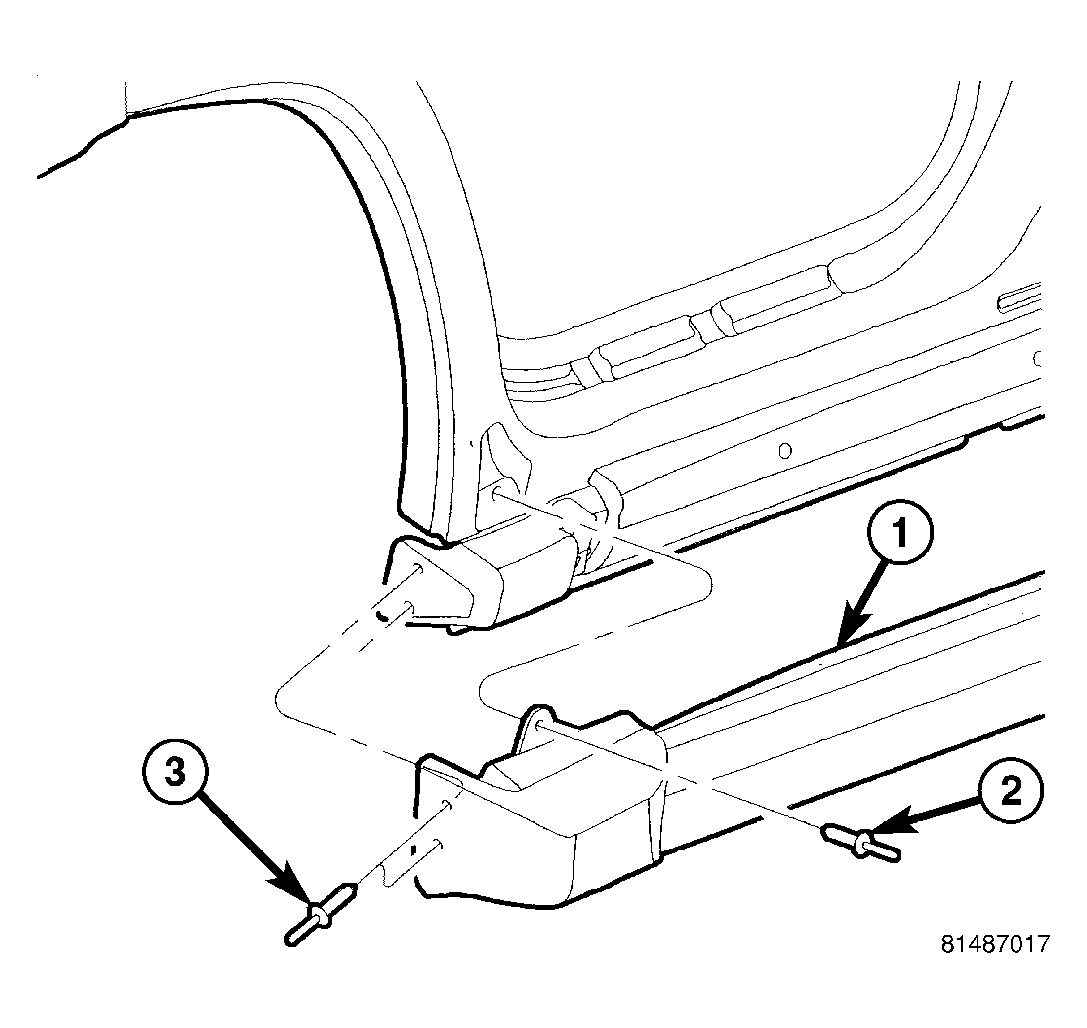

Fig 1: Rear Sill Molding

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR SILL MOLDING

2 - RIVET

3 - RIVETS (2)

Open the rear door and remove the rivets (2 and 3). See Fig 1.

Fig 2: Sill Molding

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER PUSH PIN FASTENERS

2 - LOWER PUSH PIN FASTENERS

3 - SILL MOLDING

Separate the lower clips (2) using a trim tool C-4829-A or equivalent. See Fig 2.
Using a trim stick C-4755 or equivalent, separate the adhesive tape and upper clips (1) and remove the rear sill molding (3).
