Luggage Rack: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Using a trim stick C-4755 or equivalent, remove the roof rack covers. See Fig 2.
- Remove the bolts and remove the roof rack. See Fig 1.
Courtesy of DAIMLERCHRYSLER CORP.

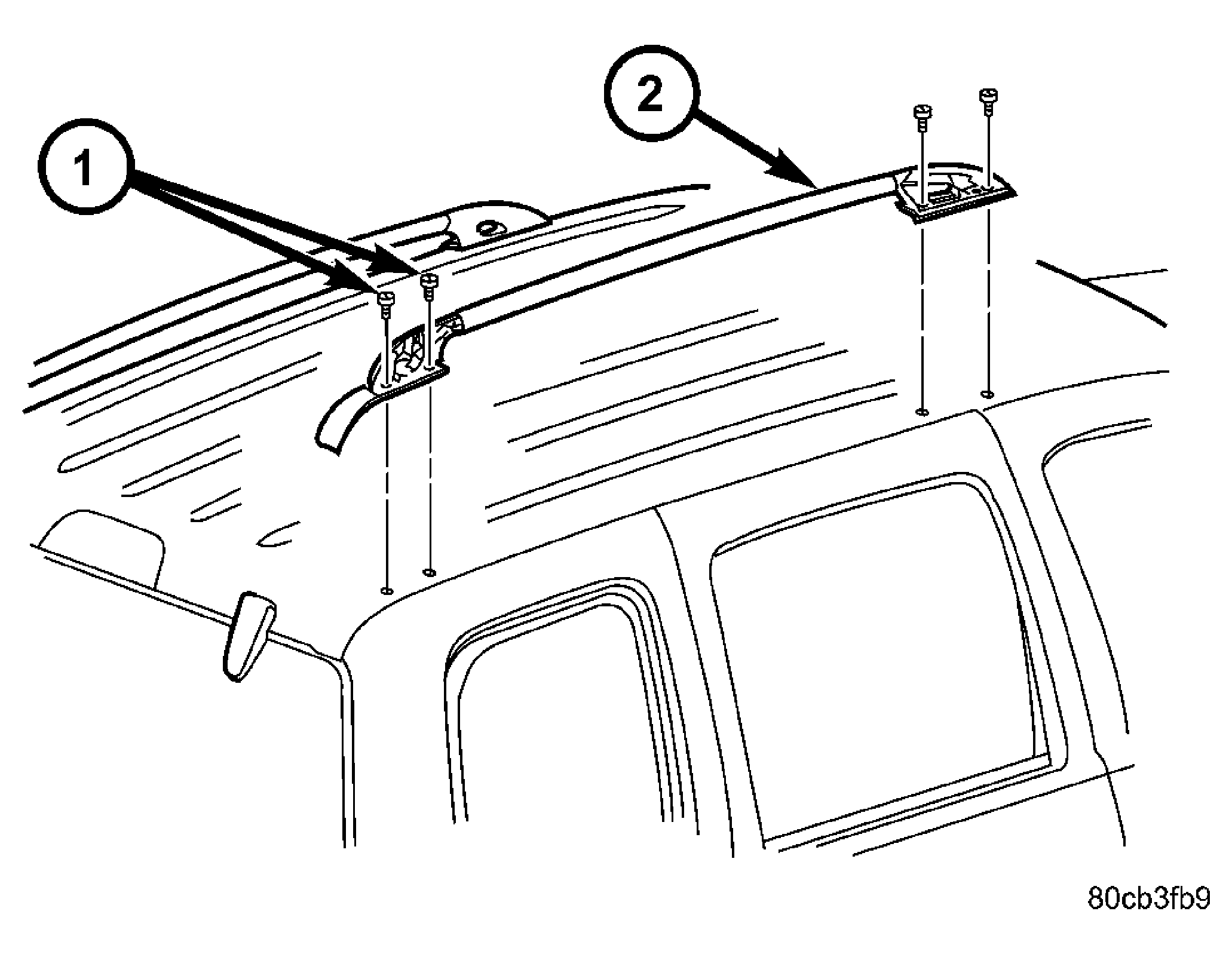

| 1 - BOLTS (4) |
| 2 - RACK RAIL |
Courtesy of DAIMLERCHRYSLER CORP.

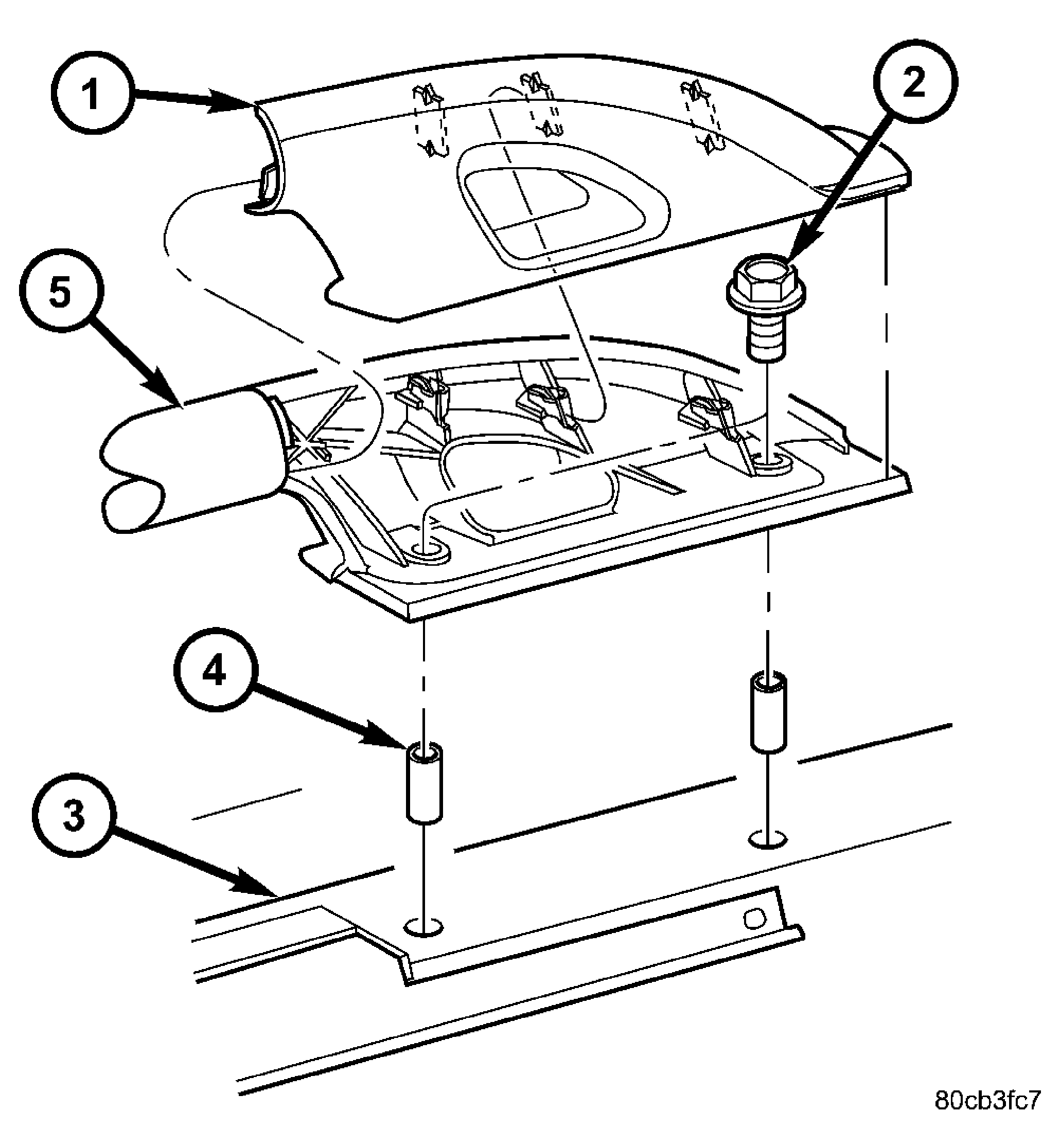

| 1 - COVER |
| 2 - BOLTS |
| 3 - ROOF PANEL |
| 4 - KNURLED NUT |
| 5 - ROOF RACK |
