Fuel Fill Door/Housing: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel cap.
Remove the three screws connecting the fuel door/housing to the filler neck.
Reach in through the opening and depress the tabs at the upper and bottom right of the door/housing. See Fig 1.
Remove the fuel door/housing from the vehicle.

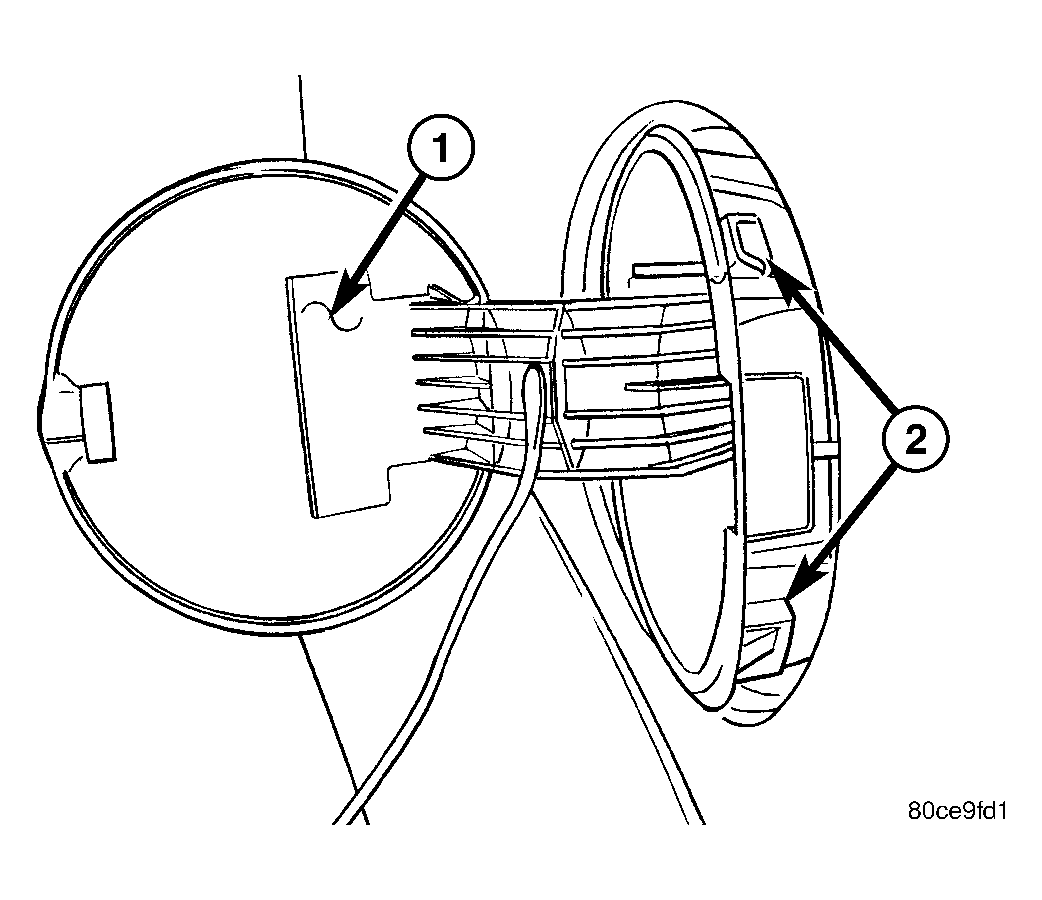

Fig 1: Fuel Fill Door/Housing

Courtesy of DAIMLERCHRYSLER CORP.

1 - FUEL FILL DOOR

2 - HOUSING TABS
