Exterior Handle: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the waterdam as necessary to gain access to the handle. (Refer to BODY/DOORS - REAR/WATERDAM - REMOVAL) .
Disconnect the handle rod at the handle.
Remove the nuts and remove the handle. See Fig 1.

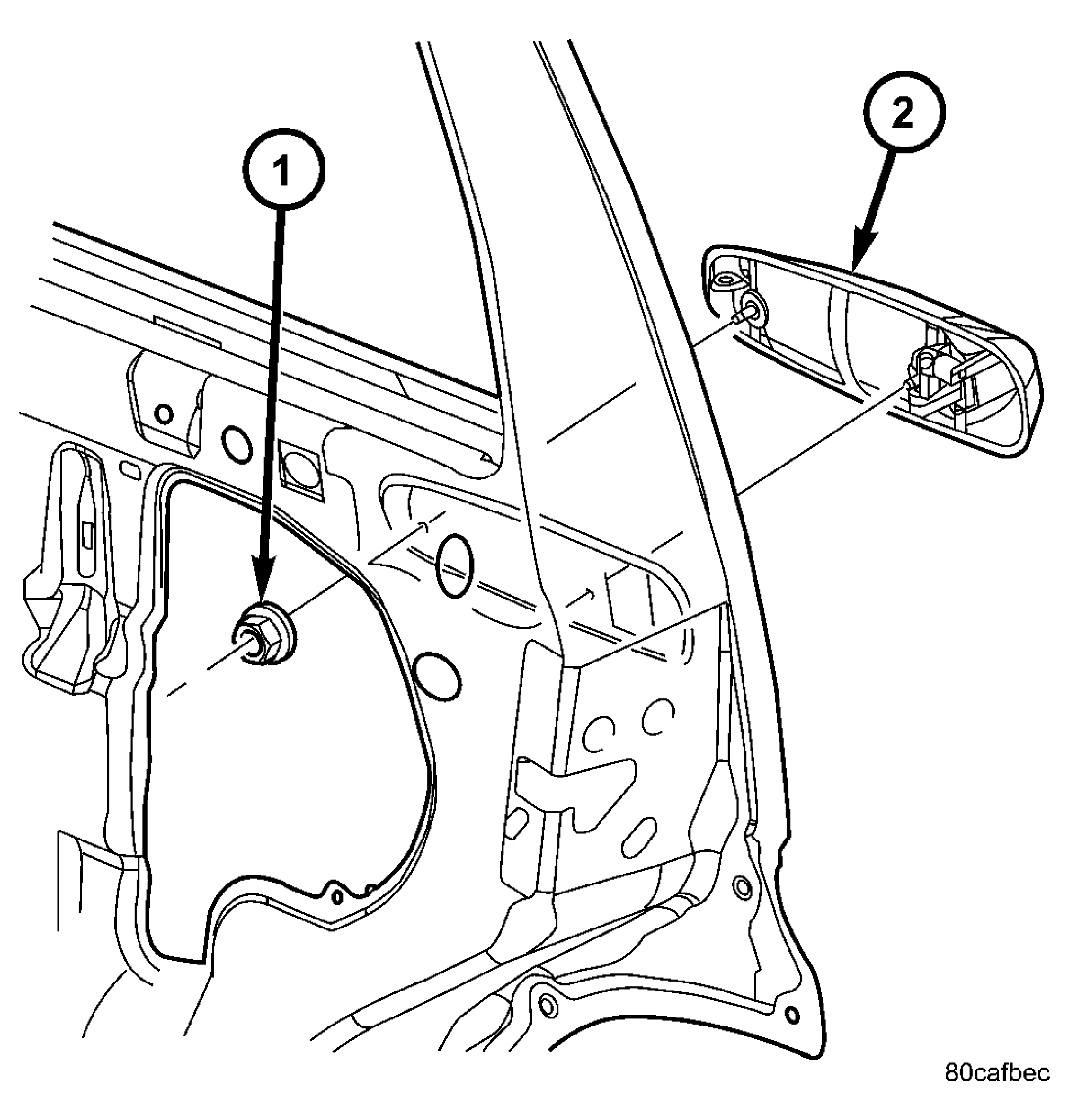

Fig 1: Exterior Handle

Courtesy of DAIMLERCHRYSLER CORP.

1 - NUTS (2)

2 - EXTERIOR HANDLE
