Door - Rear: Door: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the door wire harness electrical connector at the b-pillar.
Disconnect the check strap from the b-pillar. (Refer to BODY/DOORS - REAR/CHECK STRAP - REMOVAL) .
Support the door with a suitable lifting device.
NOTE: The epoxy washers should not be removed from the hinge. If the washers are removed the door may have to be readjusted.
Remove the nuts attaching the door hinges to the door. See Fig 1.

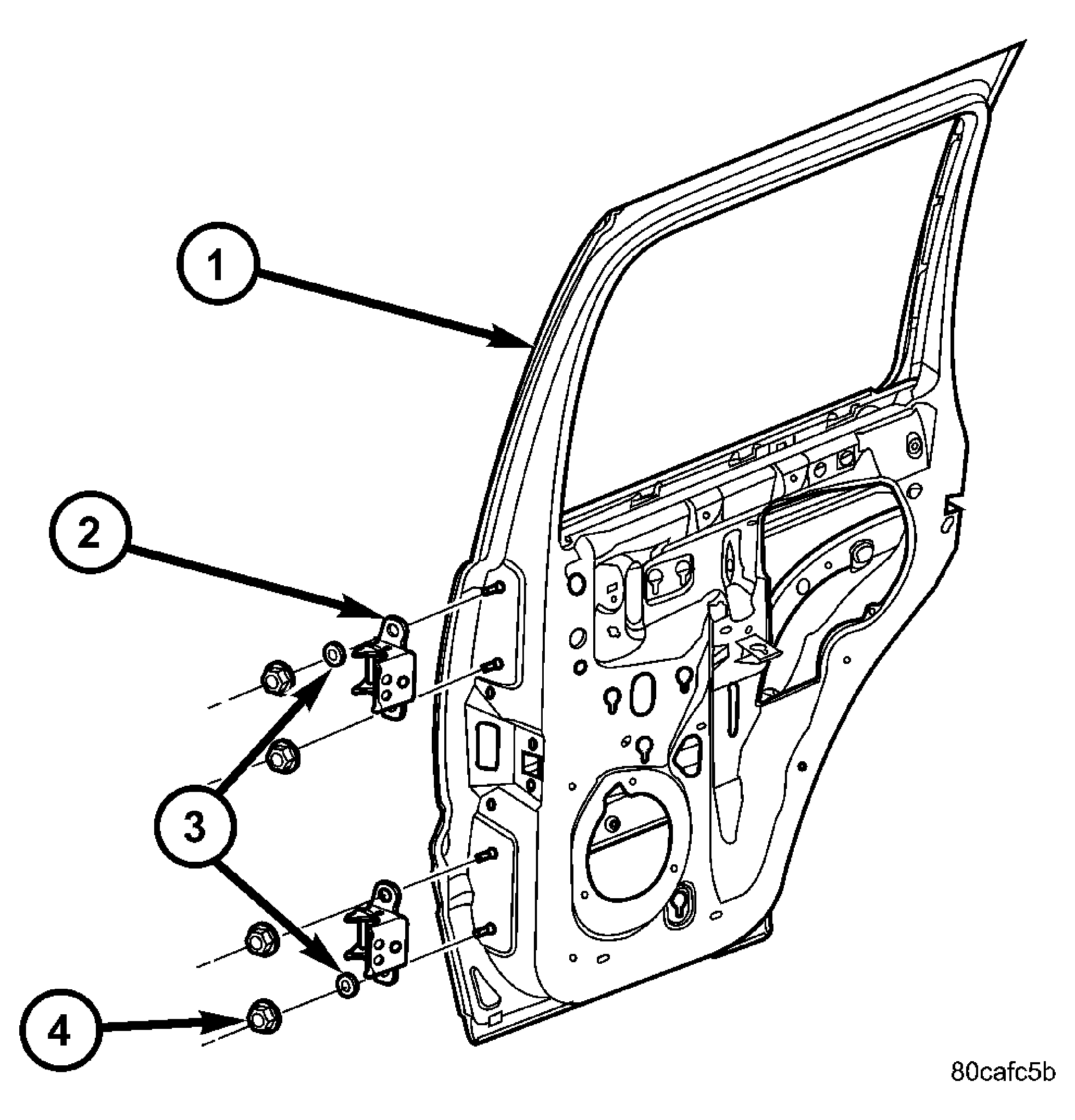

Fig 1: Hinges

Courtesy of DAIMLERCHRYSLER CORP.

1 - DOOR

2 - HINGES

3 - EPOXY WASHERS (2) (NOT REMOVABLE)

4 - NUTS
