Door Glass: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the waterdam. (Refer to BODY/DOORS - REAR/WATERDAM - REMOVAL) .
Raise the glass and line up the lift plate clip with the hole in the door panel shown. See Fig 1.

Using a long flat blade or hook type tool, disengage the clip attaching glass retainer to regulator lift plate.

Fig 1: Door Glass Position

Courtesy of DAIMLERCHRYSLER CORP.

1 - GLASS DIVISION BAR

2 - DOOR PANEL SIGHT HOLE

3 - DOOR GLASS

Disconnect the glass from the regulator lift plate and reinstall the clip.
Position the glass into the bottom of the door.
Remove the glass division bar bolt. See Fig 2.
Twist the division bar towards the inside of the door and disengage the door glass.
Remove the glass from the window opening.

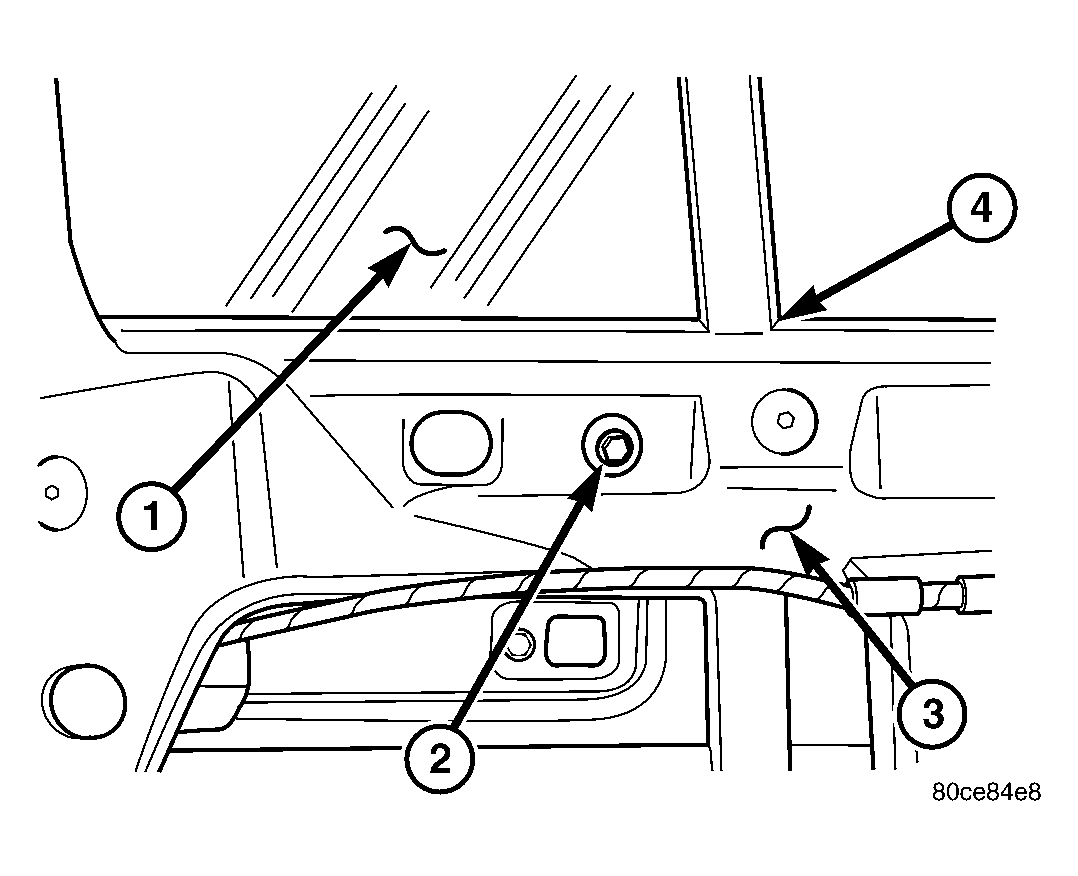

Fig 2: Glass Division Bar

Courtesy of DAIMLERCHRYSLER CORP.

1 - STATIONARY DOOR GLASS

2 - DIVISION BAR BOLT (1)

3 - DOOR

4 - GLASS DIVISION BAR
