Adjustment - Timing Belt TENSIONER

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

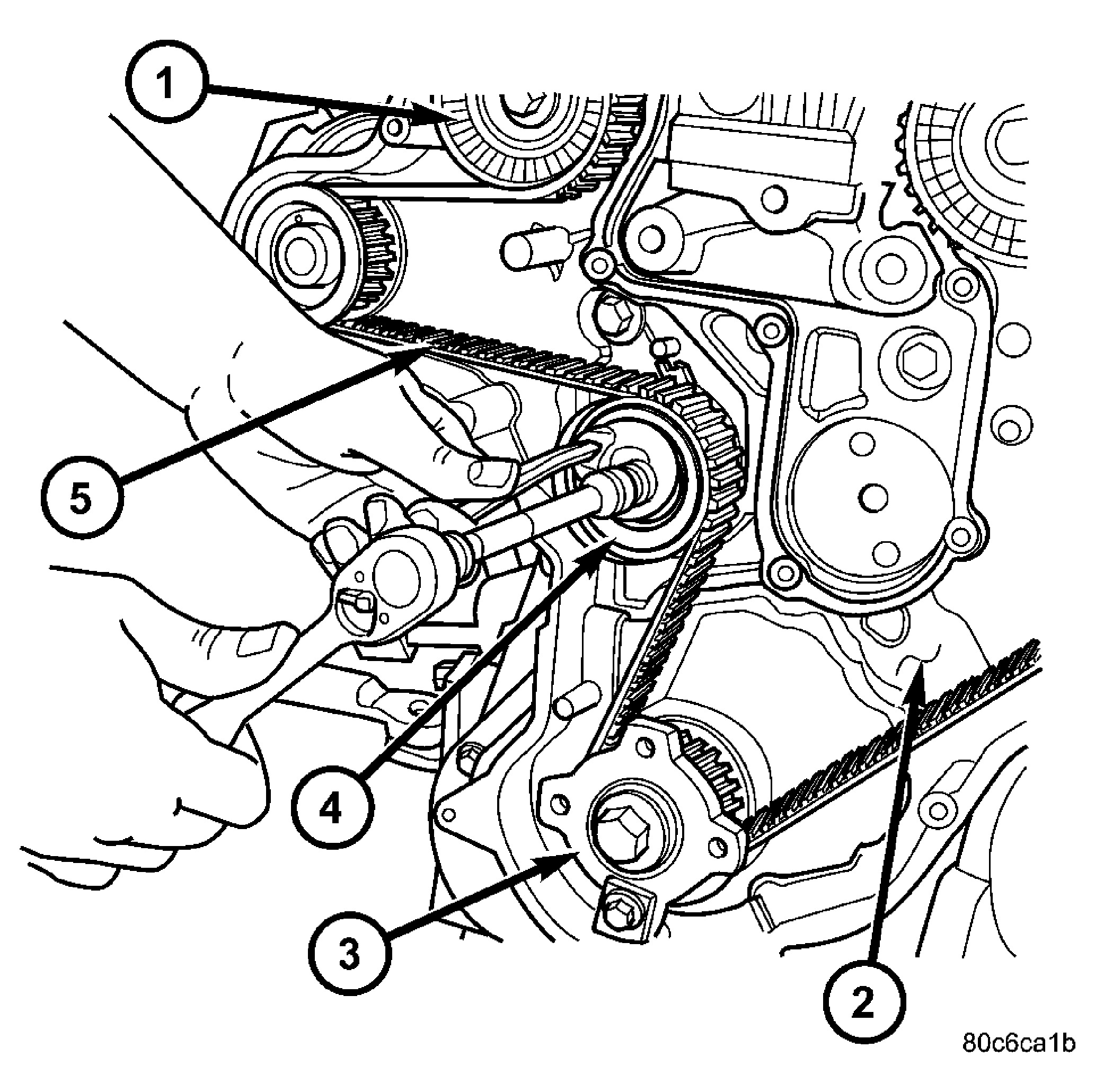

Fig 1: TIMING BELT TENSIONER ADJUSTMENT

Courtesy of DAIMLERCHRYSLER CORP.

1 - TIMING BELT IDLER PULLEY

2 - ENGINE FRONT COVER

3 - CRANKSHAFT HUB

4 - TIMING BELT TENSIONER

5 - TIMING BELT

With timing belt outer cover removed and timing belt installed.

Loosen timing belt tensioner. See Fig 1.

Fig 2: TIMING BELT TENSIONER ALIGNMENT

Courtesy of DAIMLERCHRYSLER CORP.

1 - TENSIONER SPRING

2 - 1 MM ALIGNMENT POINTER OVERLAP

3 - TENSIONER ALIGNMENT POINTER

4 - TENSIONER ASSEMBLY

Align timing belt tensioner using special tool 9660, with the alignment pointer as shown and torque timing belt tensioner retaining bolt to 34.7 N.m (26 ft. lbs.). See Fig 2.
Rotate engine 2 complete revolution and then recheck tensioner alignment. Readjust tensioner alignment as necessary.
