Seal-Axle Shaft: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

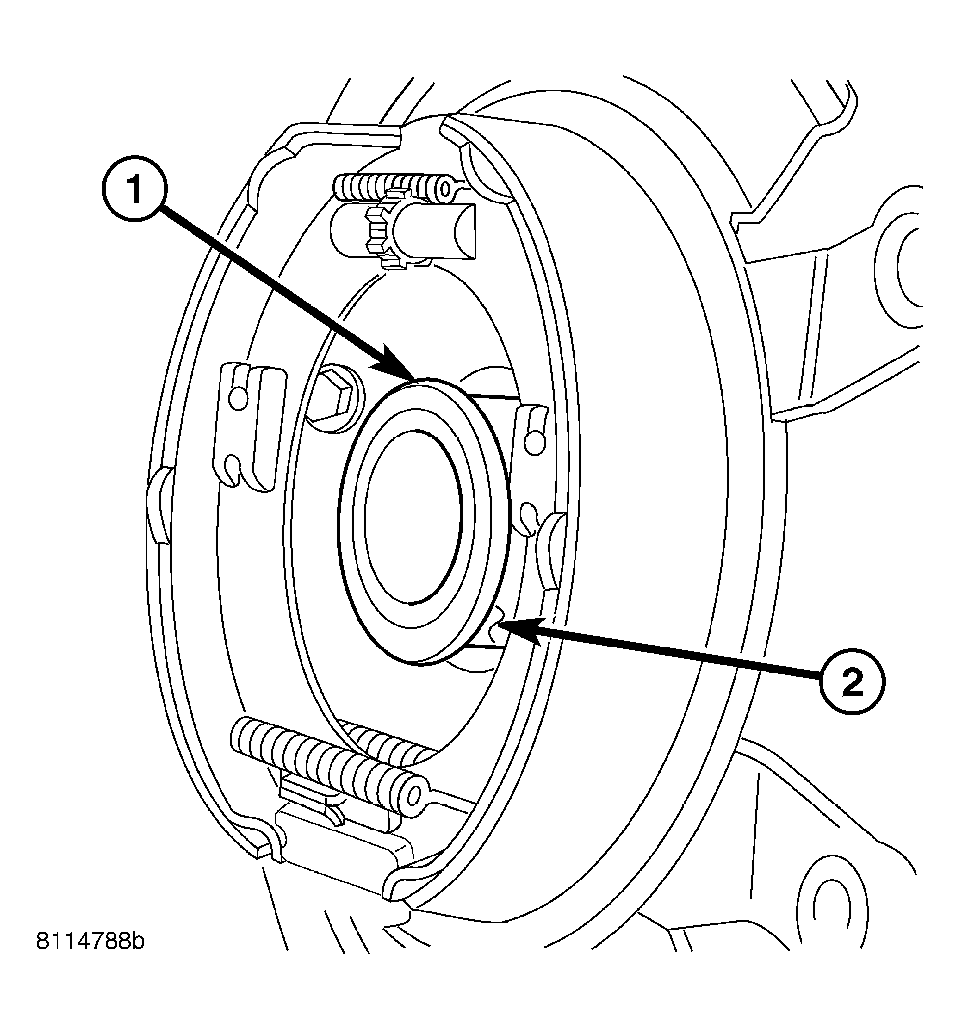

Fig 1: AXLE SHAFT SEAL
GC0025112Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAL
2 - AXLE TUBE
  1. Remove axle shaft.
  2. Remove axle shaft seal (1) from axle tube (2) with a seal pick. See Fig 1.
