Cluster Lens

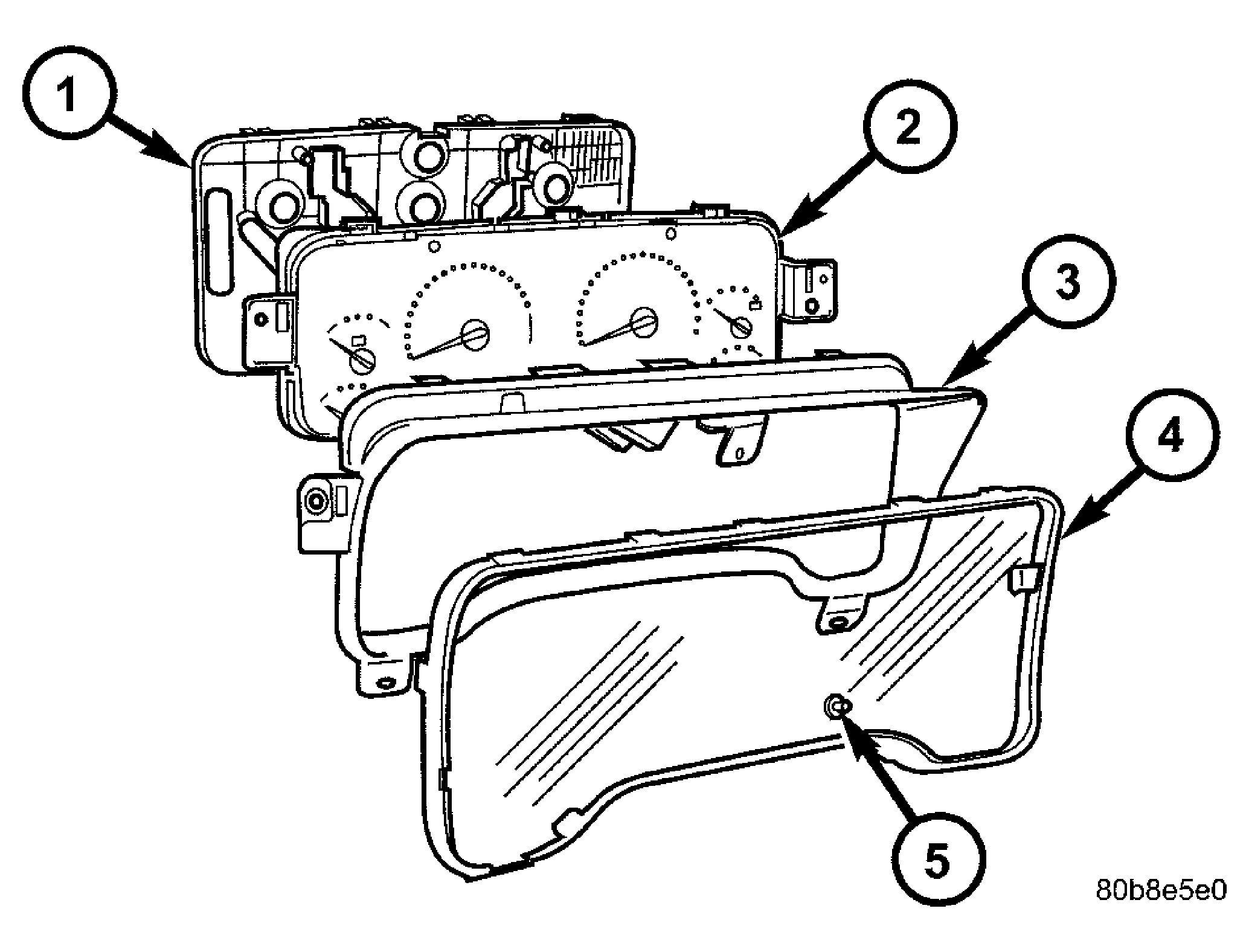

  1. Position the cluster lens over the cluster hood and mask unit on the face of the instrument cluster. See Figure. Be certain that the trip odometer reset switch button is aligned with and inserted into the reset button boot in the lens.
  2. Press firmly and evenly on the cluster lens to install it onto the instrument cluster housing.
  3. Work around the perimeter of the cluster lens making certain that each of the eight latches that secure the lens to the cluster mask and the cluster housing is fully engaged.
  4. Reinstall the instrument cluster onto the instrument panel. (Refer to ELECTRICAL/INSTRUMENT CLUSTER - INSTALLATION) .
  5. Reconnect the battery negative cable.
