Sentry Key Immobilizer Module - Black 6 Way

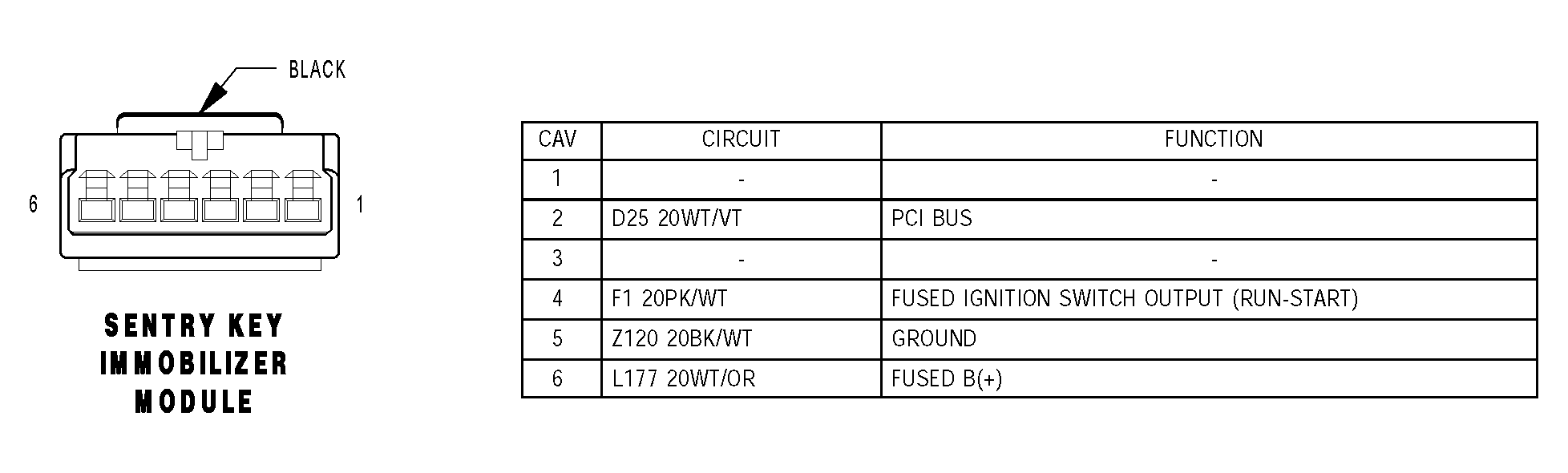

Fig 1: Identifying Sentry Key Immobilizer Module Connector Pinouts - Black 6 Way

G04550701

Courtesy of DAIMLERCHRYSLER CORP.
