Seat Belt Switch (Except LHD Export) - Black 2 Way

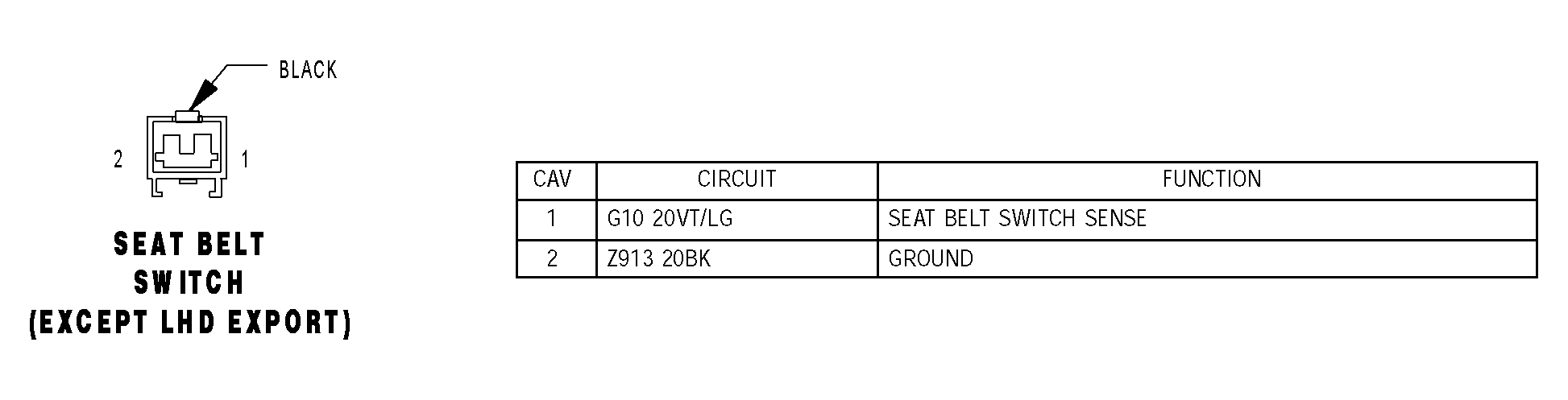

Fig 1: Identifying Seat Belt Switch Connector Pinouts (Except LHD Export) - Black 2 Way
G04550700Courtesy of DAIMLERCHRYSLER CORP.
