Rear Window Defogger Switch (Hard Top) - 4 Way

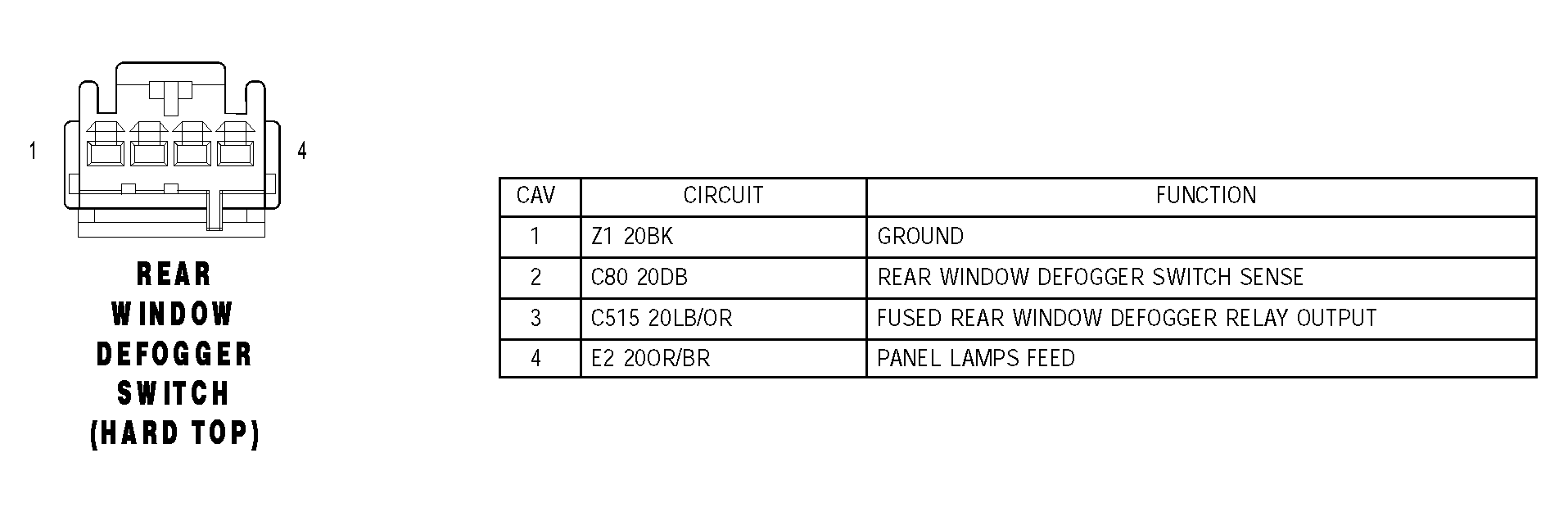

Fig 1: Identifying Rear Window Defogger Switch Connector Pinouts (Hard Top) - 4 Way

G04550697

Courtesy of DAIMLERCHRYSLER CORP.
