Powertrain Control Module C1 - Black/Black 38 Way

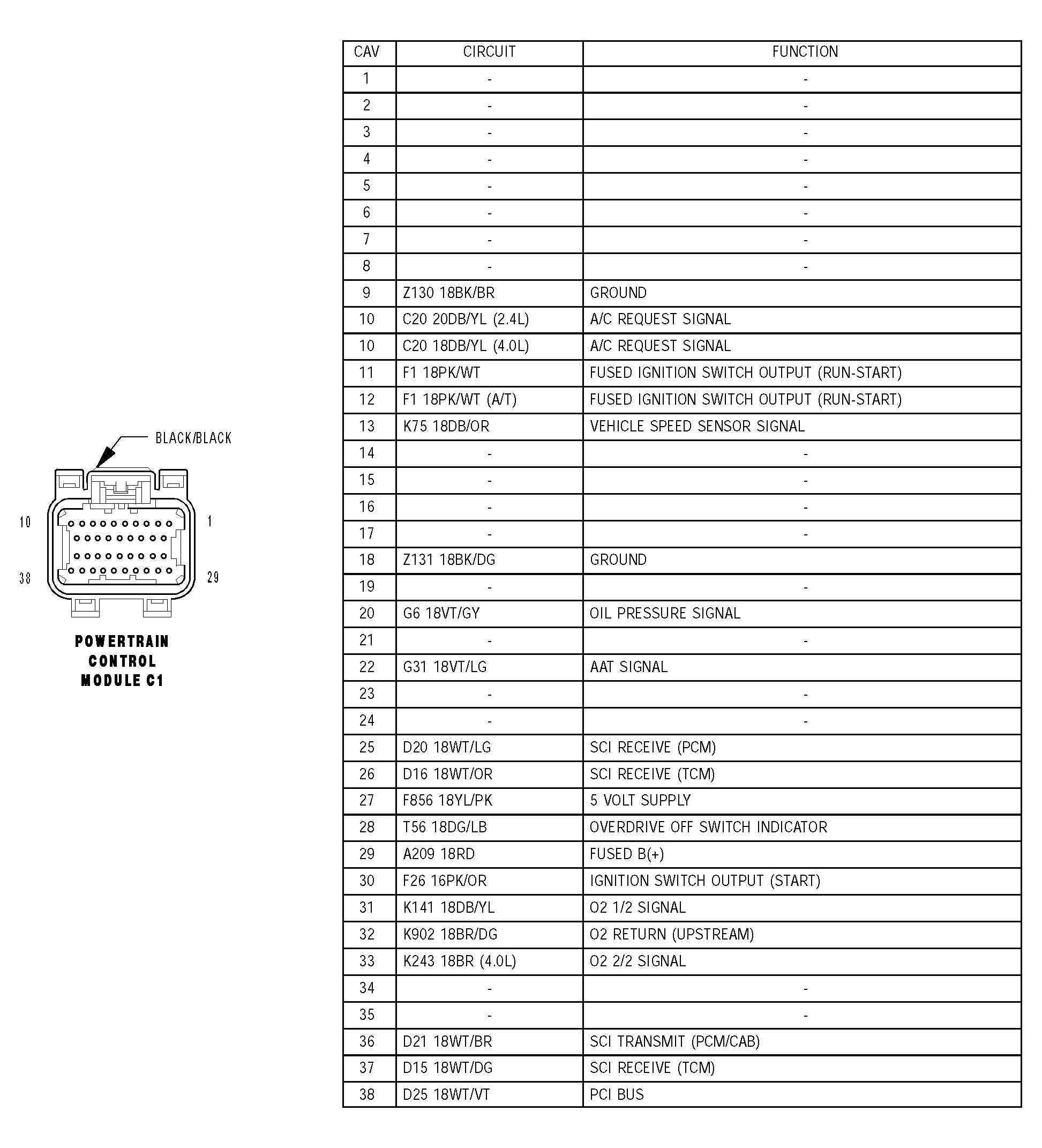

Fig 1: Identifying Powertrain Control Module C1 Connector Pinouts - Black/Black 38 Way

G04550692

Courtesy of DAIMLERCHRYSLER CORP.
