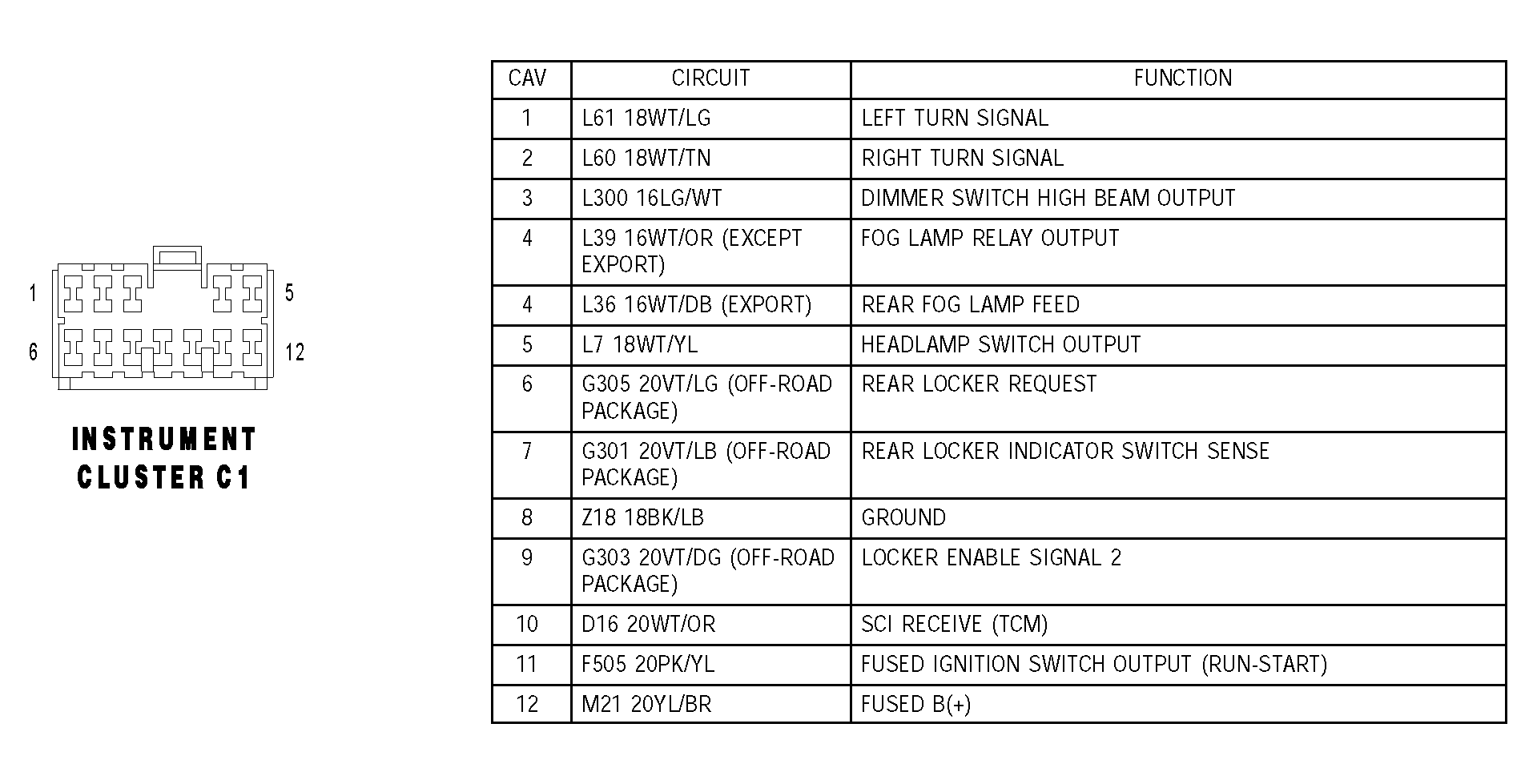

Home >> Jeep >> 2005 >> Wrangler X, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Connector PINOUTS >> Instrument Cluster C1 - 12 Way
