Front Locker Indicator Switch (Off-Road Package) - Black 2 Way

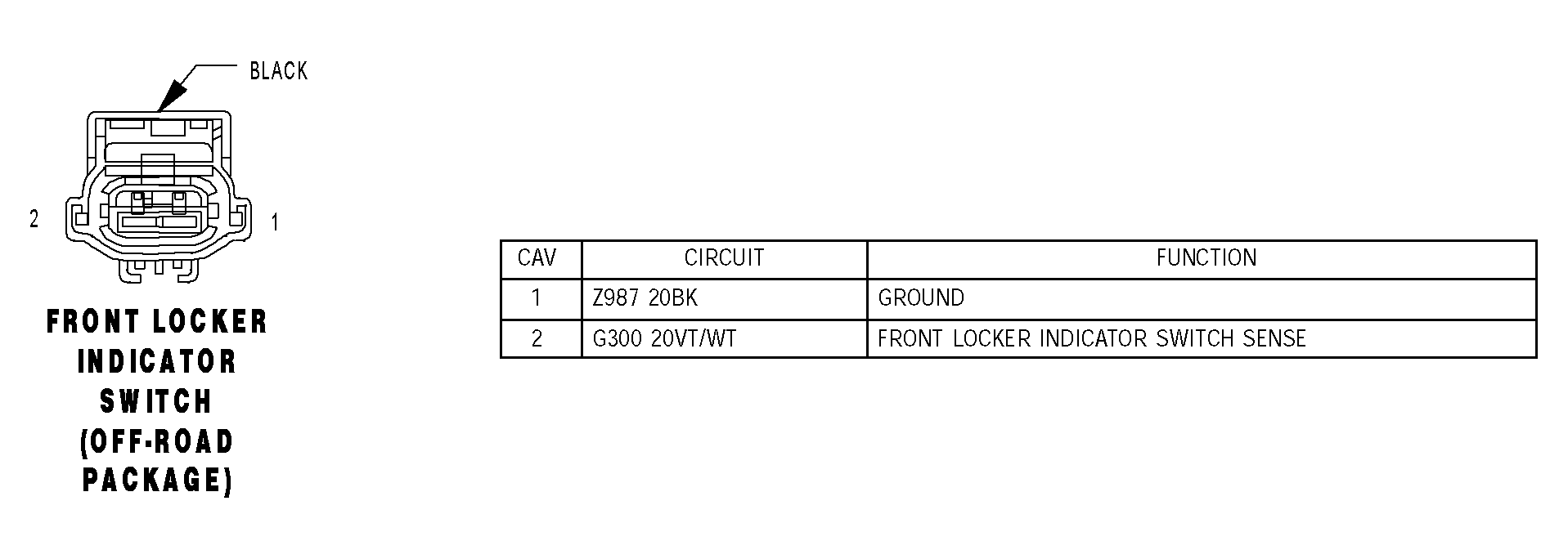

Fig 1: Identifying Front Locker Indicator Switch Connector Pinouts (Off-Road Package) - Black 2 Way

G04550678

Courtesy of DAIMLERCHRYSLER CORP.
