Driver Door Ajar Switch - Natural 3 Way

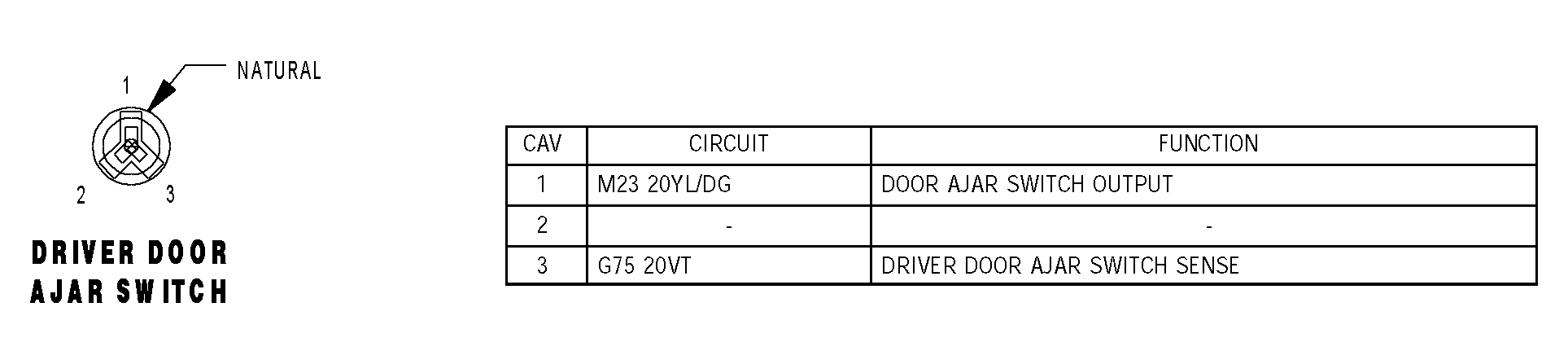

Fig 1: Identifying Driver Door Ajar Switch Connector Pinouts - Natural 3 Way

G04550677

Courtesy of DAIMLERCHRYSLER CORP.
