Driver Airbag Squib 1 - Yellow 2 Way

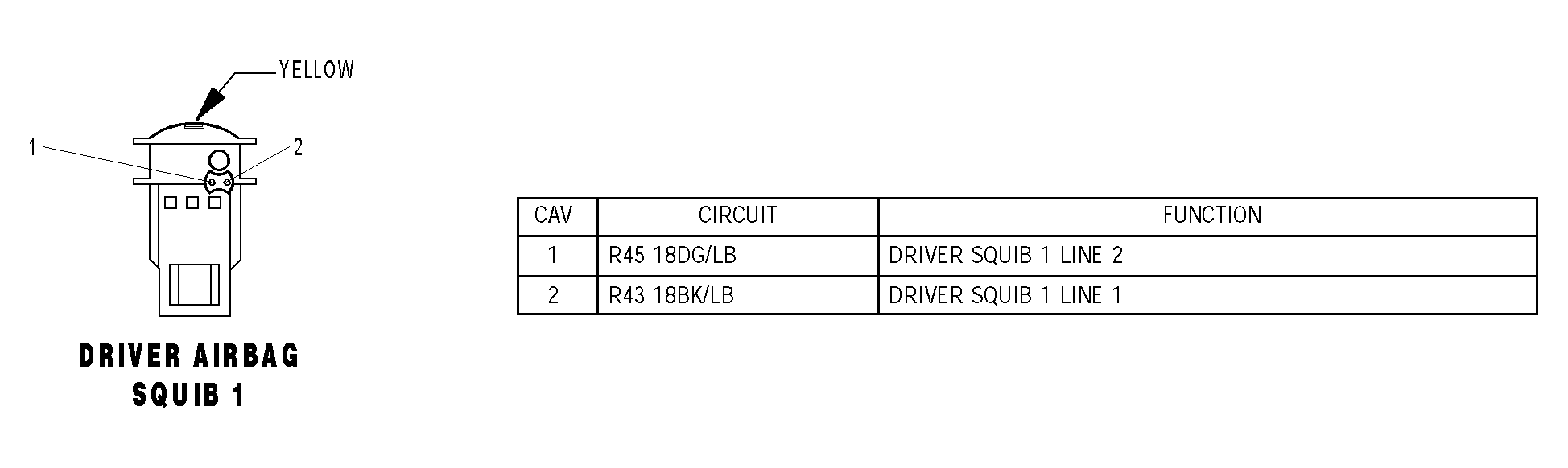

Fig 1: Identifying Driver Airbag Squib 1 Connector Pinouts - Yellow 2 Way

G04550676

Courtesy of DAIMLERCHRYSLER CORP.
