Controller Antilock Brake - 25 Way

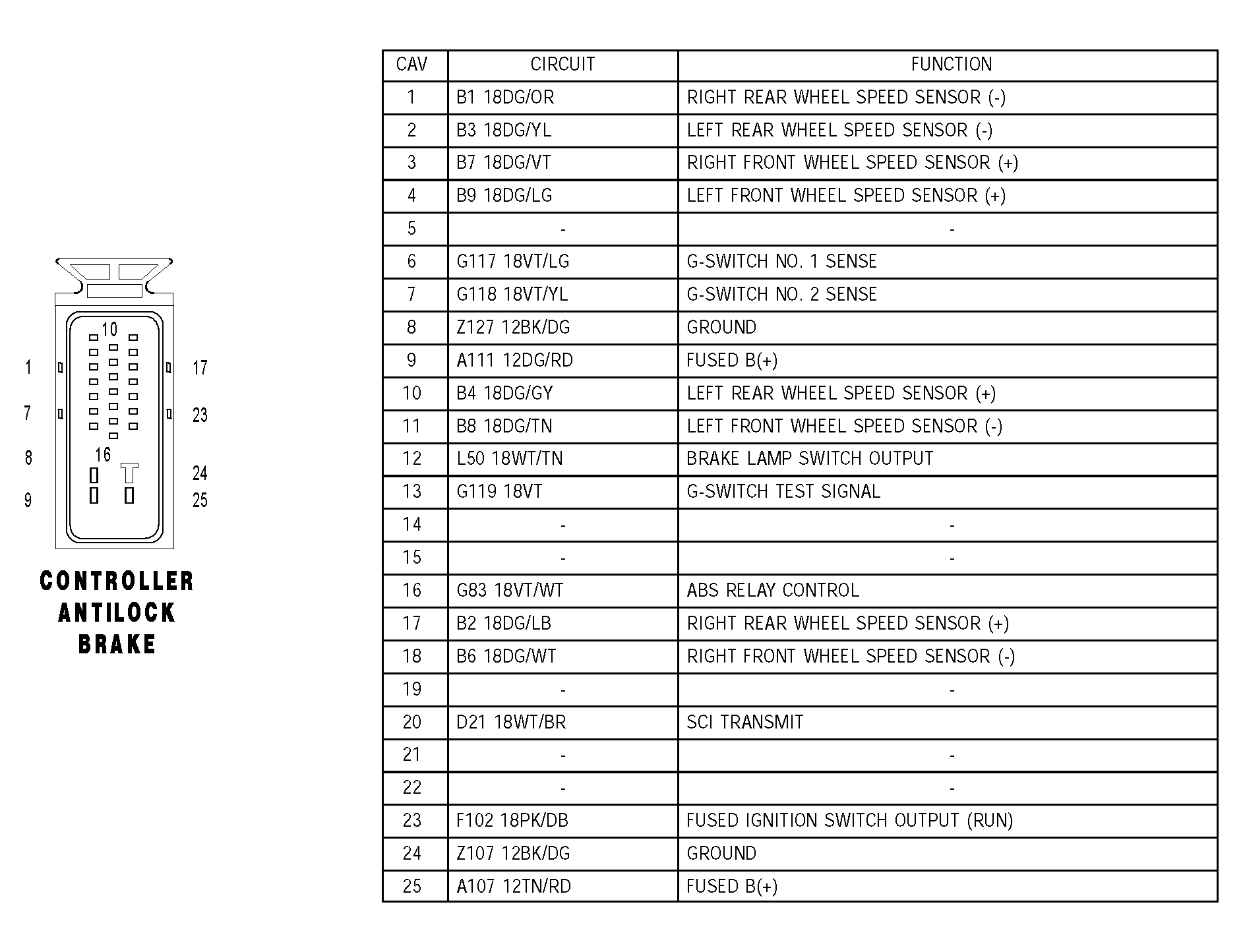

Fig 1: Identifying Controller Antilock Brake Connector Pinouts - 25 Way

G04550673

Courtesy of DAIMLERCHRYSLER CORP.
