Airbag Control Module - Yellow 22 Way

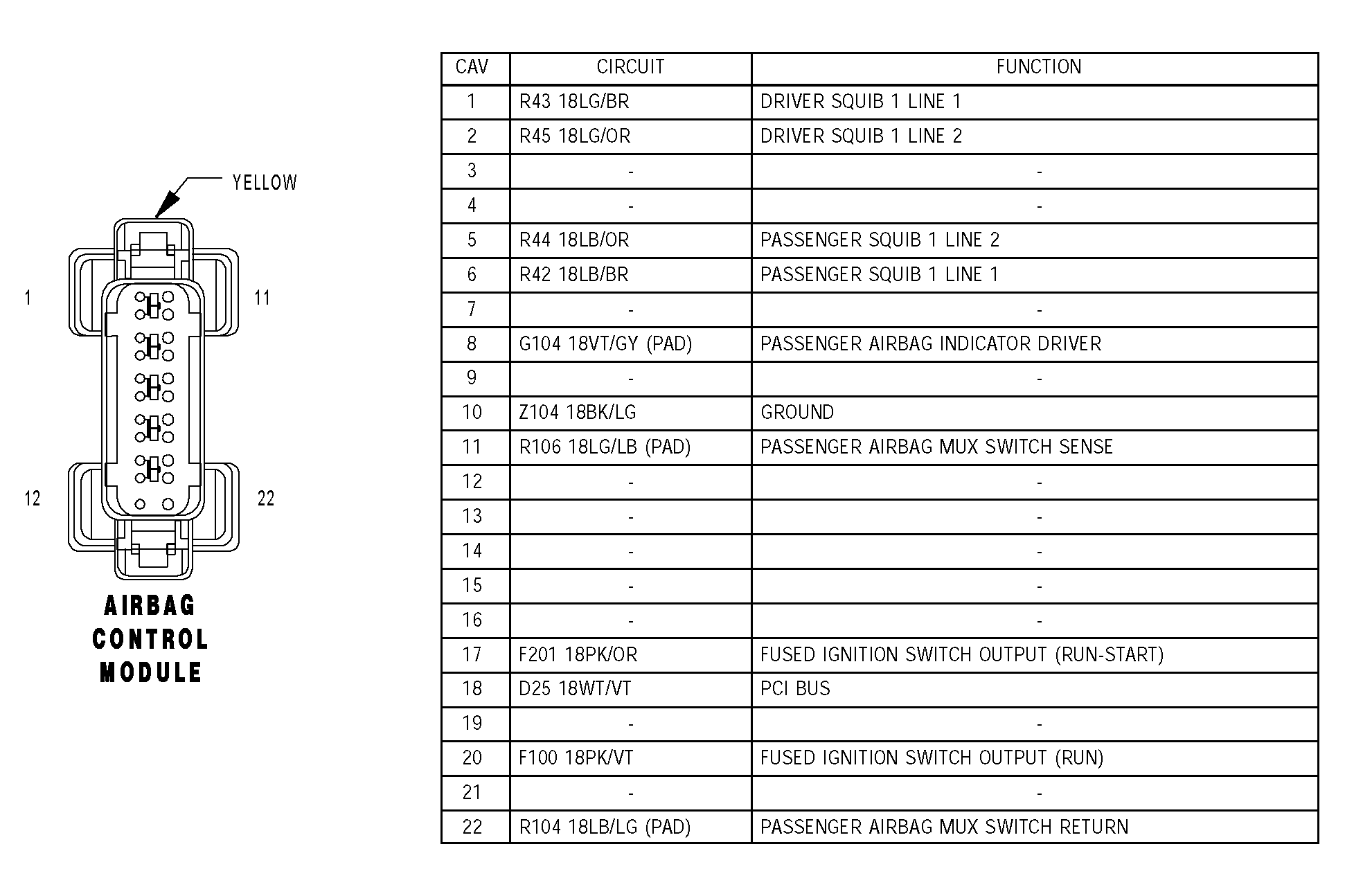

Fig 1: Identifying Airbag Control Module Connector Pinouts

G04550664

Courtesy of DAIMLERCHRYSLER CORP.
