Hood To Cowl Weatherstrip: Removal

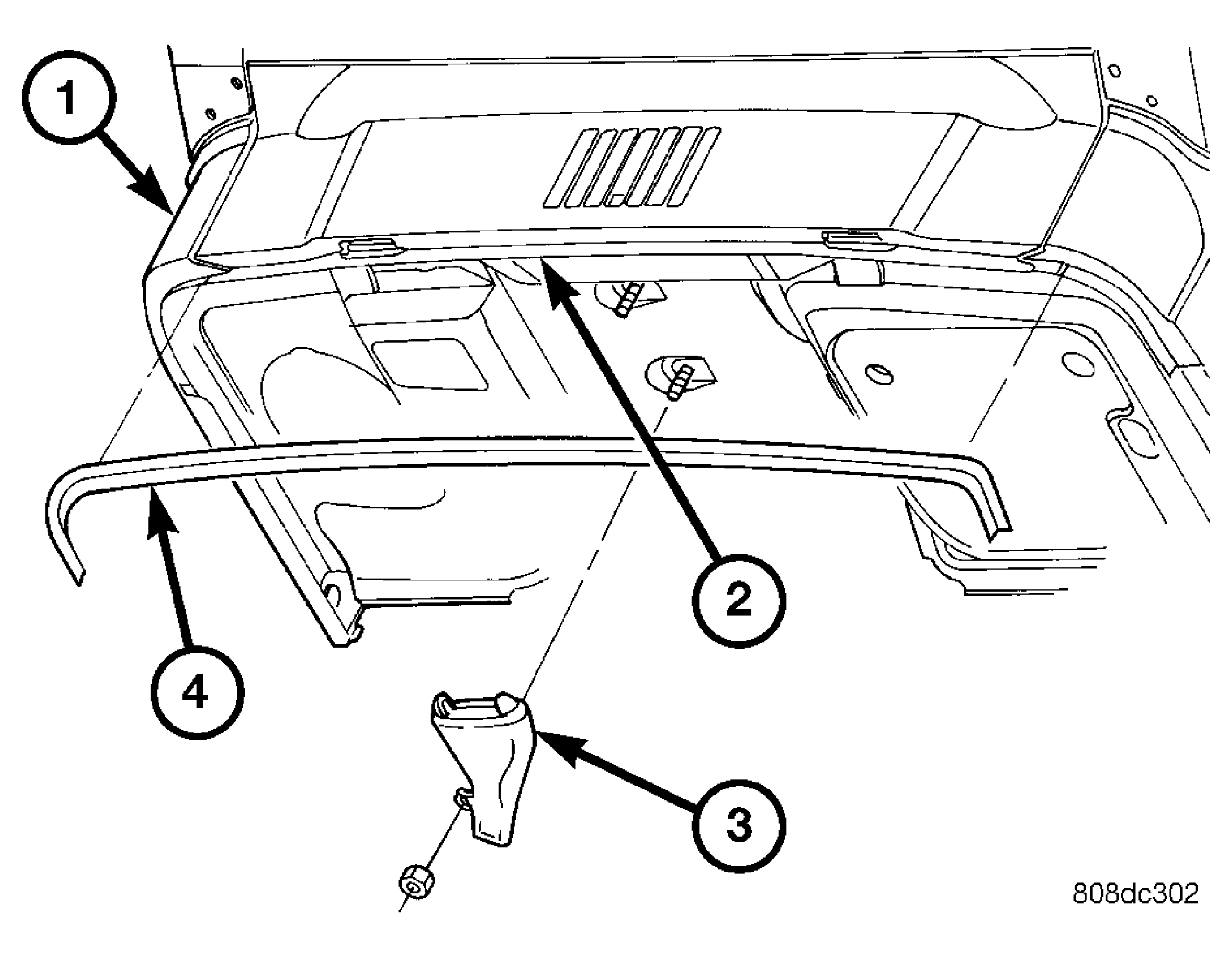

- Carefully separate the weatherstrip from the cowl flange. See Fig 1.
| 1 - COWL |
| 2 - COWL FLANGE |
| 3 - COWL PLENUM DRAIN |
| 4 - HOOD TO COWL WEATHERSTRIP |
| 1 - COWL |
| 2 - COWL FLANGE |
| 3 - COWL PLENUM DRAIN |
| 4 - HOOD TO COWL WEATHERSTRIP |
