Full Door Weatherstrip: Removal

NOTE: The upper portion of the weatherstrip is seated into a channel around the window opening frame. The lower portion of the weatherstrip is attached to the door with push-in fasteners.

Peel the weatherstrip from the channel.
Remove the push-in fasteners attaching the weatherstrip to the door. See Fig 1.

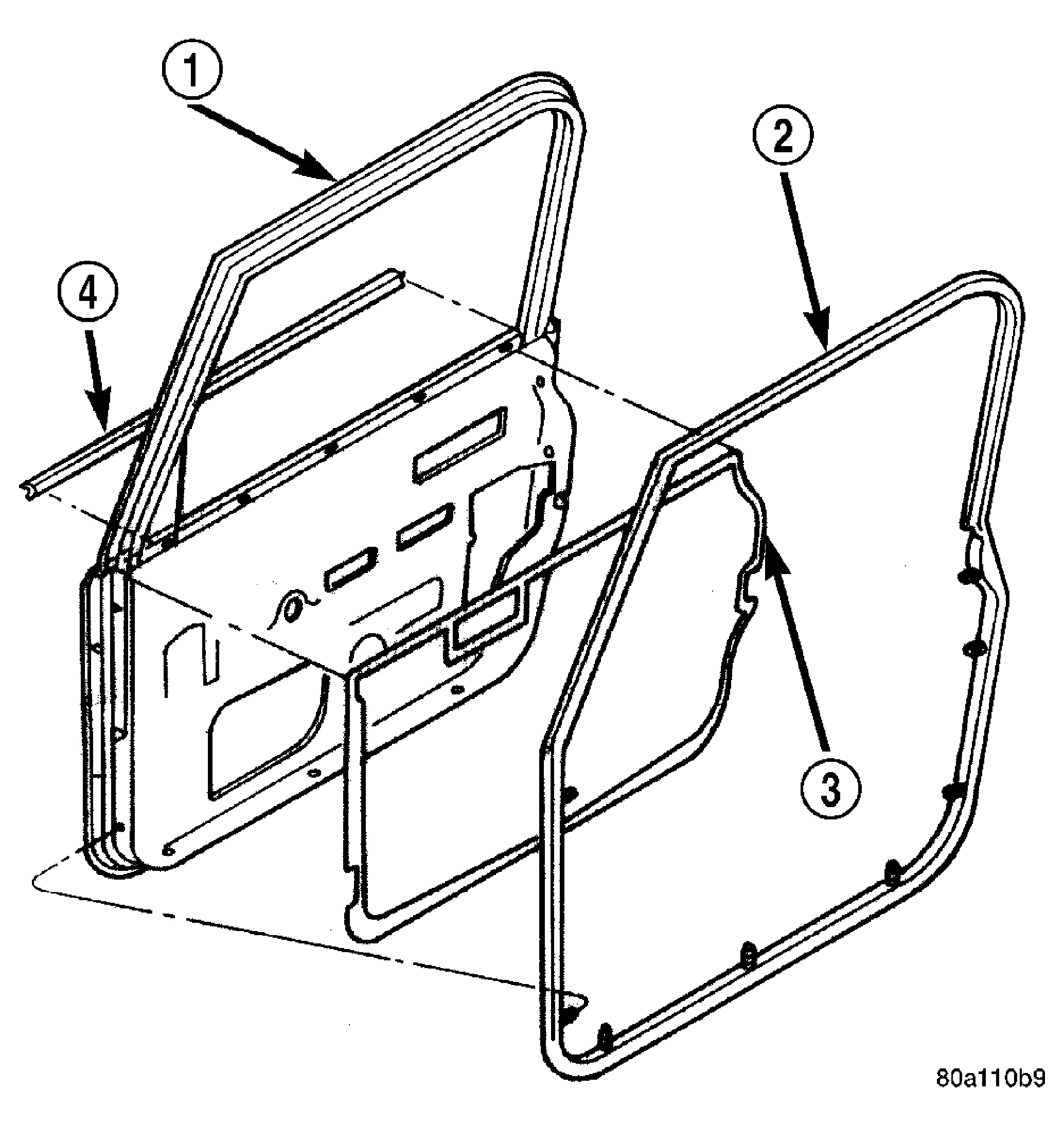

Fig 1: FULL DOOR WEATHERSTRIP

Courtesy of DAIMLERCHRYSLER CORP.

1 - FULL DOOR

2 - WEATHERSTRIP

3 - WATERDAM

4 - OUTER DOOR BELT SEAL
