Tailgate Outside Handle: Removal

  1. Remove the latch from the tailgate. (Refer to BODY/TAILGATE/LATCH - REMOVAL)
  2. Remove the screws attaching the outside handle to the tailgate. See Fig 1.
  3. Separate the outside handle and seal from the tailgate.

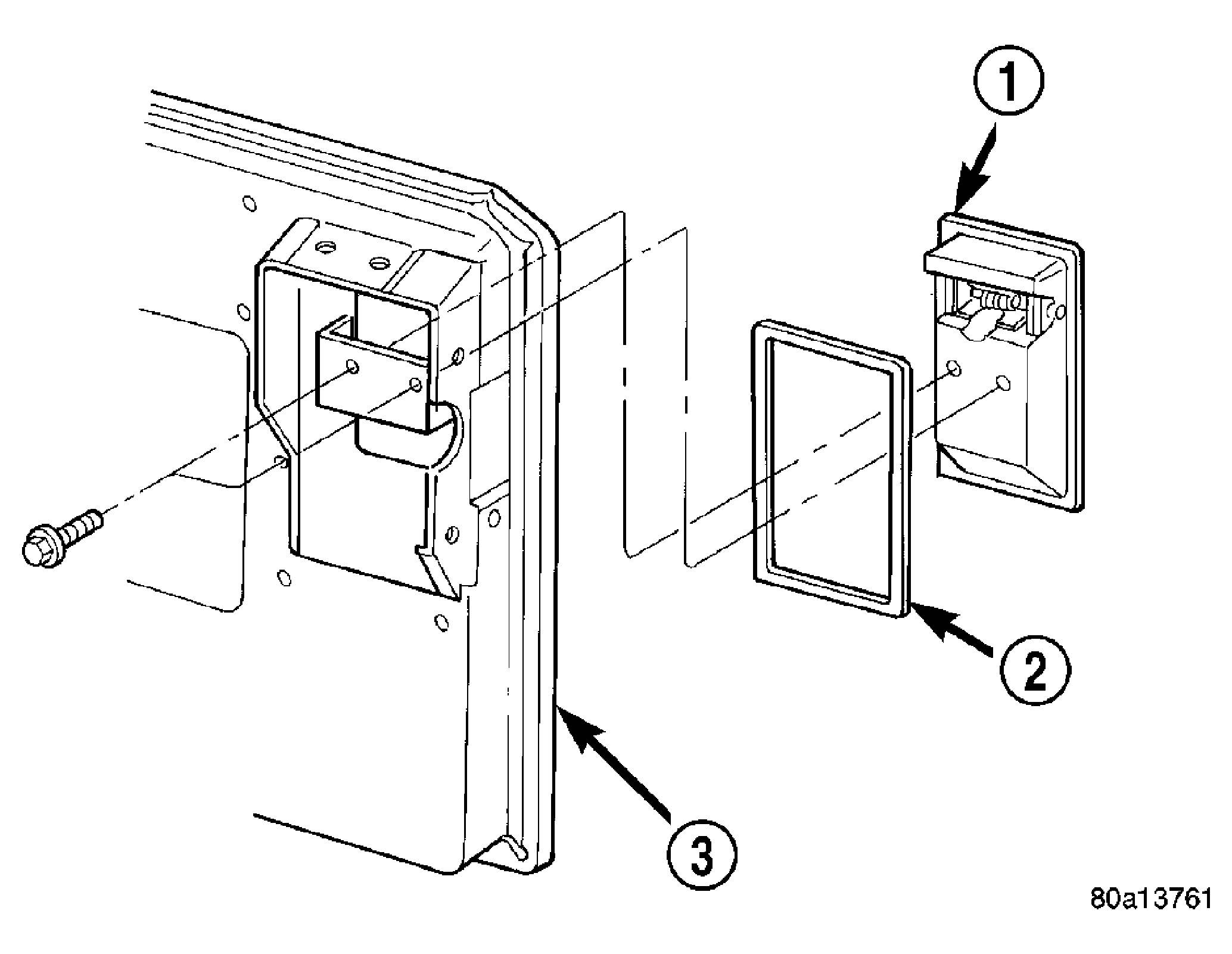

Fig 1: TAILGATE OUTSIDE HANDLE
GC0030565Courtesy of DAIMLERCHRYSLER CORP.
1 - OUTSIDE HANDLE
2 - SEAL
3 - TAILGATE
