Rear Seat Cushion Cover: Removal

Remove the rear seat back. (Refer to BODY/SEATS/REAR SEAT BACK - REMOVAL)
Un-zip the cover. See Fig 1.
Release the J-clips. See Fig 2.
Roll the cover from seat cushion and separate from the seat cushion frame.
Remove the hogrings from the foam to cover.

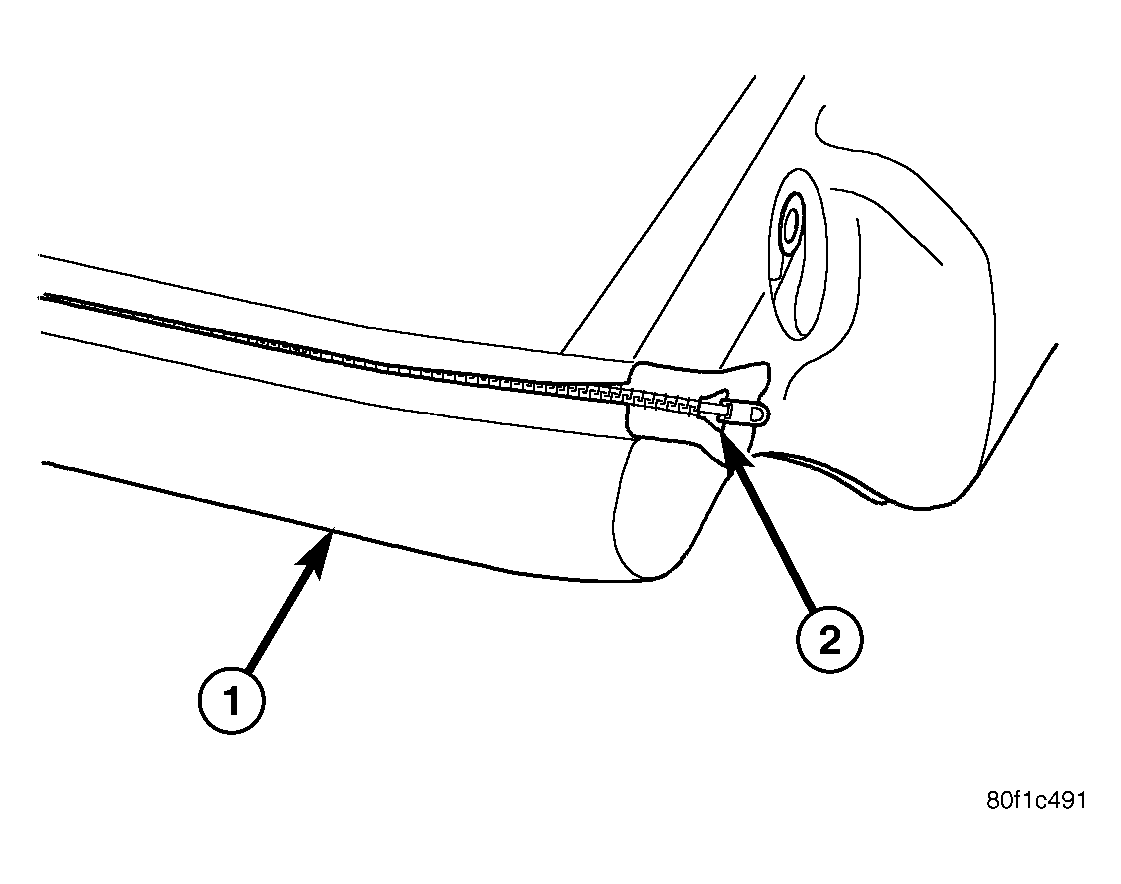

Fig 1: SEAT CUSHION COVER

GC0030670

Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAT CUSHION

2 - COVER ZIPPER

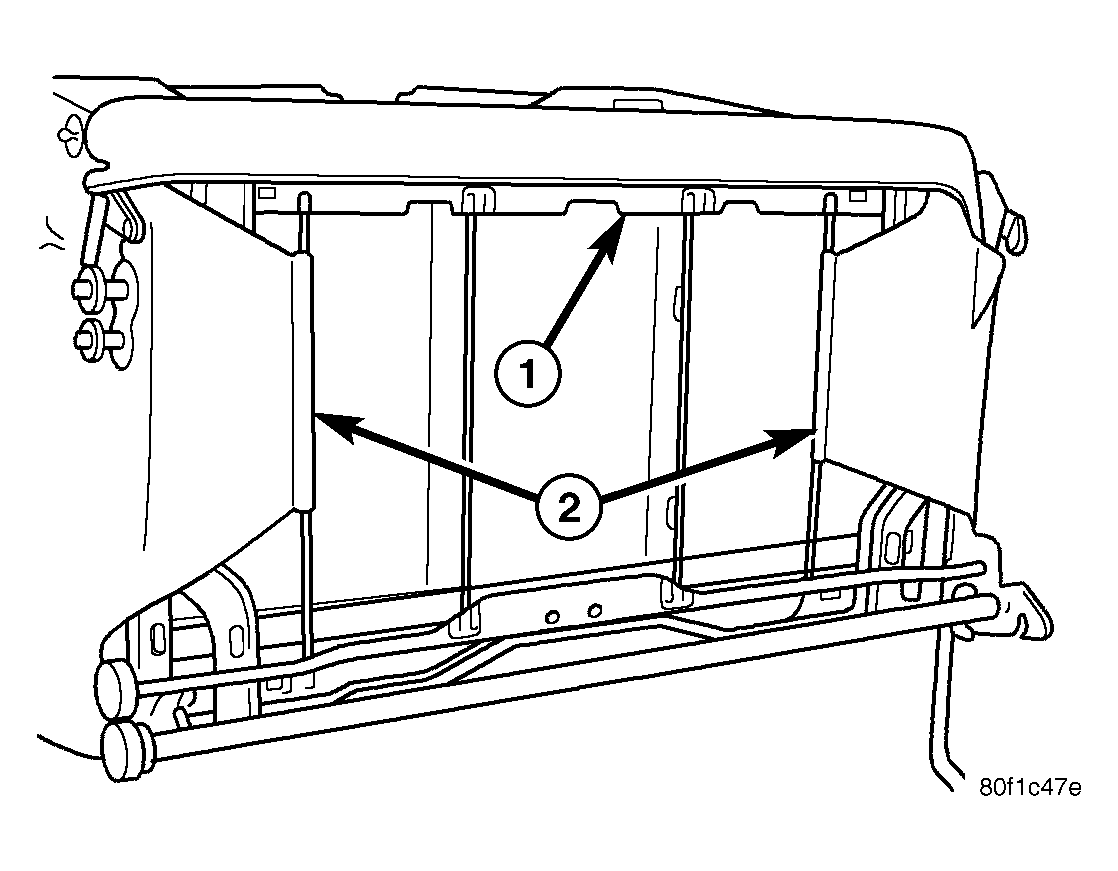

Fig 2: SEAT CUSHION

GC0030669

Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAT CUSHION FRAME

2 - J-STRAPS
