Front Seat Back Recliner Cable: Removal

  1. Remove seat cushion cover. (Refer to BODY/SEATS/SEAT CUSHION COVER - REMOVAL)
  2. Disengage cable from recliner release handle and. See Fig 1 and Fig 2.
  3. Route cable through seat cushion pad.
  4. Disengage cable from mounting bracket.

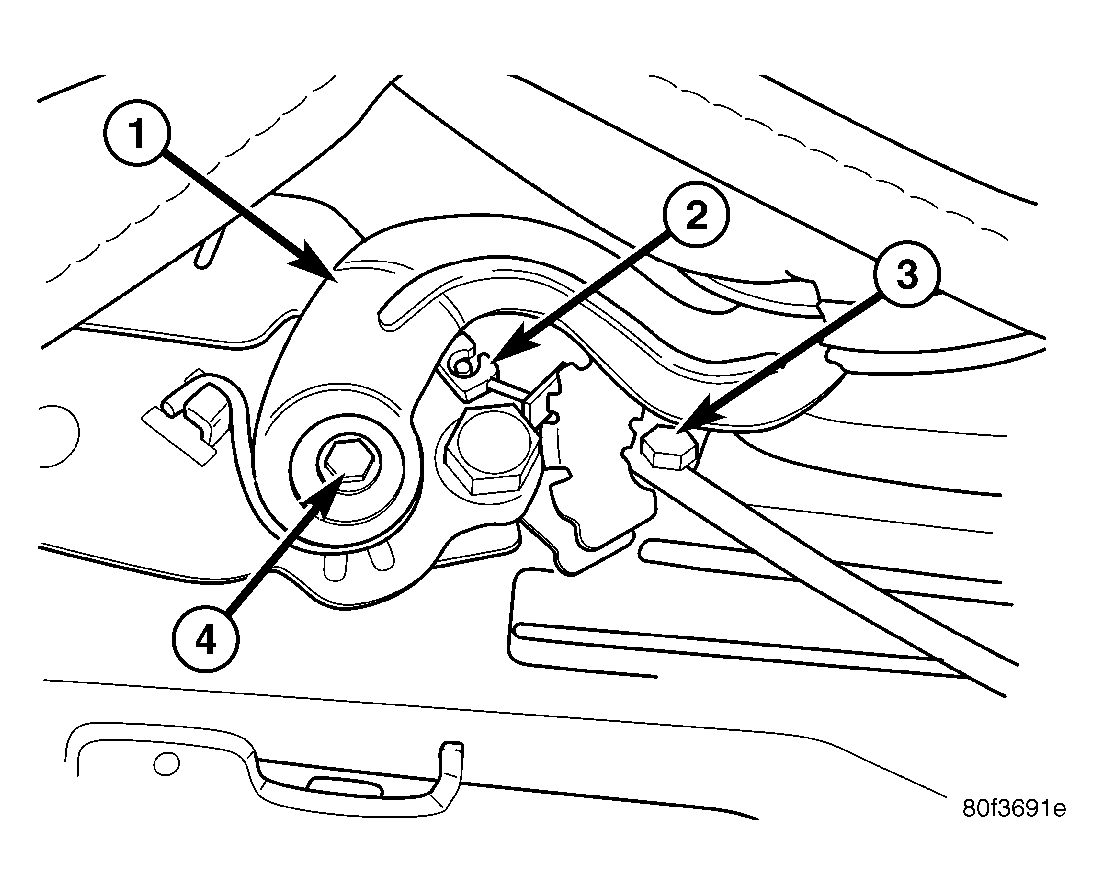

Fig 1: RECLINER HANDLE/CABLE
GC0030654Courtesy of DAIMLERCHRYSLER CORP.
1 - RECLINER HANDLE
2 - RECLINER CABLE END
3 - RECLINER CABLE
4 - RECLINER HANDLE BOLT

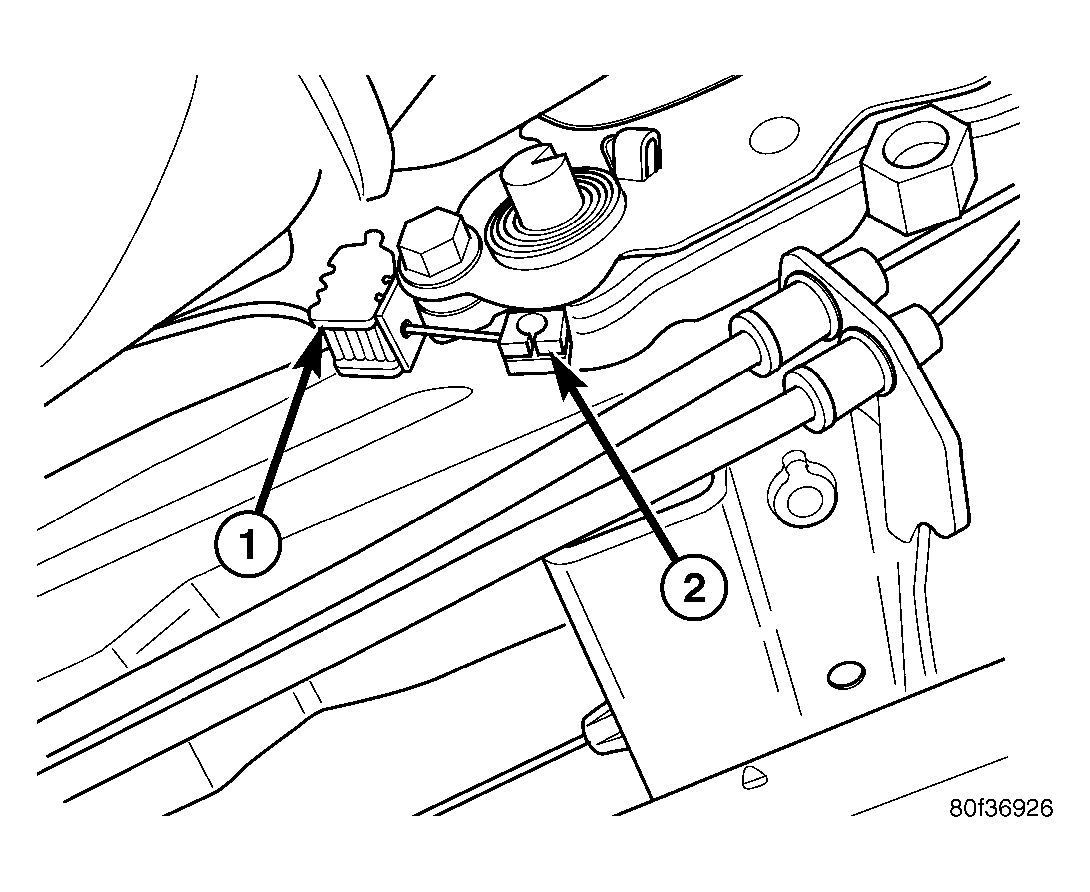

Fig 2: RECLINER CABLE END
GC0030655Courtesy of DAIMLERCHRYSLER CORP.
1 - RECLINER CABLE
2 - RECLINER CABLE END
