Door Opening Frame: Removal

Vehicles equipped with a soft top require a door opening frame to complete the seal for the soft top door assembly.

1. Lower the top to the rearward position.
2. Turn the knobs located on top of the door opening frame counter clockwise and remove completely. See Fig 1.
3. Pull door opening frame outward and up. Separate from vehicle.

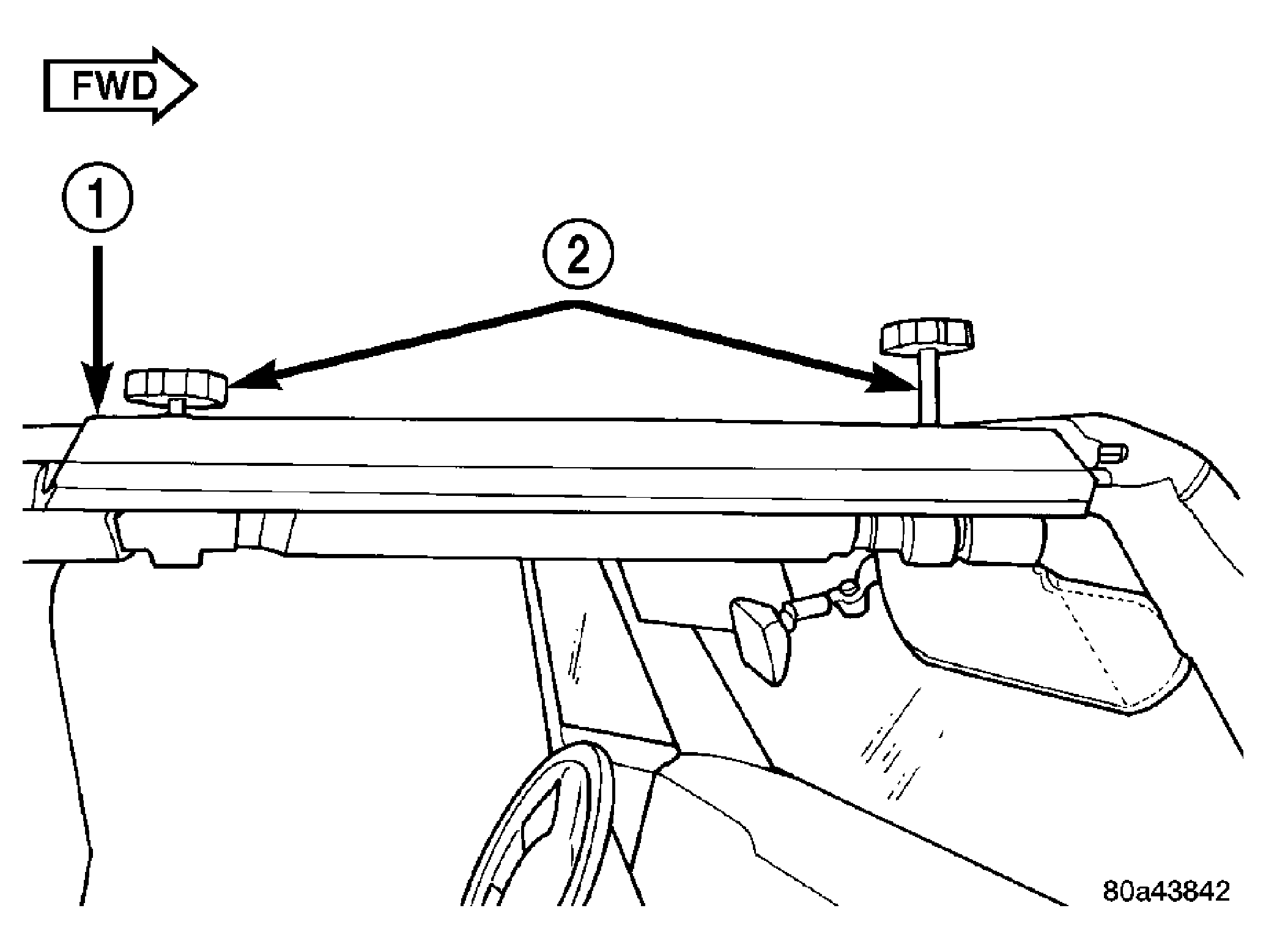

Fig 1: DOOR OPENING FRAME

Courtesy of DAIMLERCHRYSLER CORP.
