Windshield Header: Removal

Position both sun visors out.
Using a trim stick C-4755 or equivalent, separate the retaining clips and remove the trim from behind the a-pillar trim panels. See Fig 1.

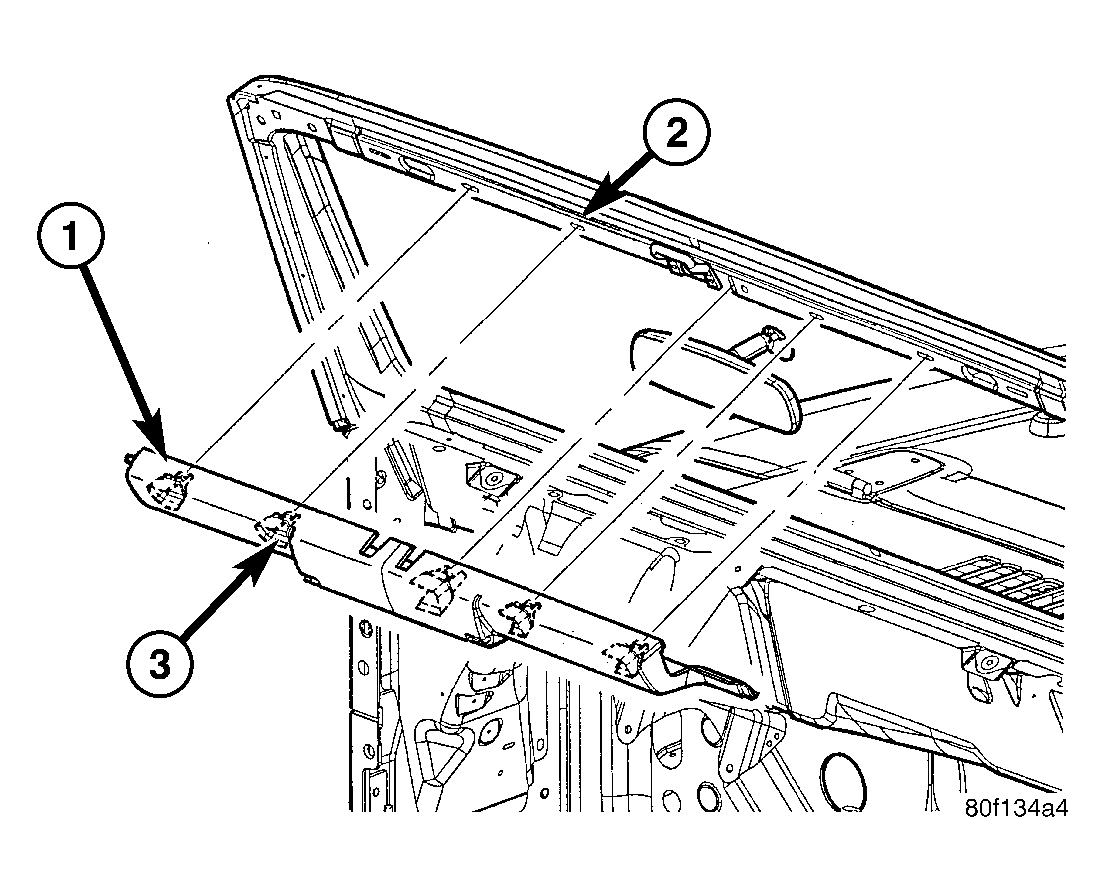

Fig 1: WINDSHIELD HEADER MOLDING

Courtesy of DAIMLERCHRYSLER CORP.

1 - WINDSHIELD HEADER TRIM

2 - WINDSHIELD FRAME

3 - SPRING CLIPS (4)
