Body - Interior & Exterior: Interior: SUNVISOR: Removal

  1. Remove the screws that attach the sunvisor arm support brackets to the windshield frame. See Fig 1.
  2. Remove the sunvisor from the windshield frame.

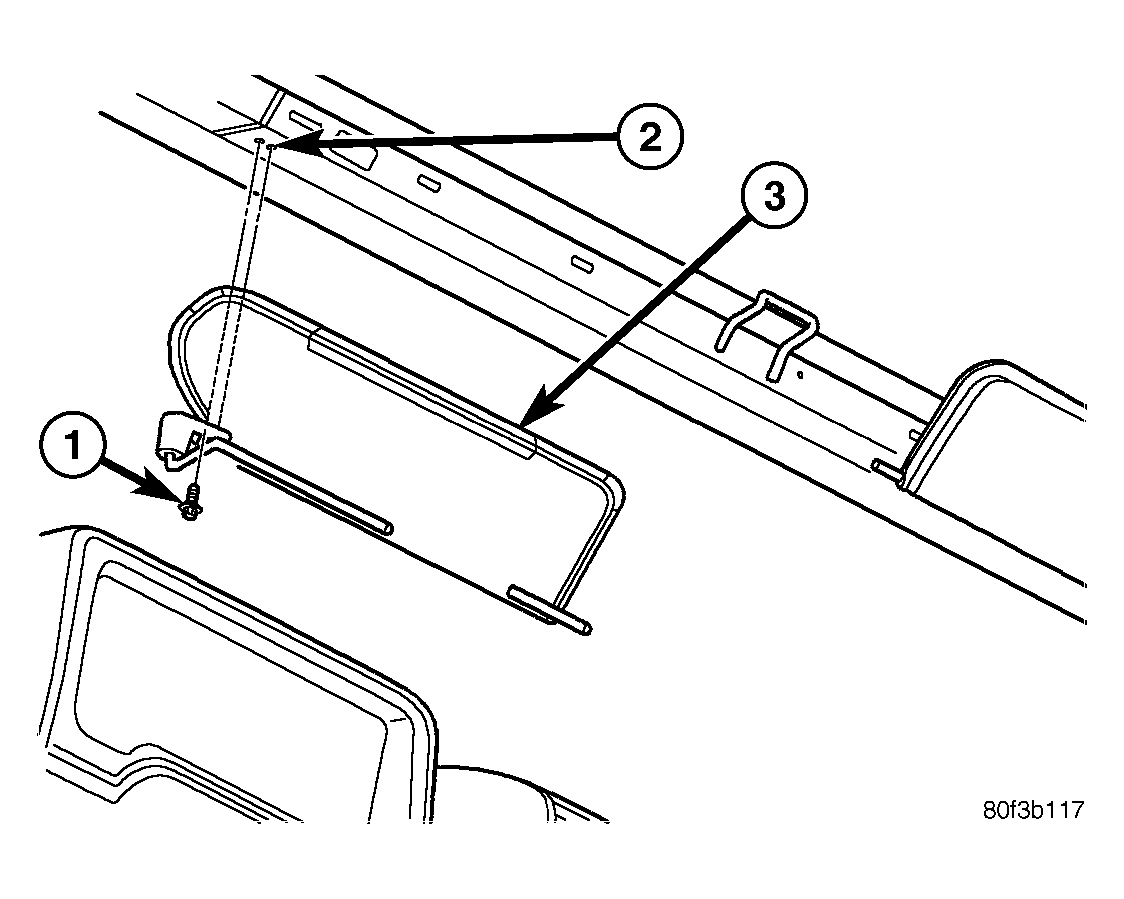

Fig 1: SUNVISOR
GC0030628Courtesy of DAIMLERCHRYSLER CORP.
1 - SCREWS (2)
2 - WINDSHIELD FRAME
3 - VISOR
