Console Lock Cylinder: Removal

Open the console cover.
Remove the screw that attaches the retainer to the lock and then remove the retainer from the lock. See Fig 1.
Remove the lock cylinder from the console cover.

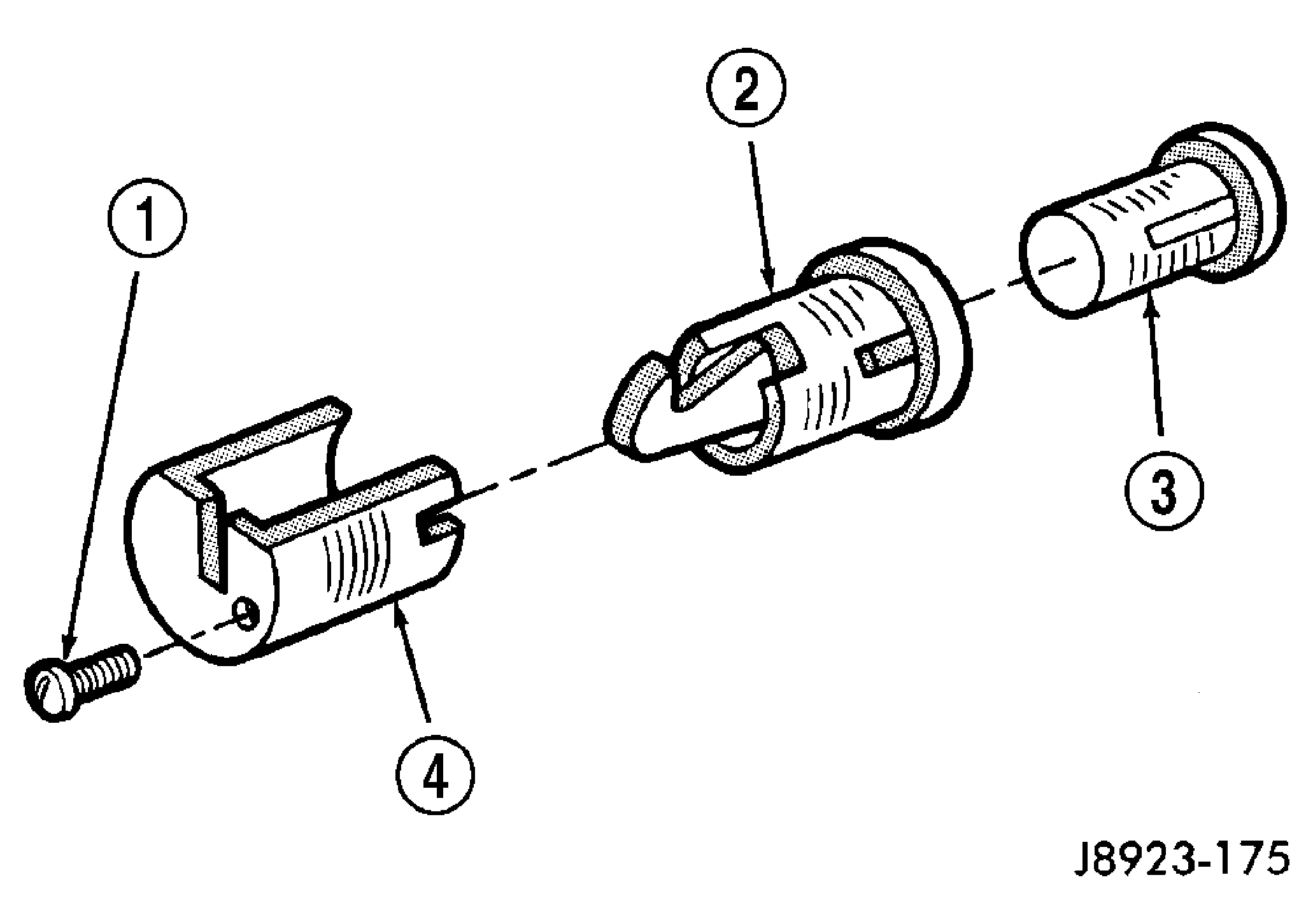

Fig 1: CONSOLE LOCK CYLINDER

Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING SCREW

2 - LOCK

3 - LOCK CYLINDER

4 - RETAINER
