A-Pillar Trim: Removal

  1. Remove the a-pillar trim screws. See Fig 1.
  2. Starting at the bottom, pull off the trim and remove.

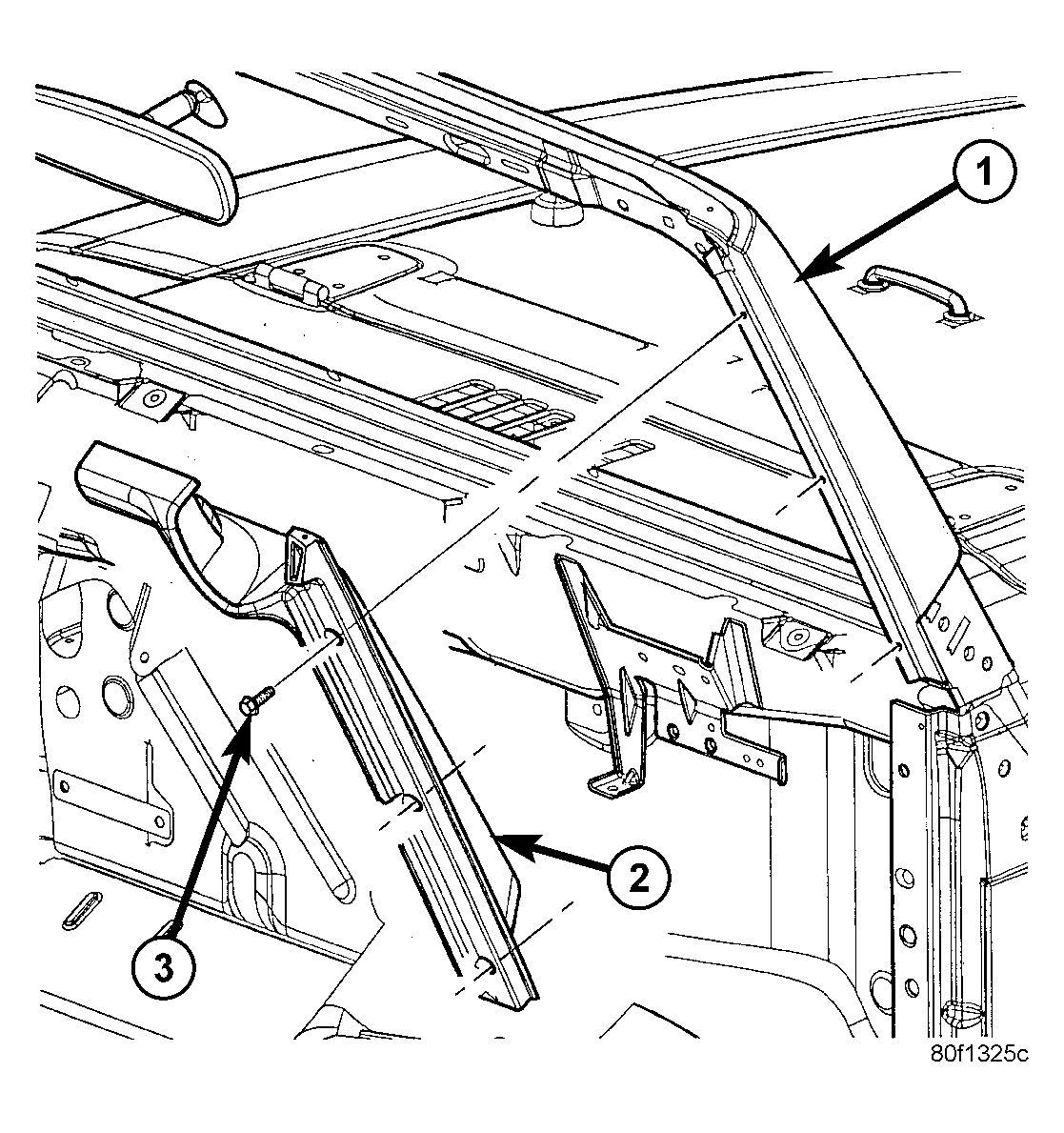

Fig 1: A-PILLAR TRIM
GC0030638Courtesy of DAIMLERCHRYSLER CORP.
1 - WINDSHIELD FRAME
2 - A-PILLAR TRIM
3 - SCREWS (3)
