Full Door: Latch: Removal
- Remove trim panel. (Refer to BODY/FULL DOOR/TRIM PANEL - REMOVAL)
- Roll window to full upward position.
- Disconnect the lock cylinder to latch rod. See Fig 1
- Disconnect the lock knob to latch rod.
- Disconnect the outside handle to latch release rod.
- Remove the screws attaching the latch to the door.
- Lower the latch in the door and disconnect the inside handle to latch rod.
- Remove the latch from the door.

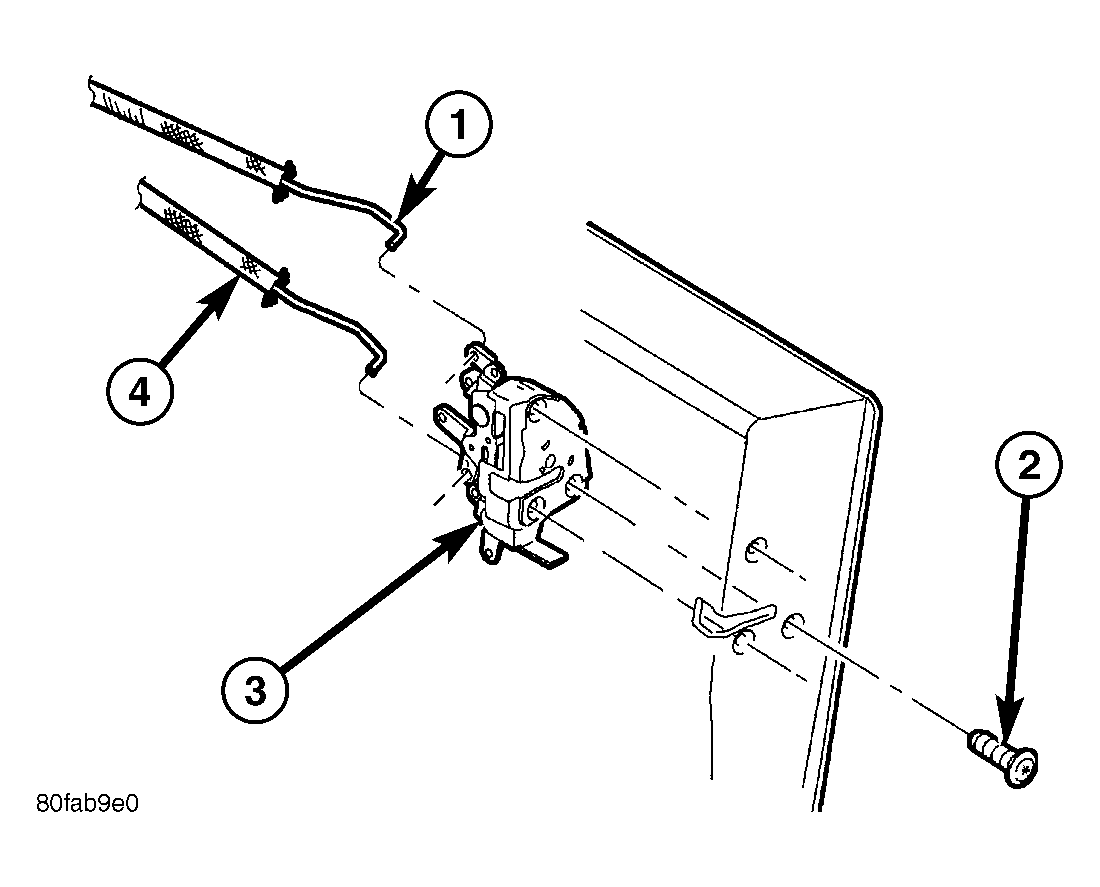

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - RELEASE ROD |
| 2 - SCREWS (3) |
| 3 - LATCH ASSEMBLY |
| 4 - LOCK ROD |
