Side Step: Removal

Remove the bolts that attach the side step to the frame. See Fig 1.
Tilt the step down and disengage the tabs from the frame slots.

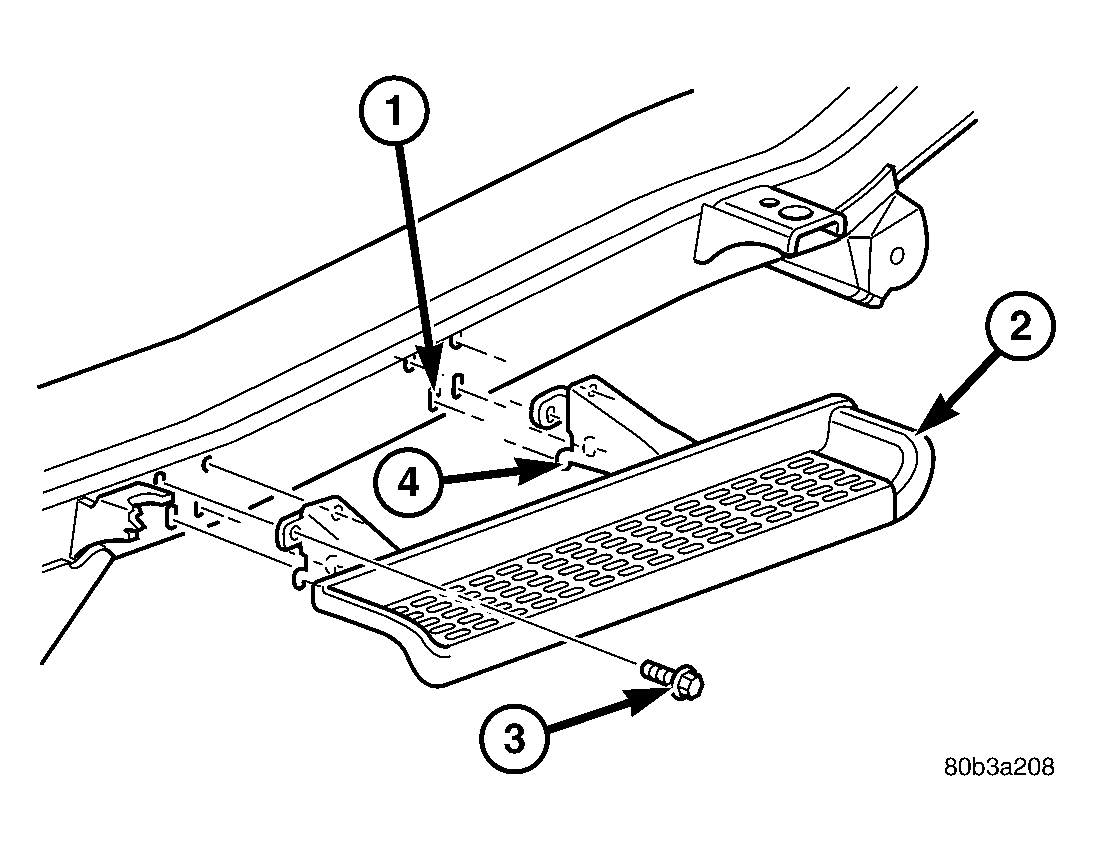

Fig 1: SIDE STEP

GC0030602

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRAME SLOTS

2 - SIDE STEP

3 - BOLTS

4 - STEP MOUNTING TABS
