Body Side Guard: Removal
- Remove the bolts from the lower support tabs. See Fig 1.
- Remove the side bolts and remove the side guard. See Fig 2.

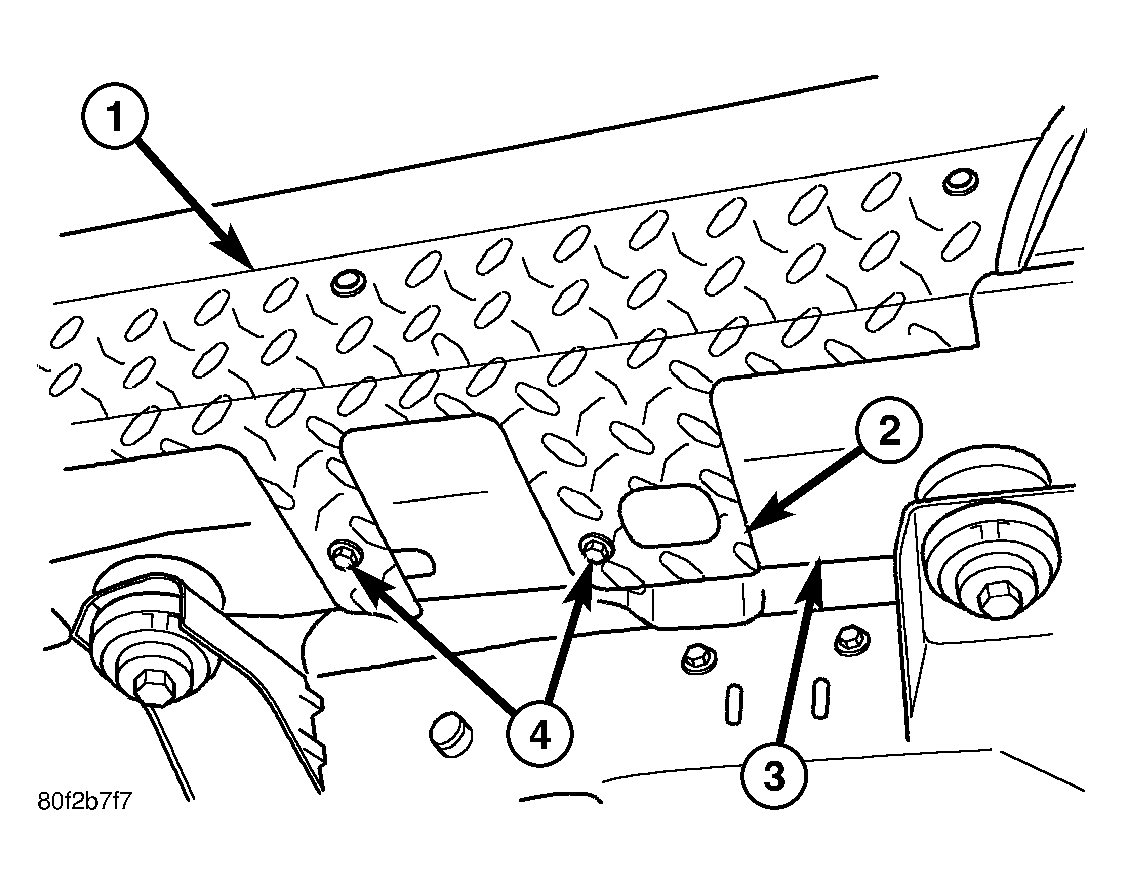

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - BODY SIDE GUARD |
| 2 - SUPPORT TABS (5) |
| 3 - BODY FLOOR SILL |
| 4 - BOLTS (5) |

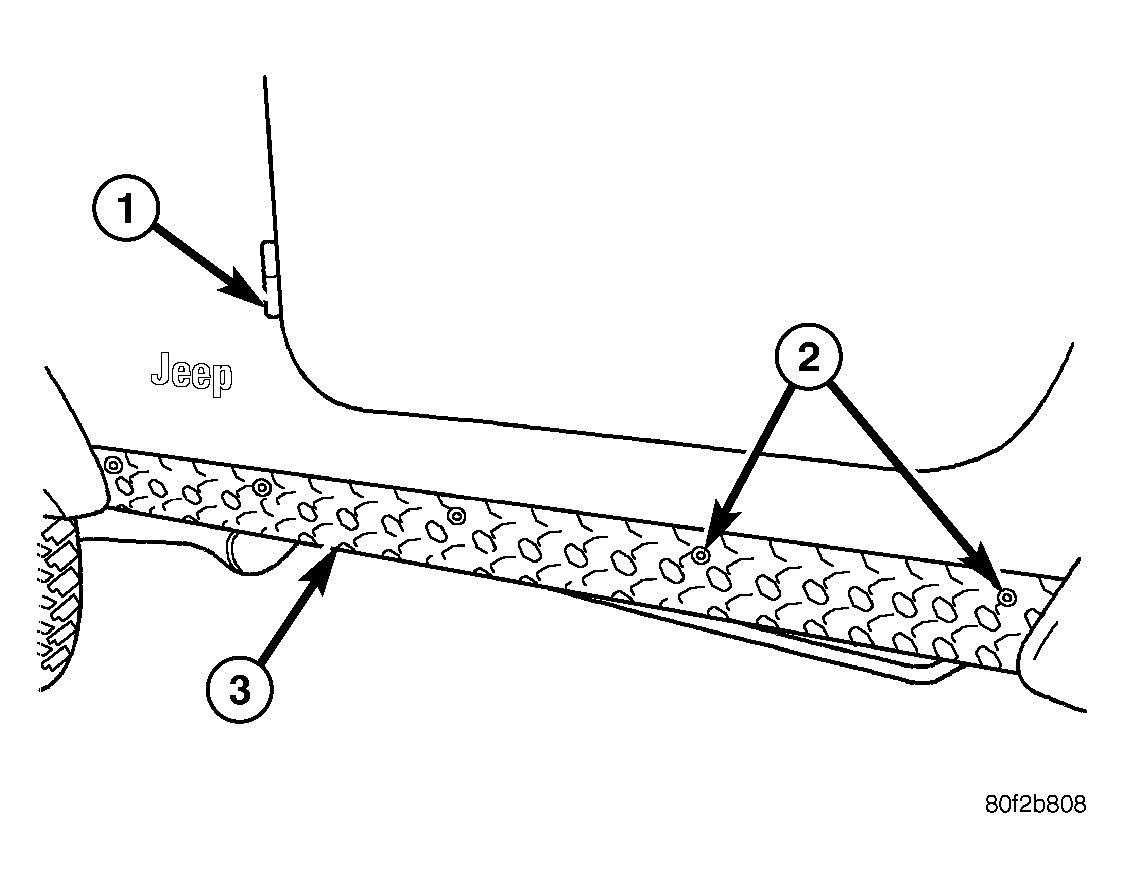

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - DOOR |
| 2 - SIDE GUARD BOLTS (5) |
| 3 - BODY SIDE GUARD |
