Wheelhouse Splash Shield: Removal

Remove the plastic push pins that attach the splash shield to the wheelhouse. See Fig 1.
Remove the push-in fasteners attaching the splash shield to the wheelhouse. (The push-in fasteners are molded into the splash shield.)
Remove the splash shield from the wheelhouse.

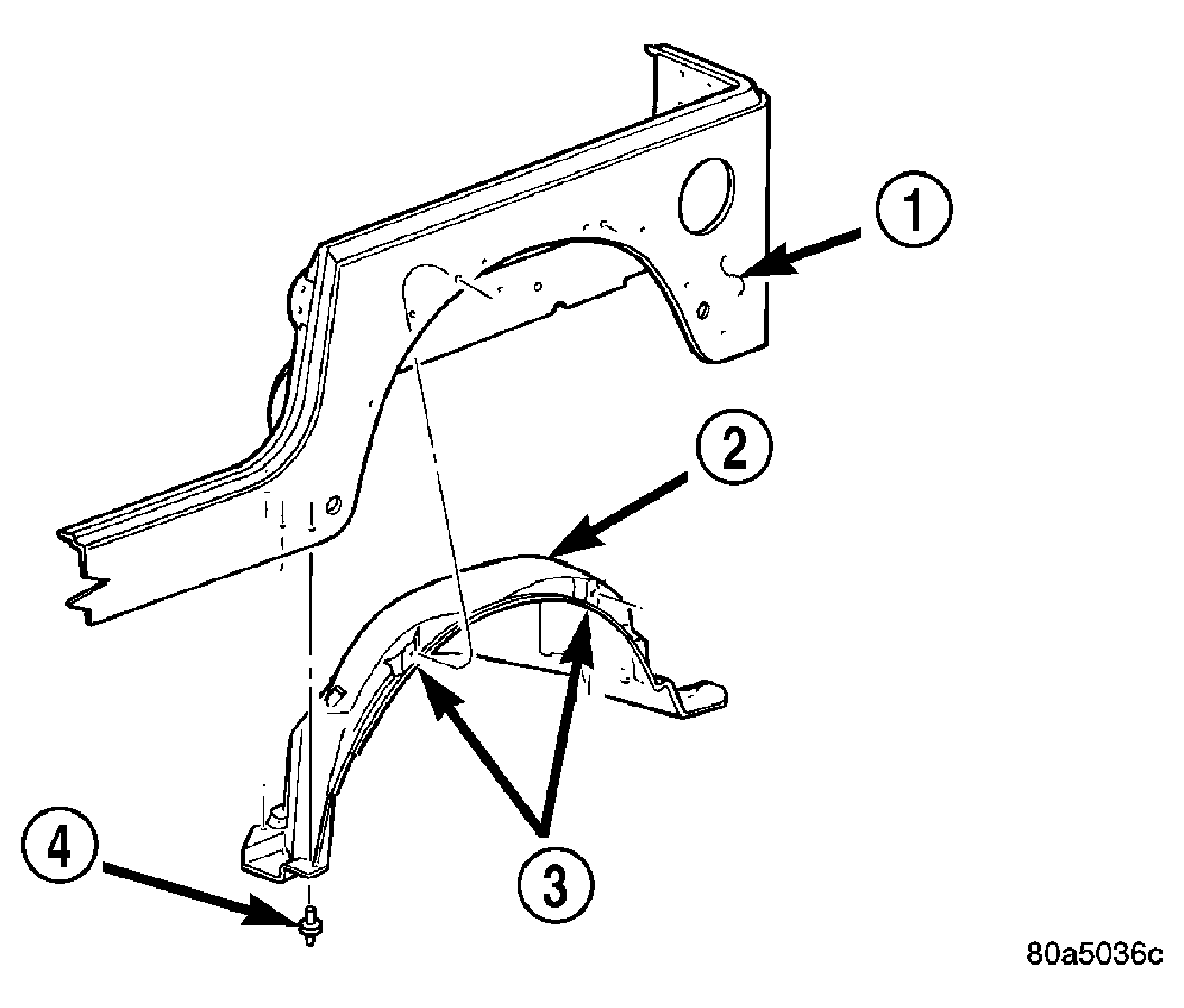

Fig 1: Wheelhouse Splash Shield

Courtesy of DAIMLERCHRYSLER CORP.

1 - BODY

2 - WHEELHOUSE SPLASH SHIELD

3 - PUSH-IN FASTENERS

4 - RIVET
