Structural Adhesive Locations: Specifications

INDEX

DESCRIPTION	FIGURE
BODY SIDE APERTURE	Fig 1.
WHEELHOUSE	Fig 2.
DOOR OUTER PANELS	Fig 3.
REAR FLOOR PAN	Fig 4.
HOOD ASSEMBLY	Fig 5.
TAIL GATE	Fig 6.
BODY SIDE/WHEELHOUSE LONG WHEEL BASE (LWB)	Fig 7.
REAR FLOOR LWB	Fig 8.
UNDERBODY LWB	Fig 9.
BODY SIDE COMPLETE LWB	Fig 10.
BODY COMPLETE LWB	Fig 11.

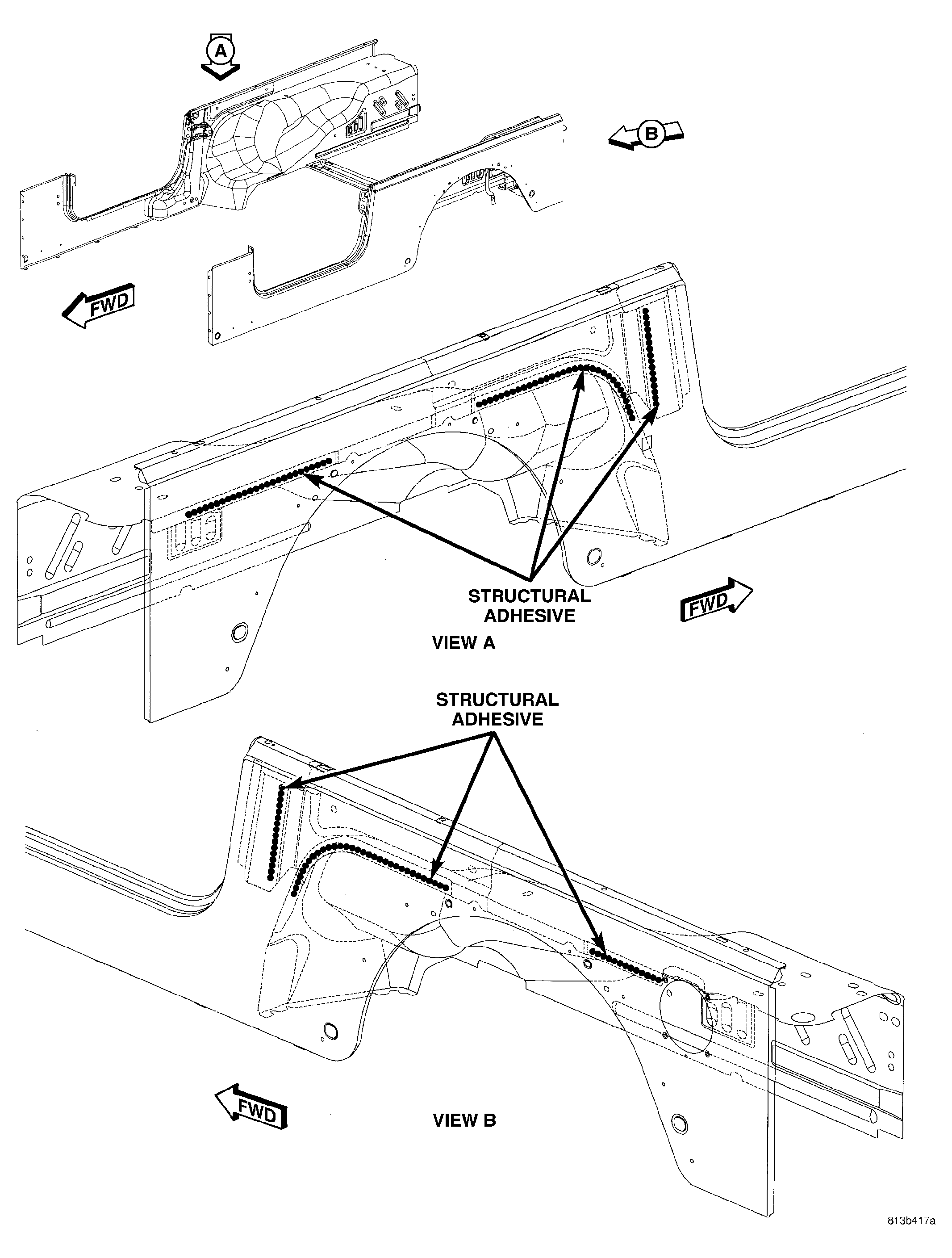

Fig 1: BODY SIDE APERTURE

Courtesy of DAIMLERCHRYSLER CORP.

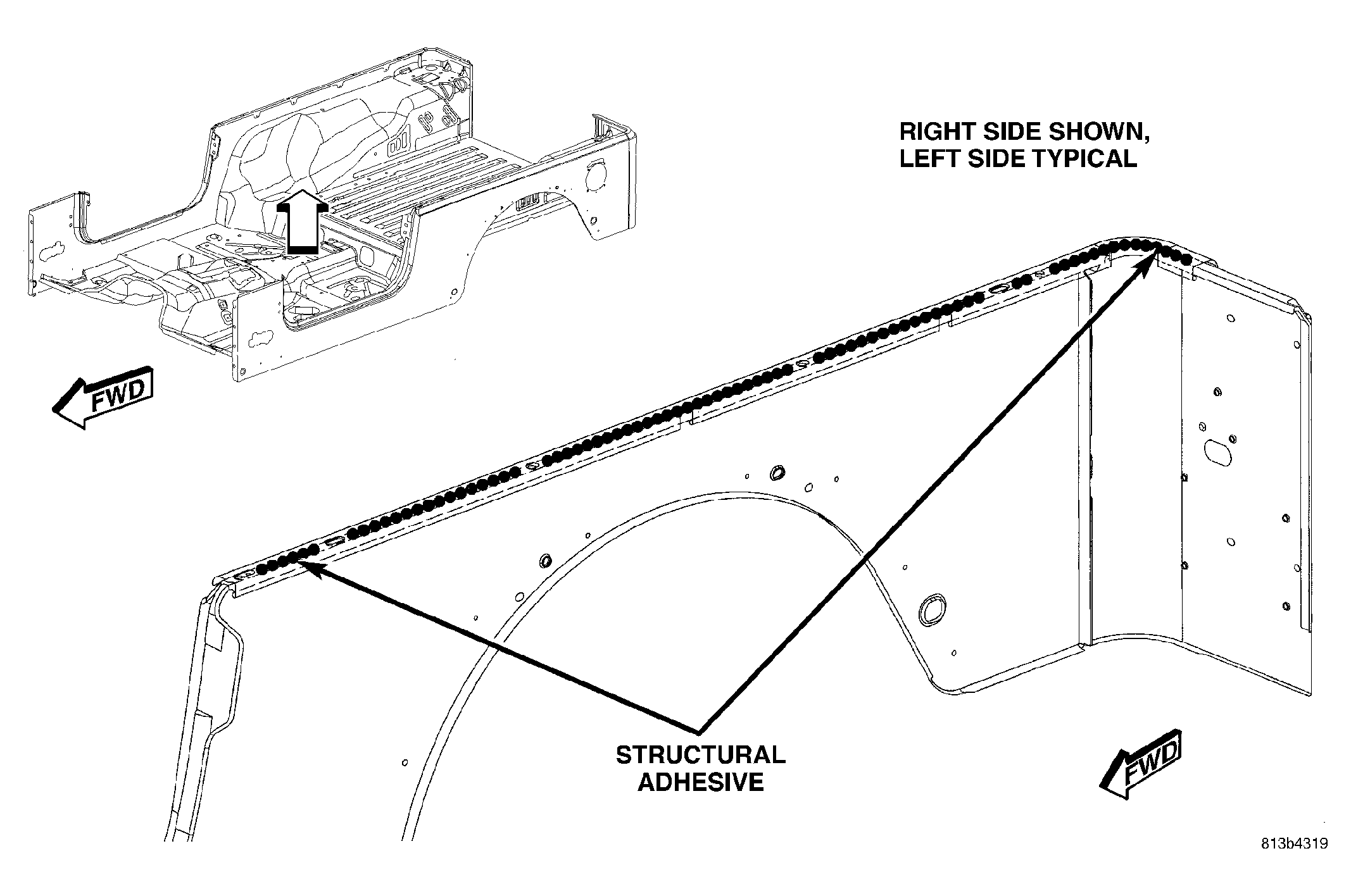

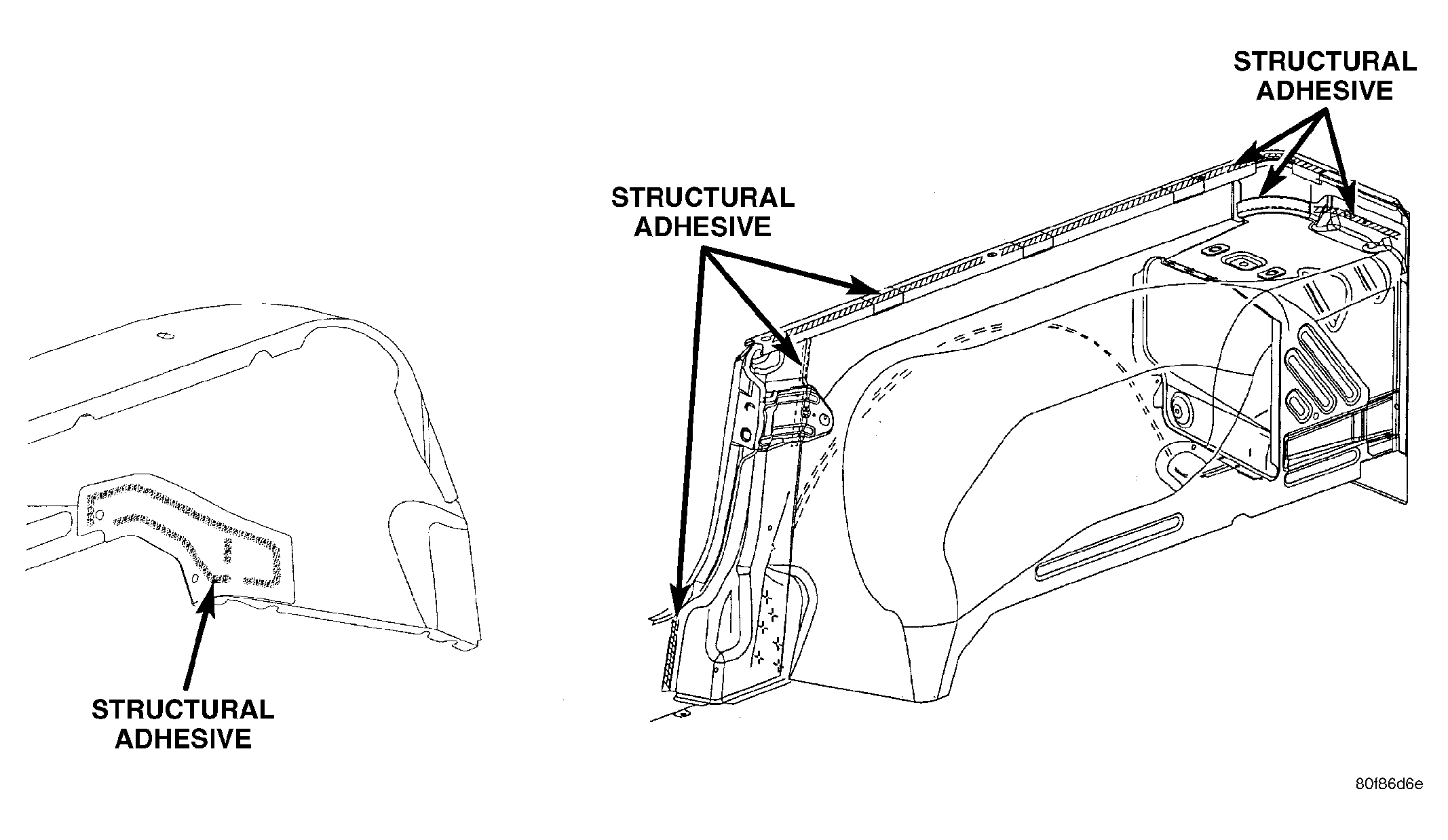

Fig 2: WHEELHOUSE

Courtesy of DAIMLERCHRYSLER CORP.

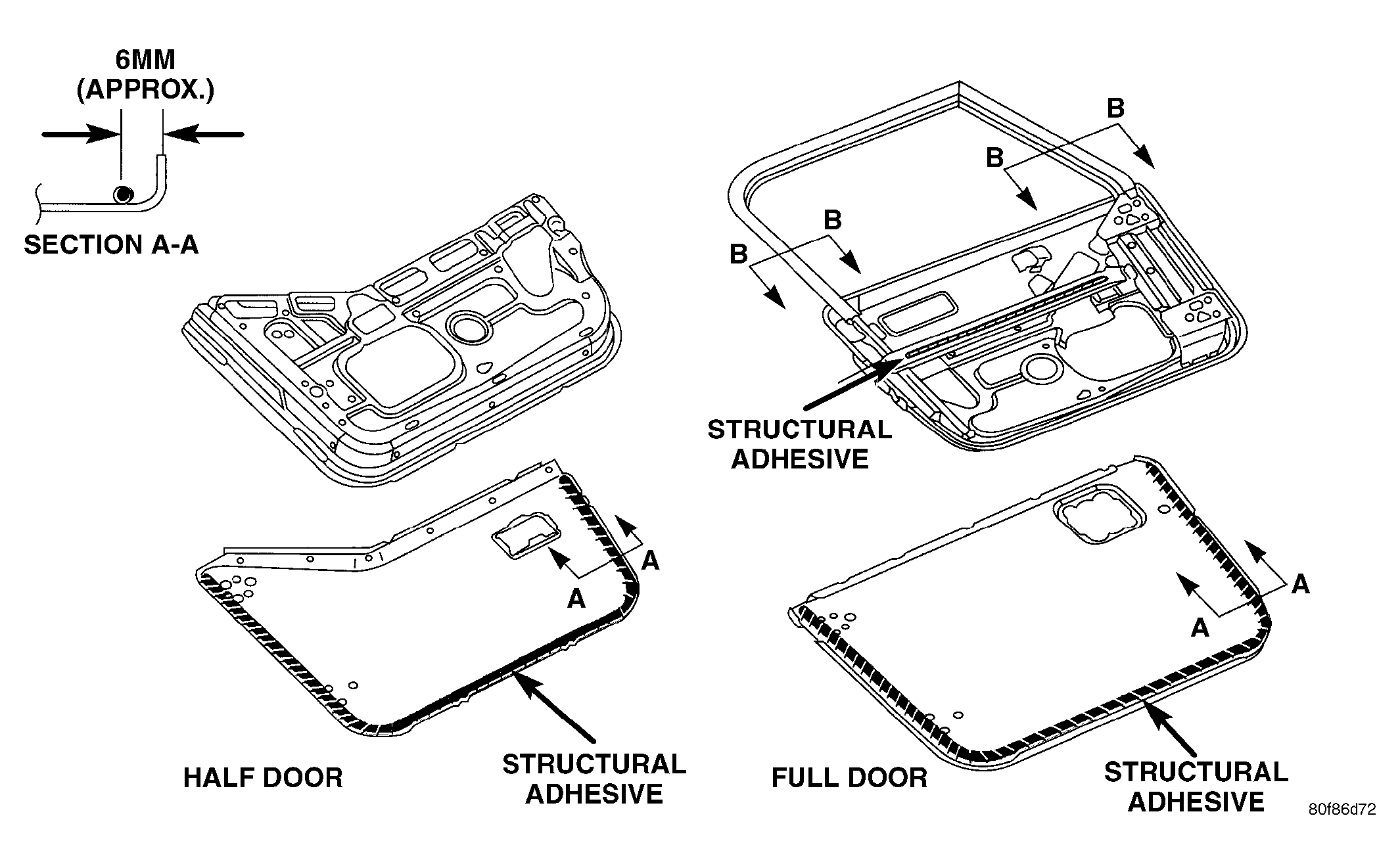

Fig 3: DOOR OUTER PANELS

Courtesy of DAIMLERCHRYSLER CORP.

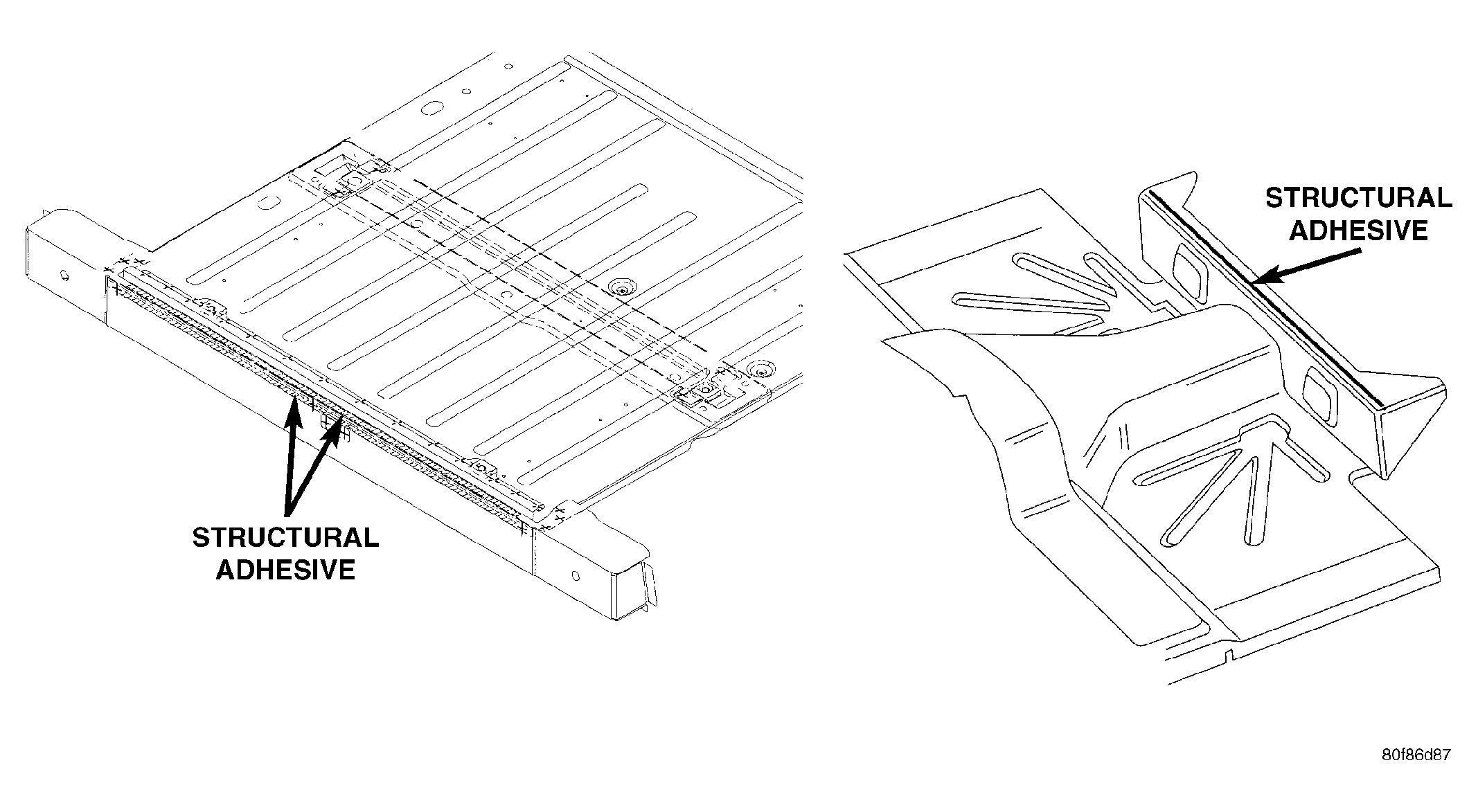

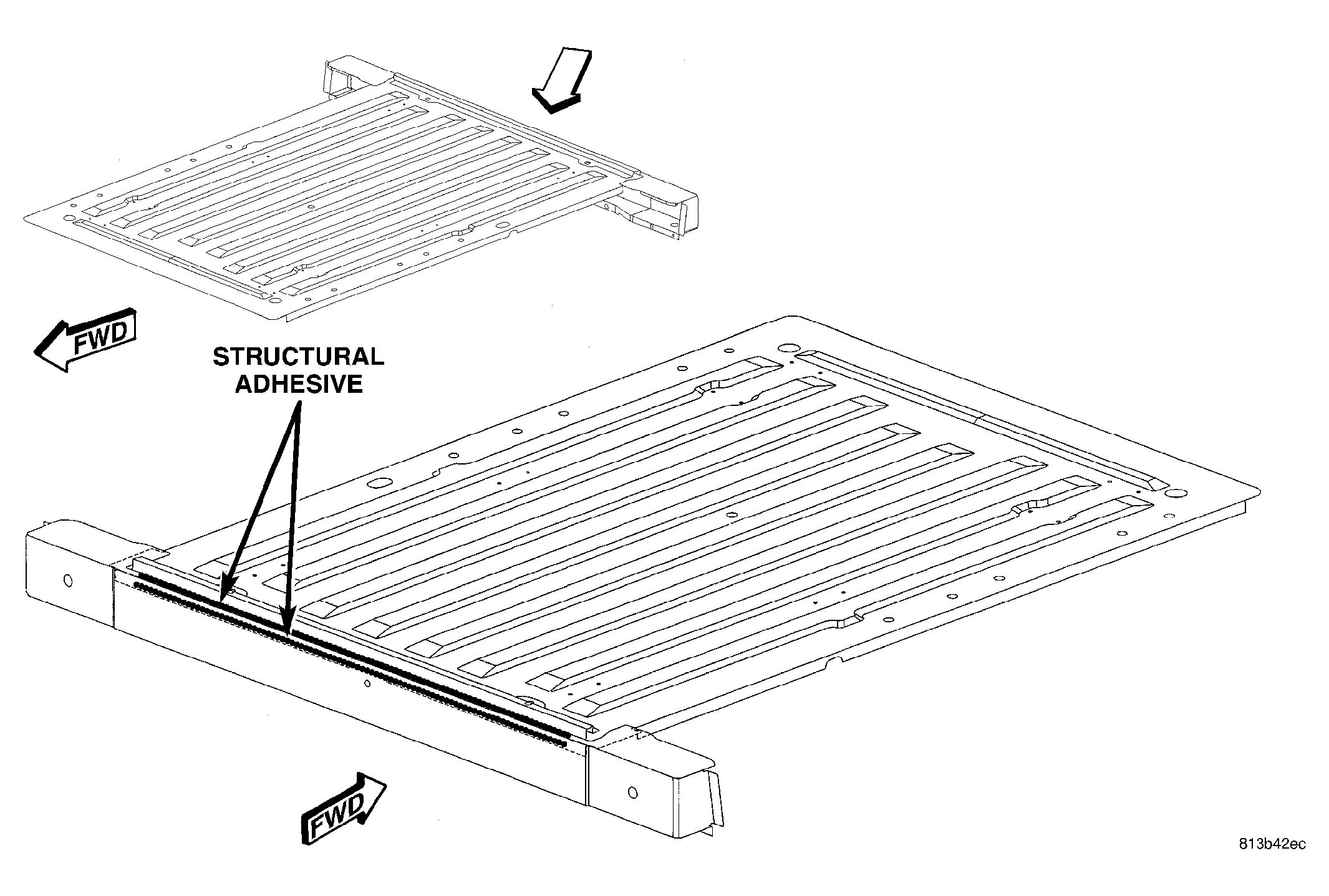

Fig 4: REAR FLOOR PAN

Courtesy of DAIMLERCHRYSLER CORP.

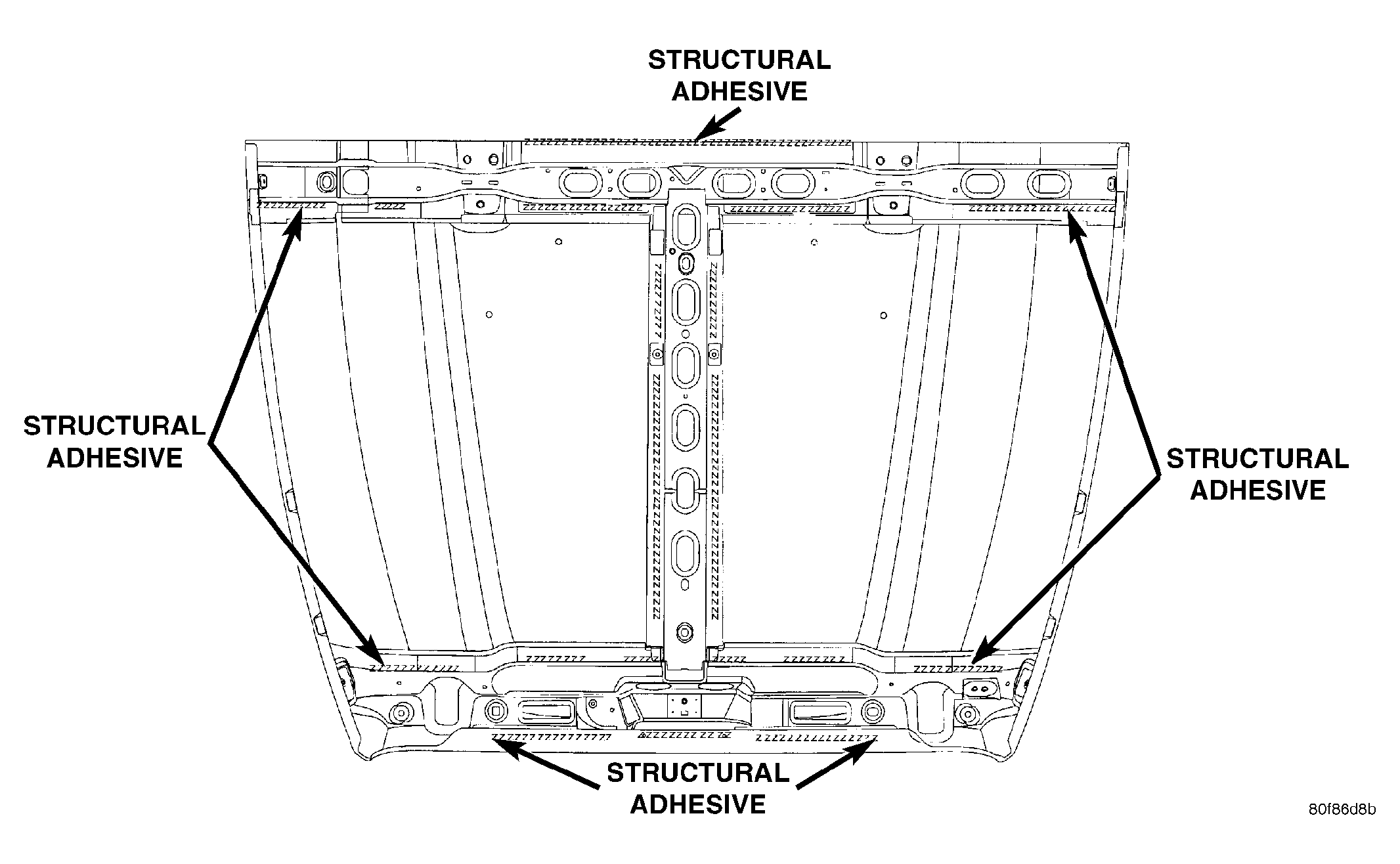

Fig 5: HOOD ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

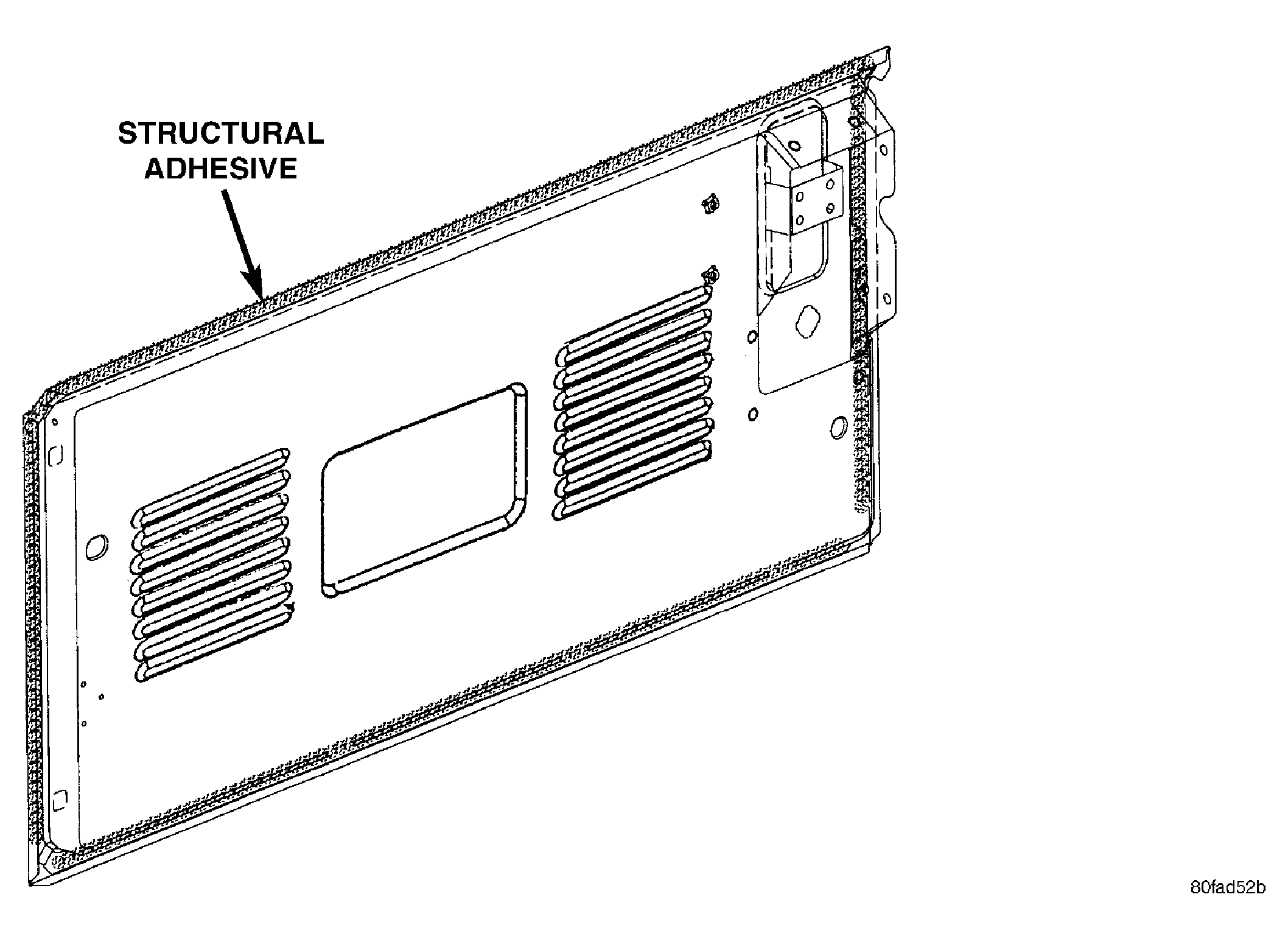

Fig 6: TAIL GATE

Courtesy of DAIMLERCHRYSLER CORP.

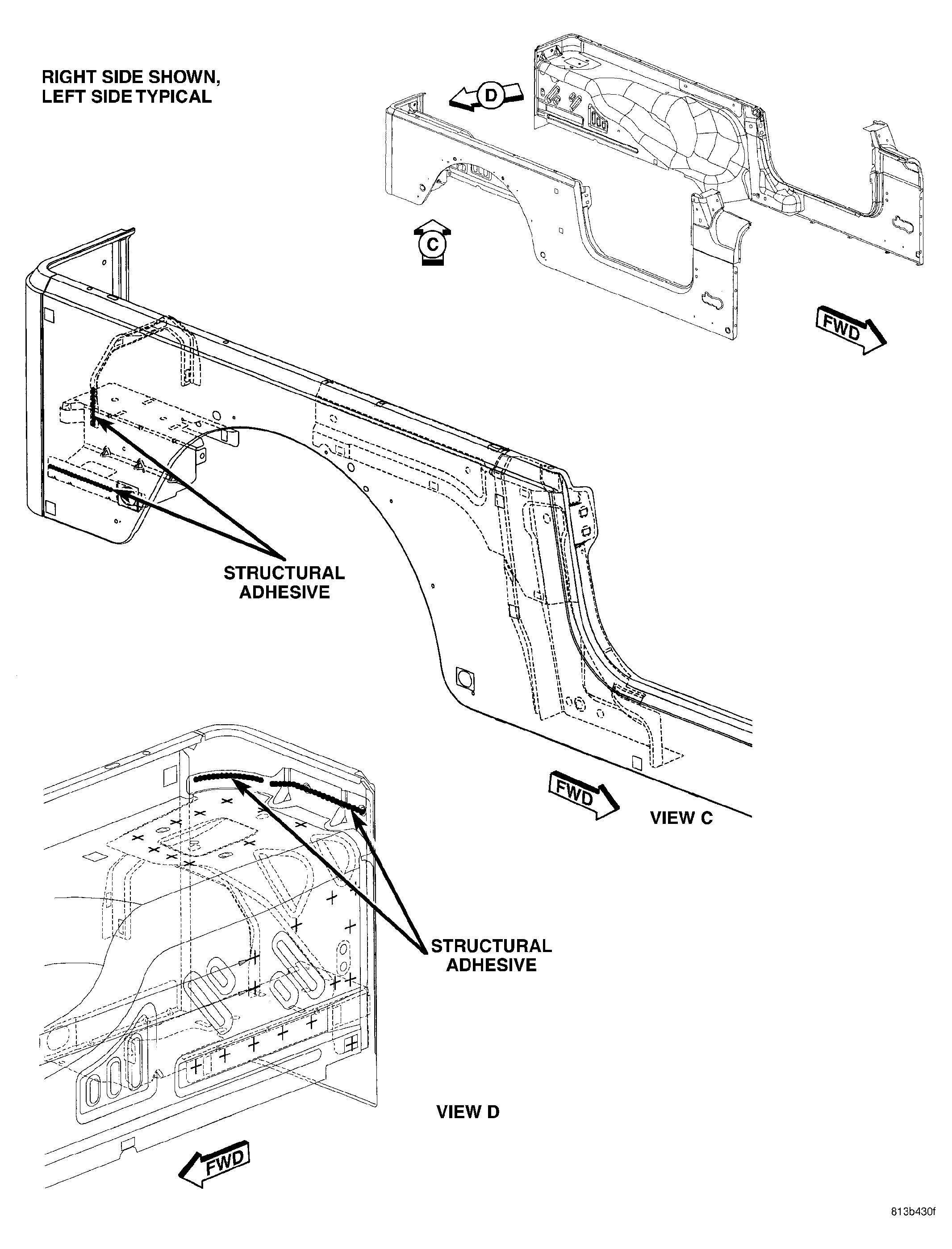

Fig 7: BODY SIDE/WHEELHOUSE LONG WHEEL BASE (LWB)

Courtesy of DAIMLERCHRYSLER CORP.

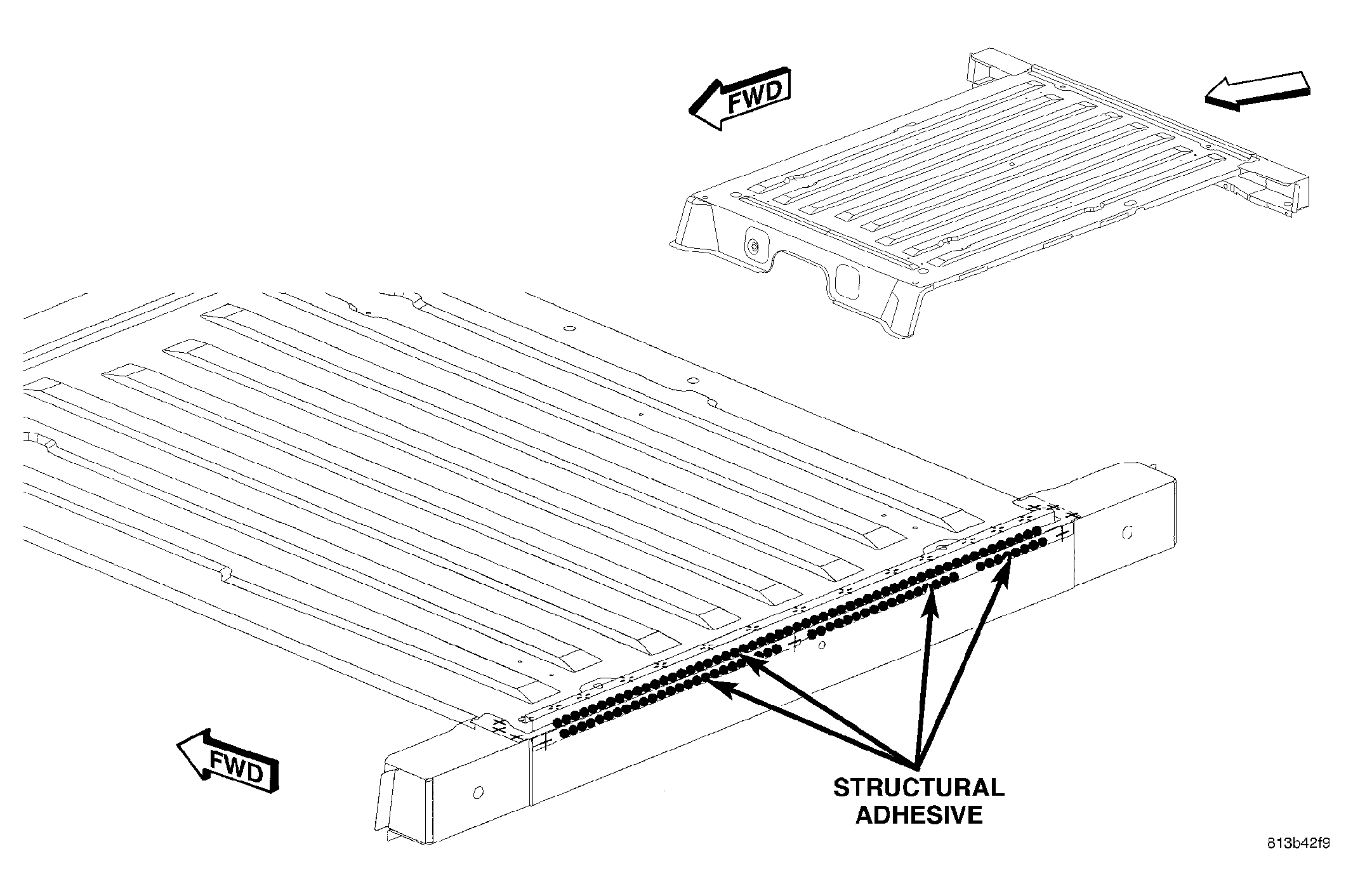

Fig 8: REAR FLOOR LWB

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: UNDERBODY LWB

Courtesy of DAIMLERCHRYSLER CORP.

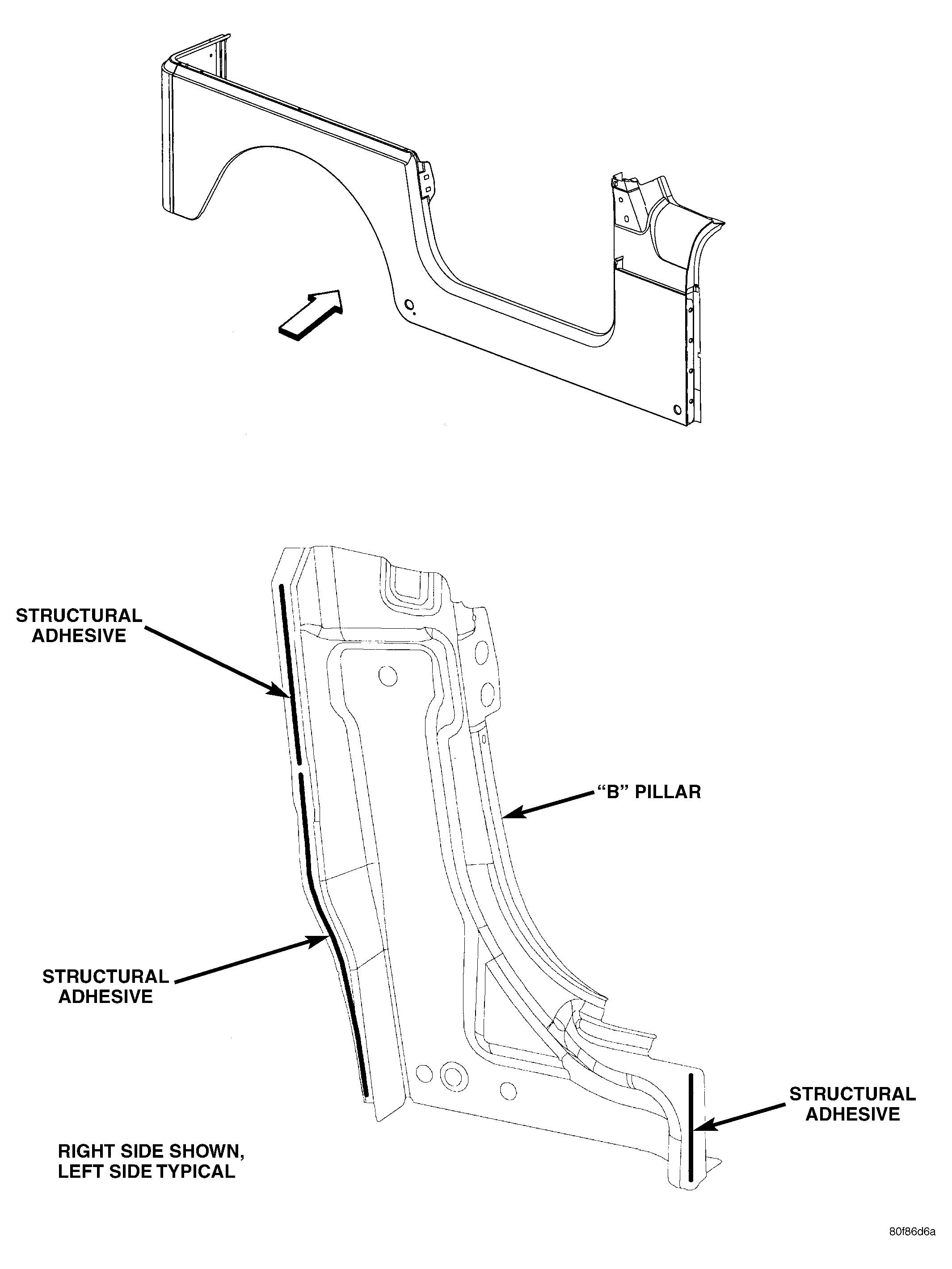

Fig 10: BODY SIDE COMPLETE LWB

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: BODY COMPLETE LWB

Courtesy of DAIMLERCHRYSLER CORP.
