Body Opening Dimensions

INDEX

DESCRIPTION FIGURE
WINDSHIELD OPENING Fig 1.
DOOR OPENING Fig 2.
QUARTER WINDOW OPENING Fig 3.
ENGINE COMPARTMENT Fig 4.
TAILGATE AND LIFTGATE OPENING Fig 5.

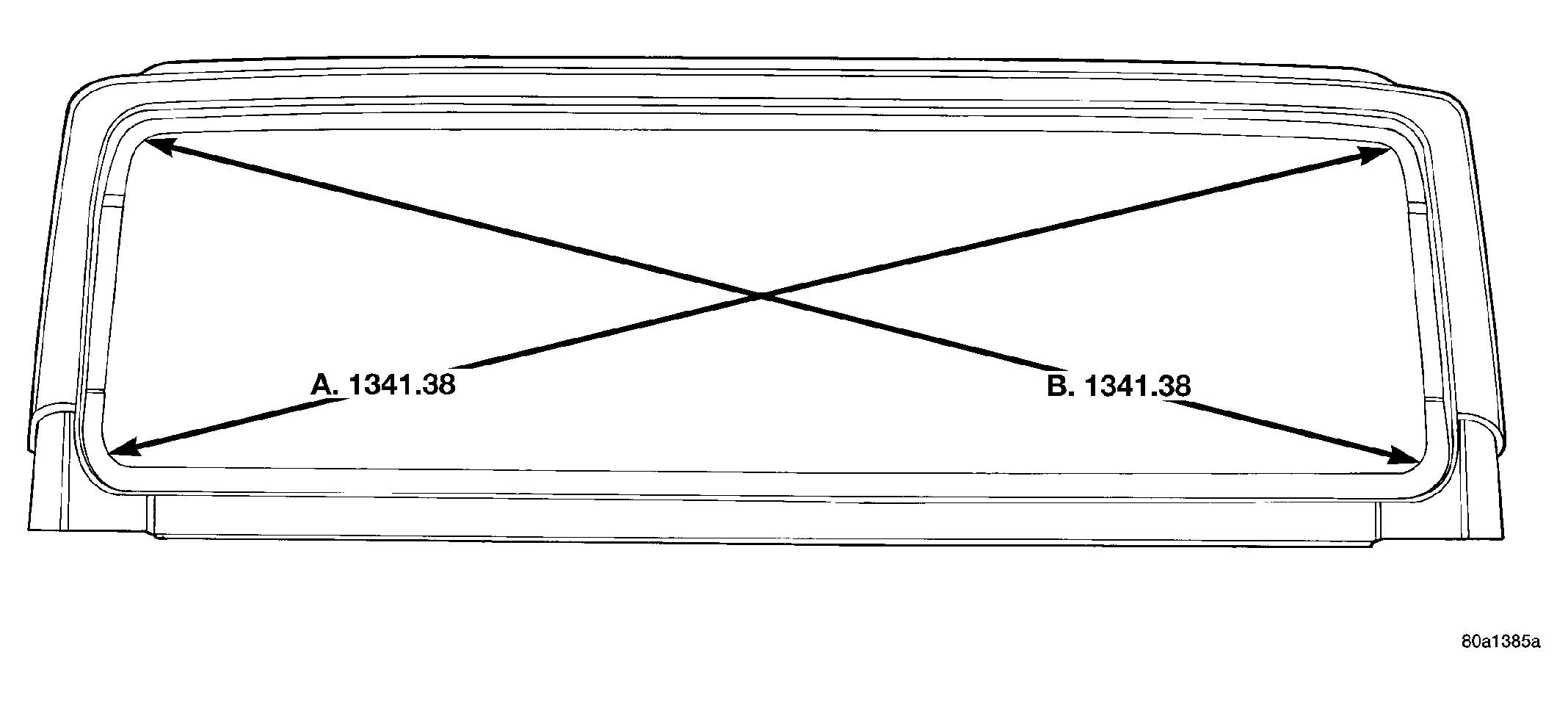

Fig 1: WINDSHIELD OPENING
GC0030687Courtesy of DAIMLERCHRYSLER CORP.
  1. A & B. Center of radius at bottom to center of radius top.

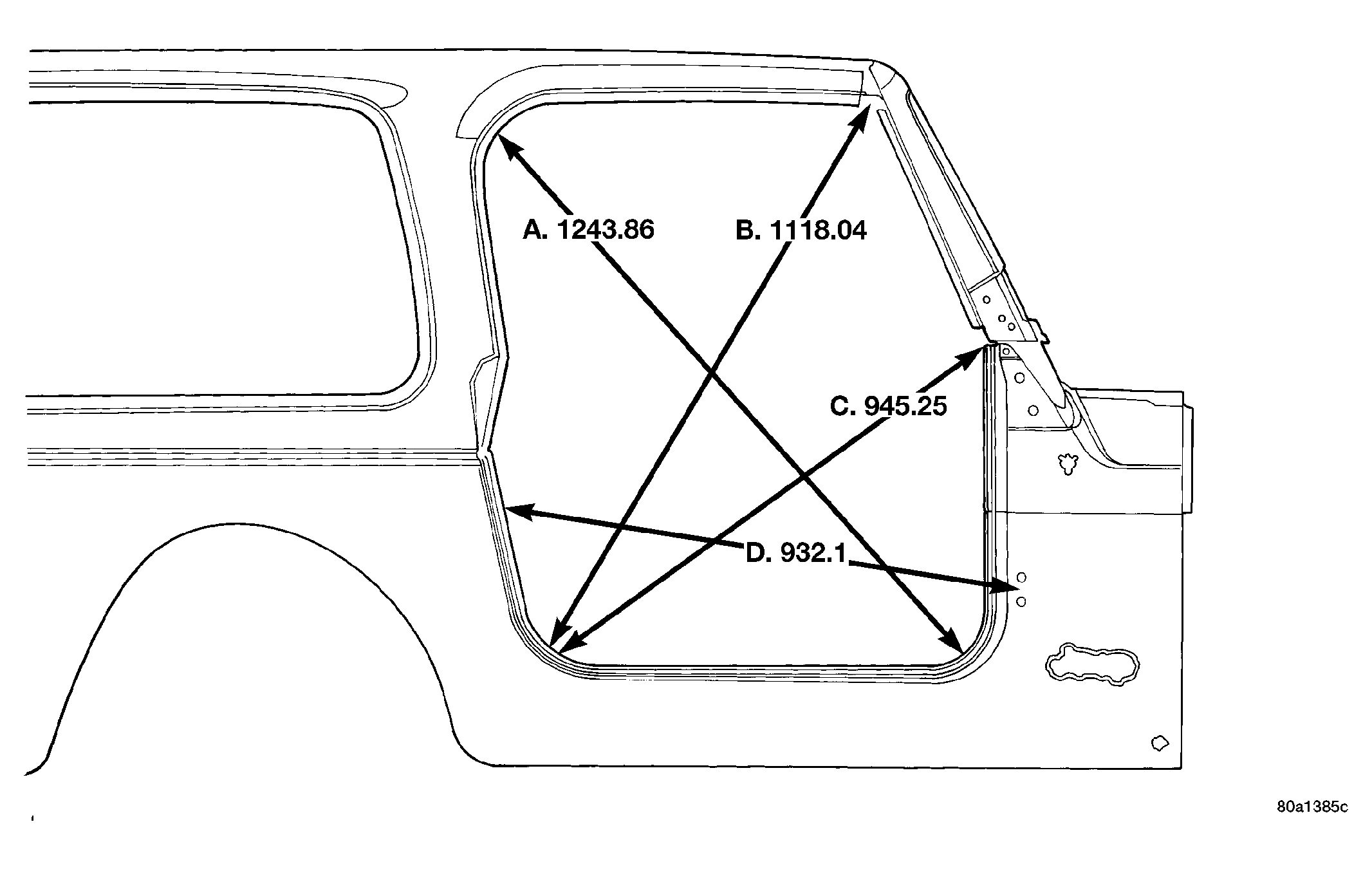

Fig 2: DOOR OPENING
GC0030688Courtesy of DAIMLERCHRYSLER CORP.
  1. A. Center of radius at bottom front to center of radius at top rear.
  1. B. Center of door lower rear corner to center of top of windshield frame.
  1. C. Center of door lower rear corner to top of cowl.
  1. D. Center of door hinge mount to center of door striker mount.

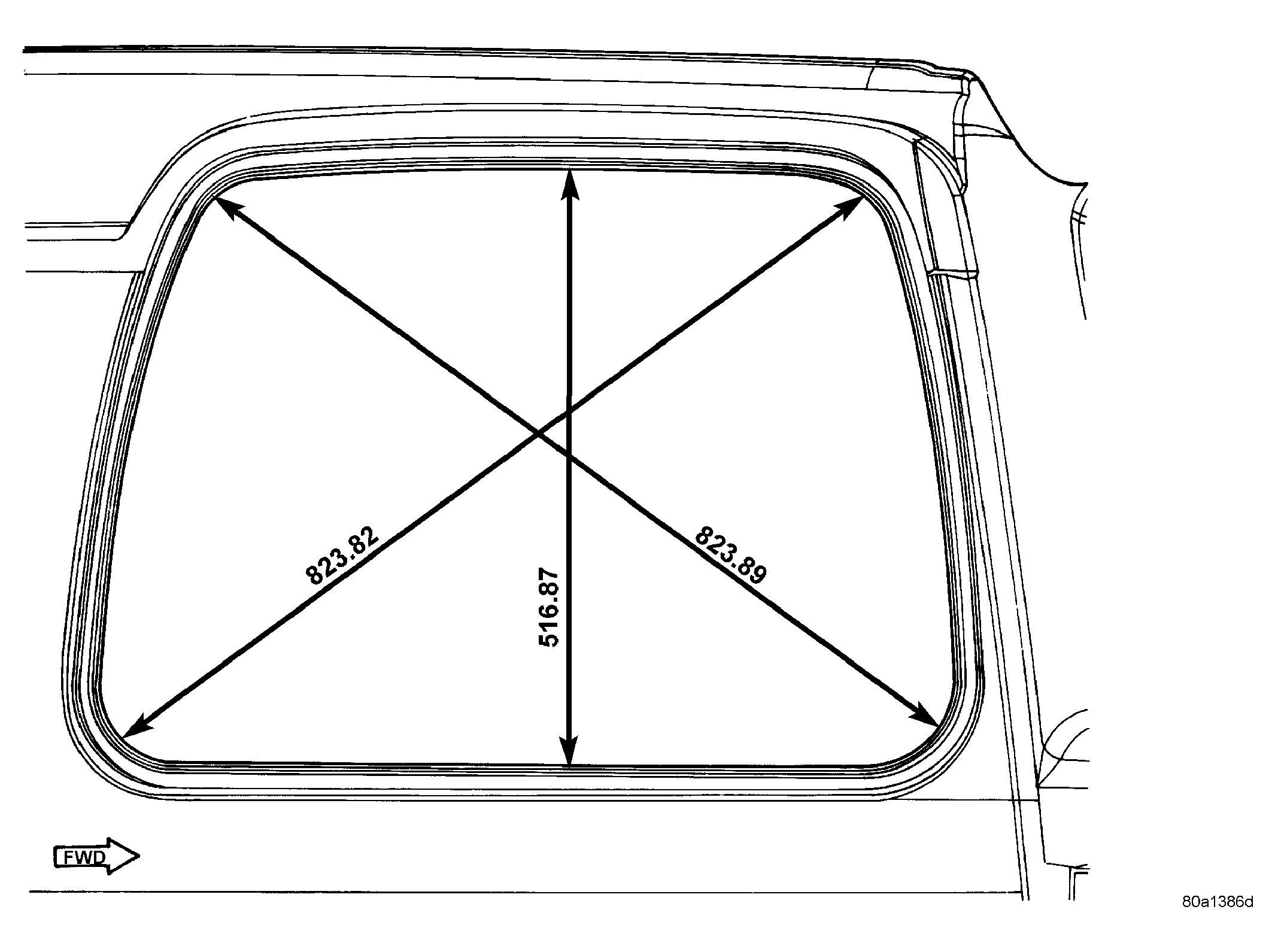

Fig 3: QUARTER WINDOW OPENING
GC0030689Courtesy of DAIMLERCHRYSLER CORP.

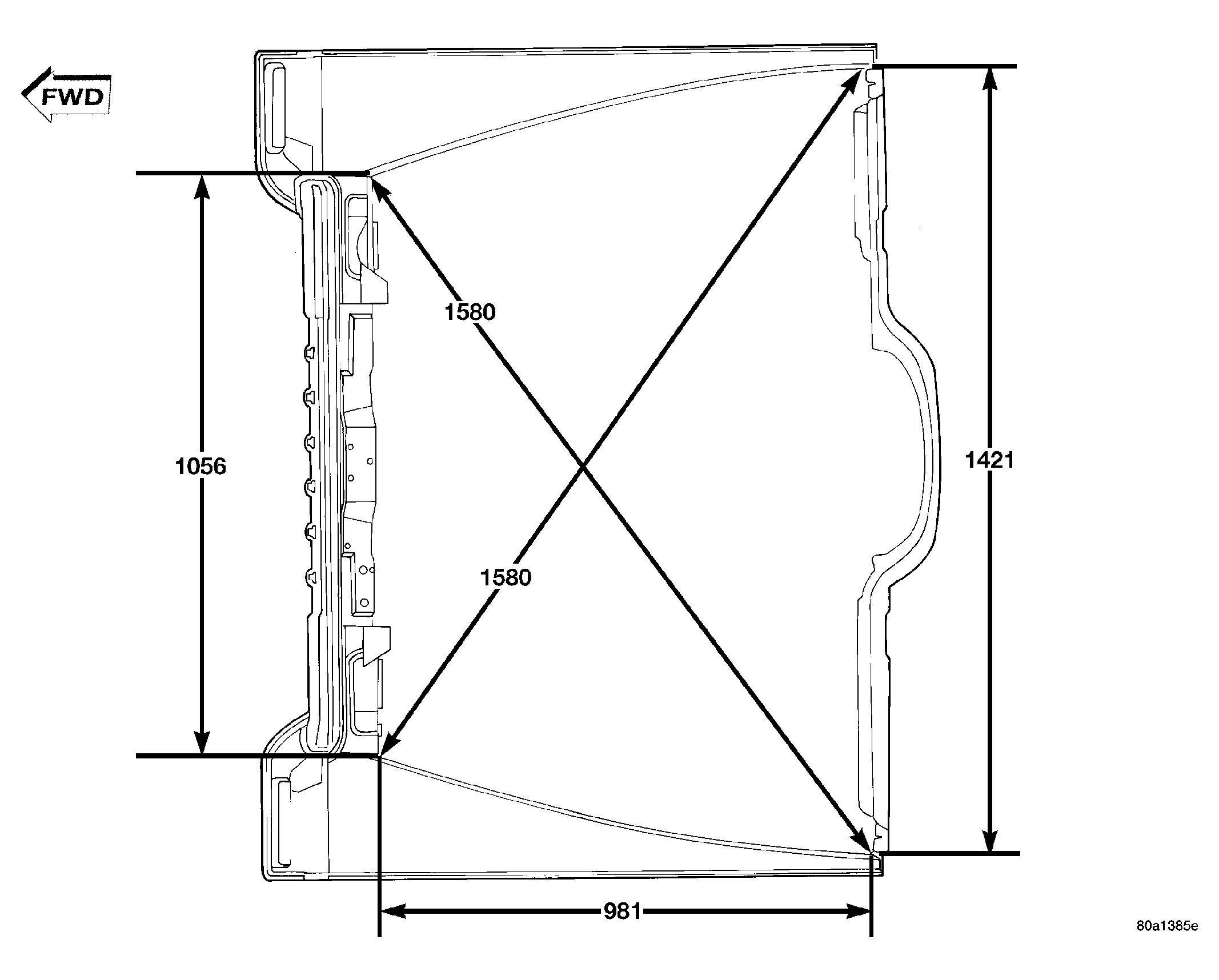

Fig 4: ENGINE COMPARTMENT
GC0030690Courtesy of DAIMLERCHRYSLER CORP.

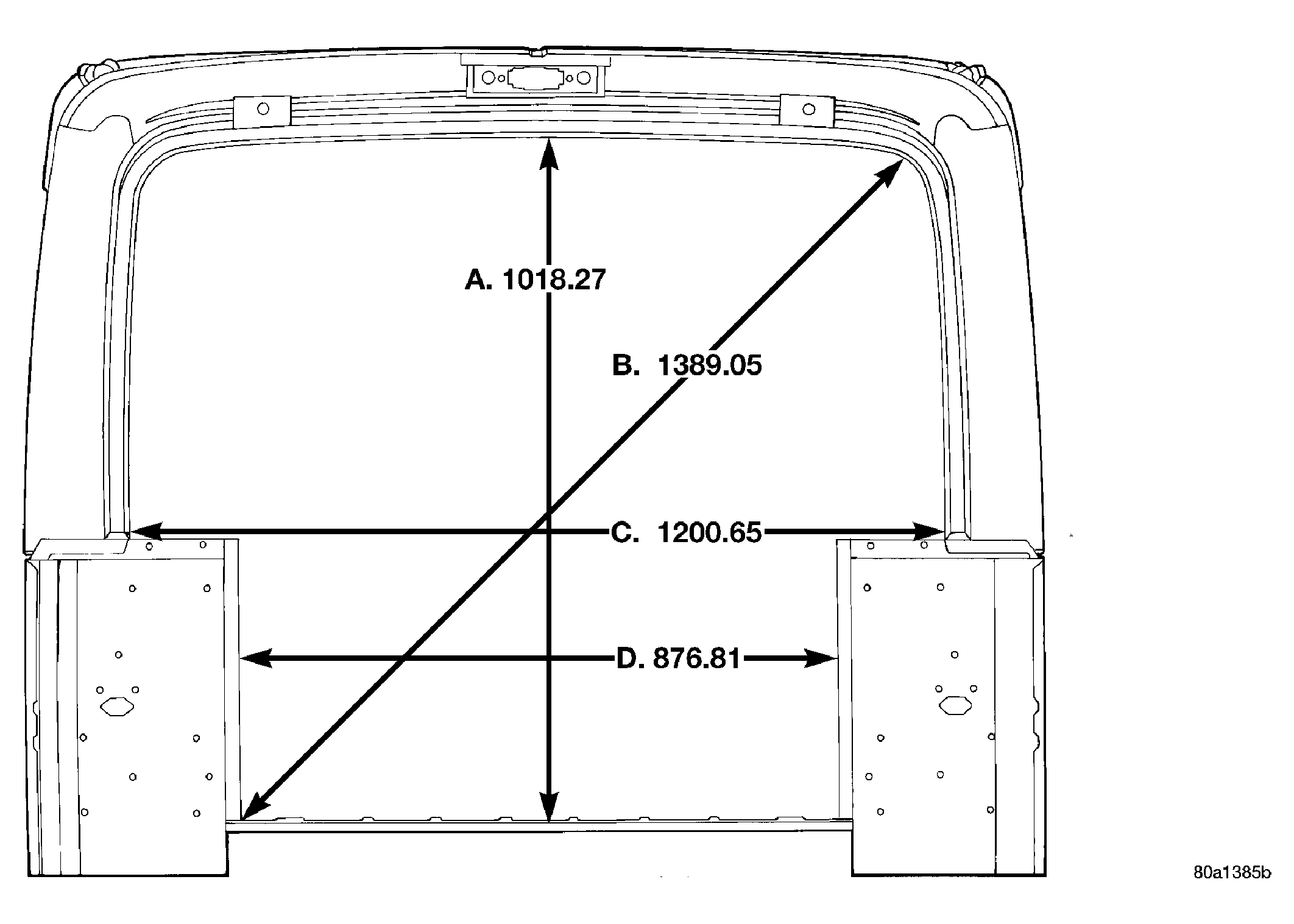

Fig 5: TAILGATE AND LIFTGATE OPENING
GC0030691Courtesy of DAIMLERCHRYSLER CORP.
  1. A. Center of liftgate opening to floor.
  1. B. Center of radius upper corner to center of body and floor corner.
  1. C. Liftgate opening distance.
  1. D. Tailgate opening distance.
