Specifications - Gap And Flush

INDEX

DESCRIPTION  FIGURE
FRONT/SIDE DIMENSIONS Fig 1.
REAR/SIDE DIMENSIONS Fig 2.

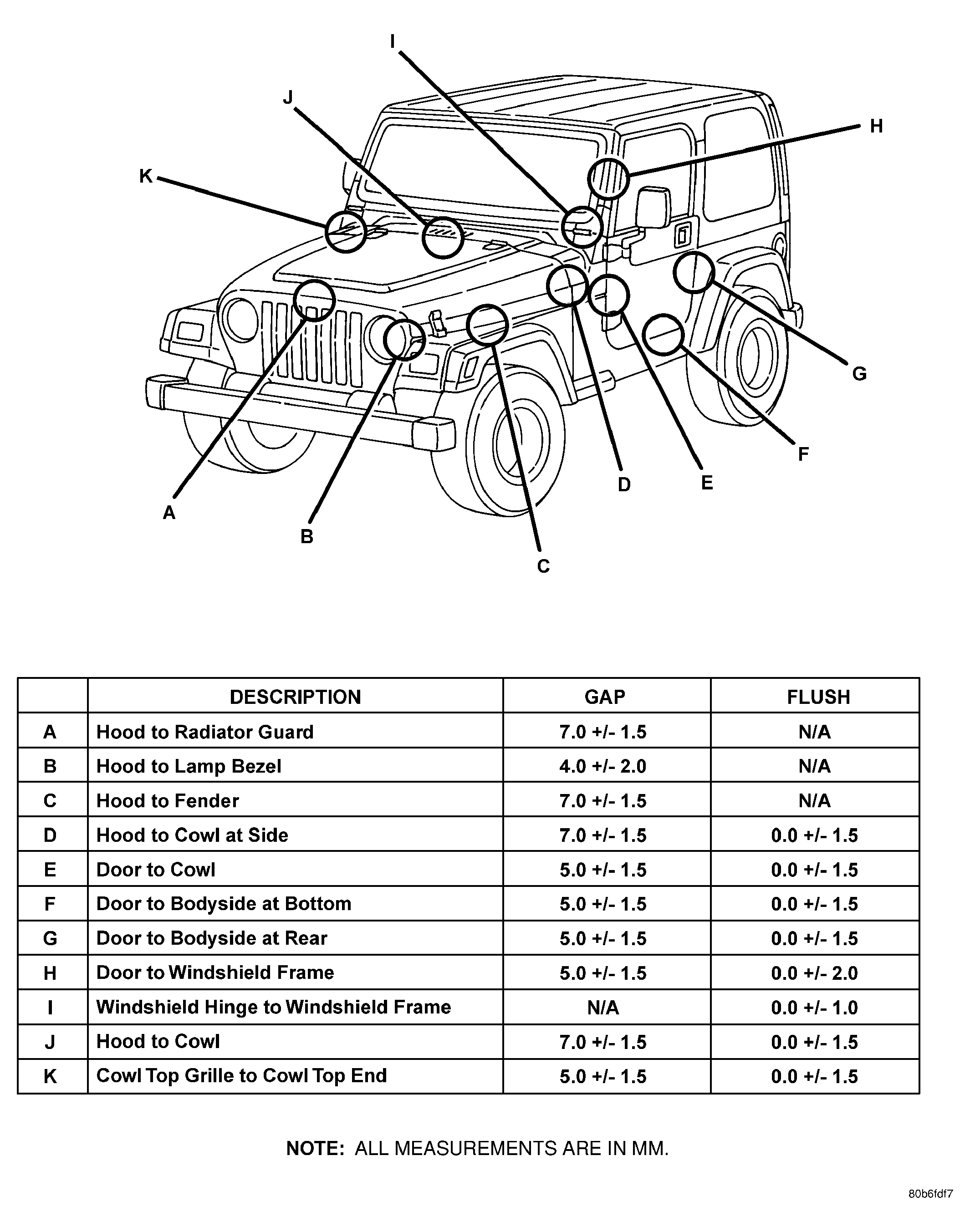

Fig 1: FRONT/SIDE DIMENSIONS
GC0030685Courtesy of DAIMLERCHRYSLER CORP.

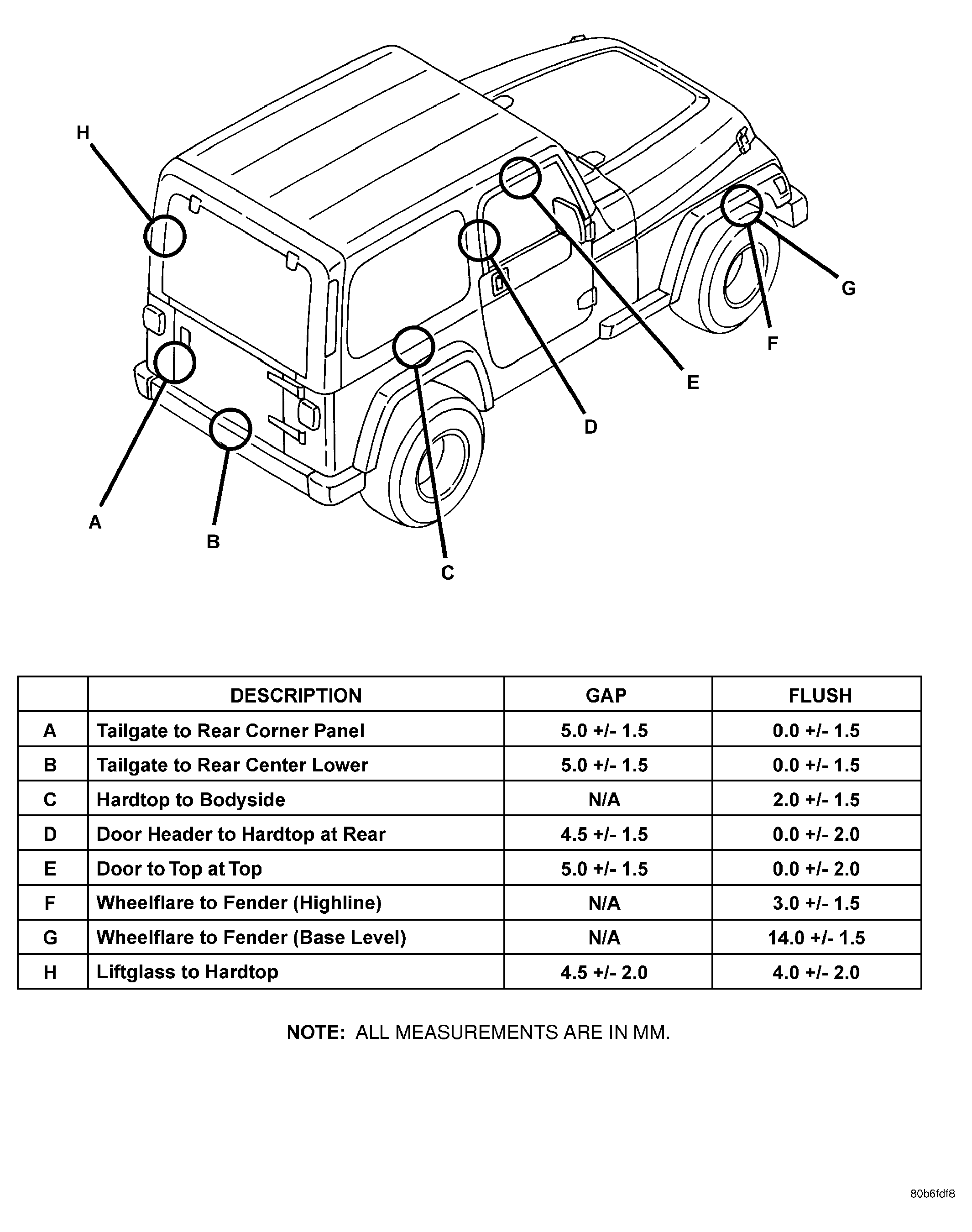

Fig 2: REAR/SIDE DIMENSIONS
GC0030686Courtesy of DAIMLERCHRYSLER CORP.
