Full Door Outer Belt Seal: Removal

  1. Remove the door sail panel.
  2. Disengage the clips attaching the outer belt seal to the door. See Fig 1.
  3. Separate the seal from the door.

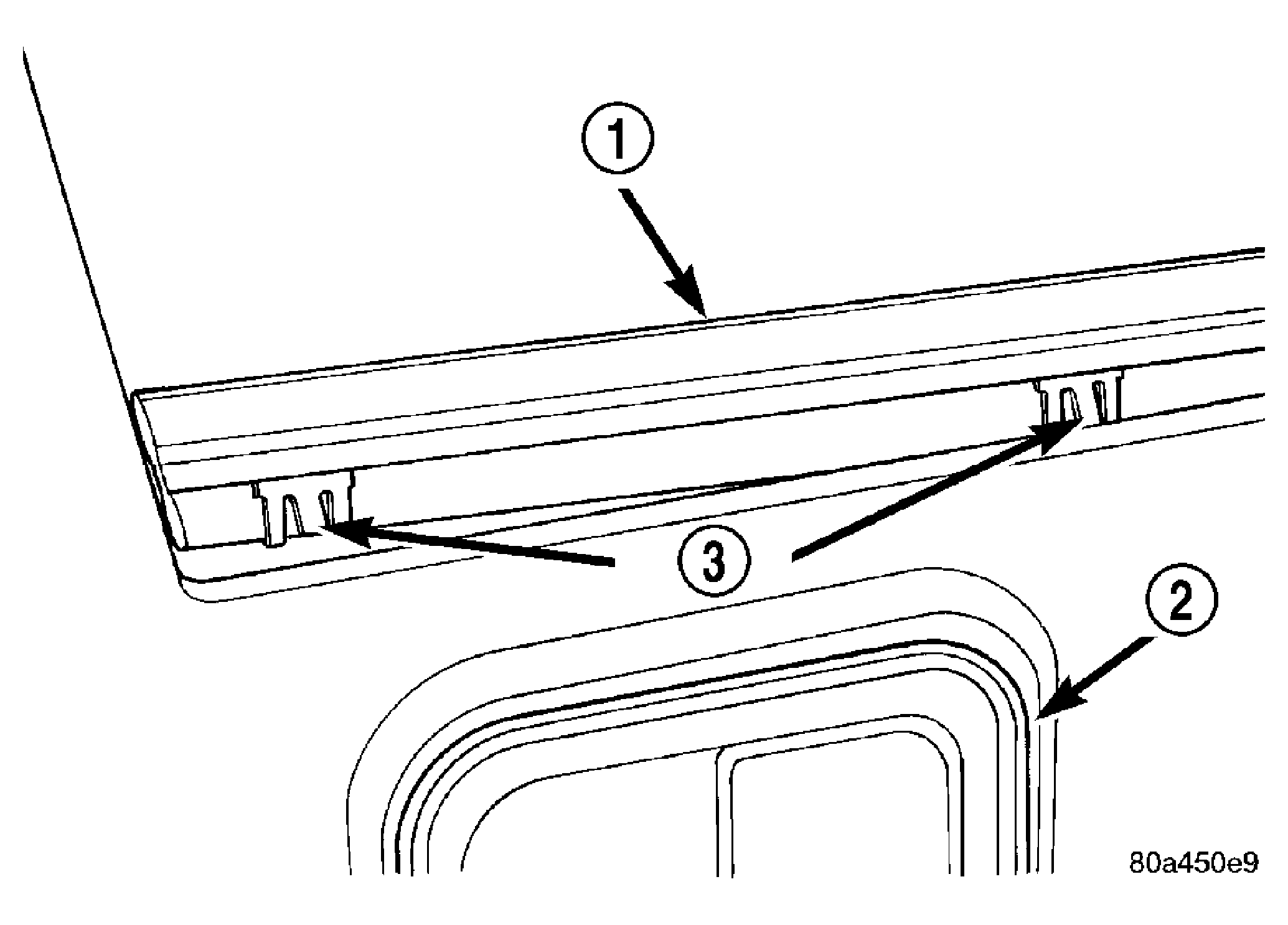

Fig 1: FULL DOOR OUTER BELT SEAL
GC0030680Courtesy of DAIMLERCHRYSLER CORP.
1 - OUTER BELTLINE WEATHERSTRIP
2 - OUTSIDE DOOR HANDLE
3 - CLIPS
