Switch-Heated Seat: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel center bezel, (Refer to BEZEL-CENTER ).
  3. Remove the lower instrument panel switch pod fasteners.
  4. Remove the lower instrument panel switch pod from the vehicle.

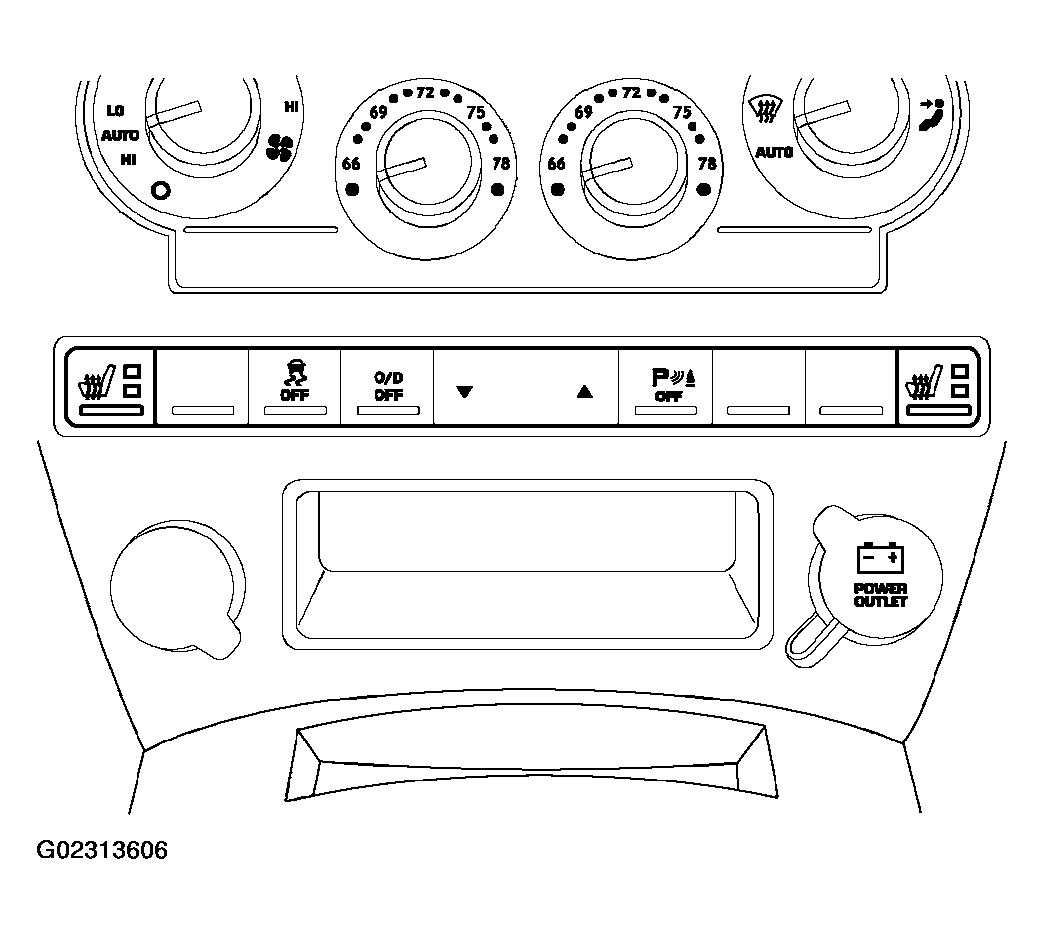

    Fig 1: Identifying Heated Seat Switch
    G02313606Courtesy of DAIMLERCHRYSLER CORPORATION
