Switch-Heated Seat: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: There are different instrument panel switch pods available based on the option content of the vehicle. Ensure the switch pod being installed matches the vehicle options.
  1. Position the lower instrument panel switch pod into the instrument panel center bezel.
  2. Install the lower instrument panel switch pod fasteners.
  3. Install the instrument panel center bezel, (Refer to BEZEL-CENTER ).
  4. Connect the battery negative cable.
  5. Verify heated seat system operation.

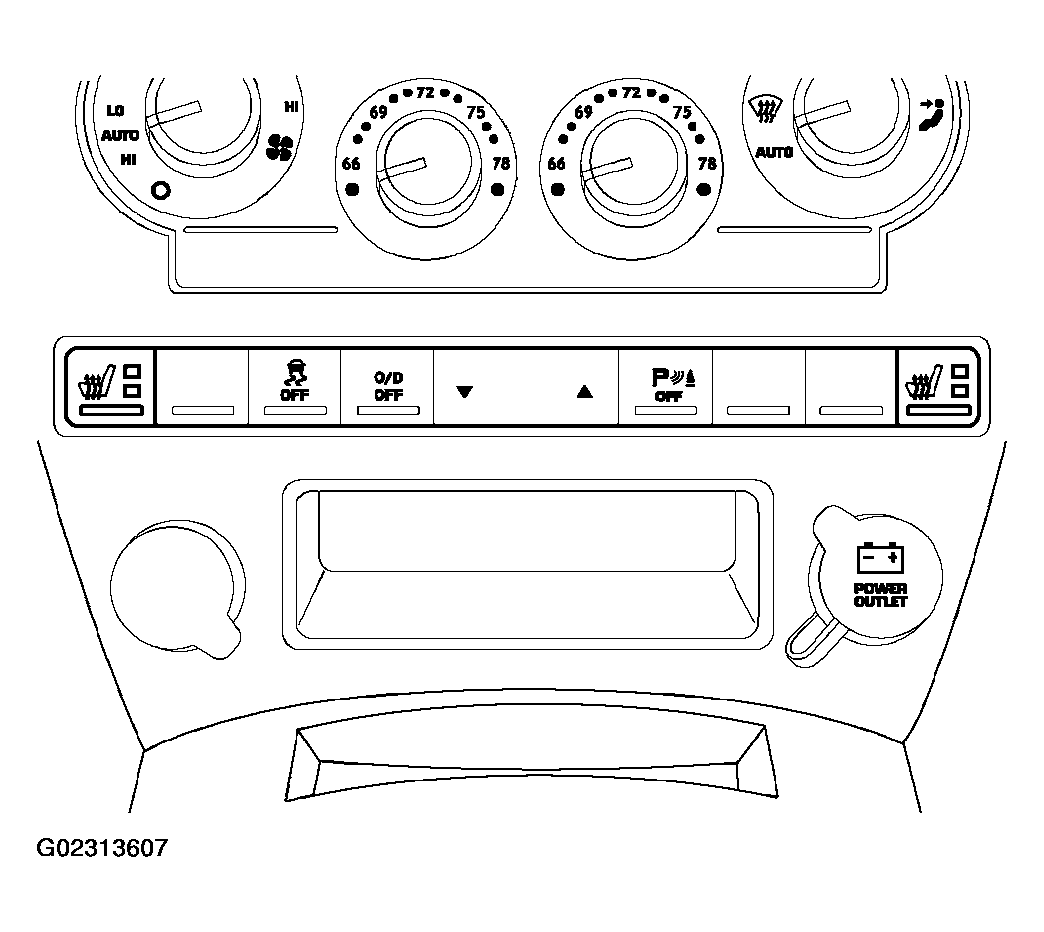

    Fig 1: Identifying Heated Seat Switch
    G02313607Courtesy of DAIMLERCHRYSLER CORPORATION
