Module-Heated Seats: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The Heated Seat Module mounting tabs can be damaged during module removal and installation. Use care to properly align tabs to prevent binding that could result in tab breakage.
  1. Position the right front seat to the full rearward position.
  2. Disconnect and isolate the battery negative cable.
  3. Disconnect the wire harness connector (2) from the heated seat module (3).
  4. Unsnap the heated seat module retaining clips from the mounting bracket (4).
  5. Remove the heated seat module (3) from the vehicle.

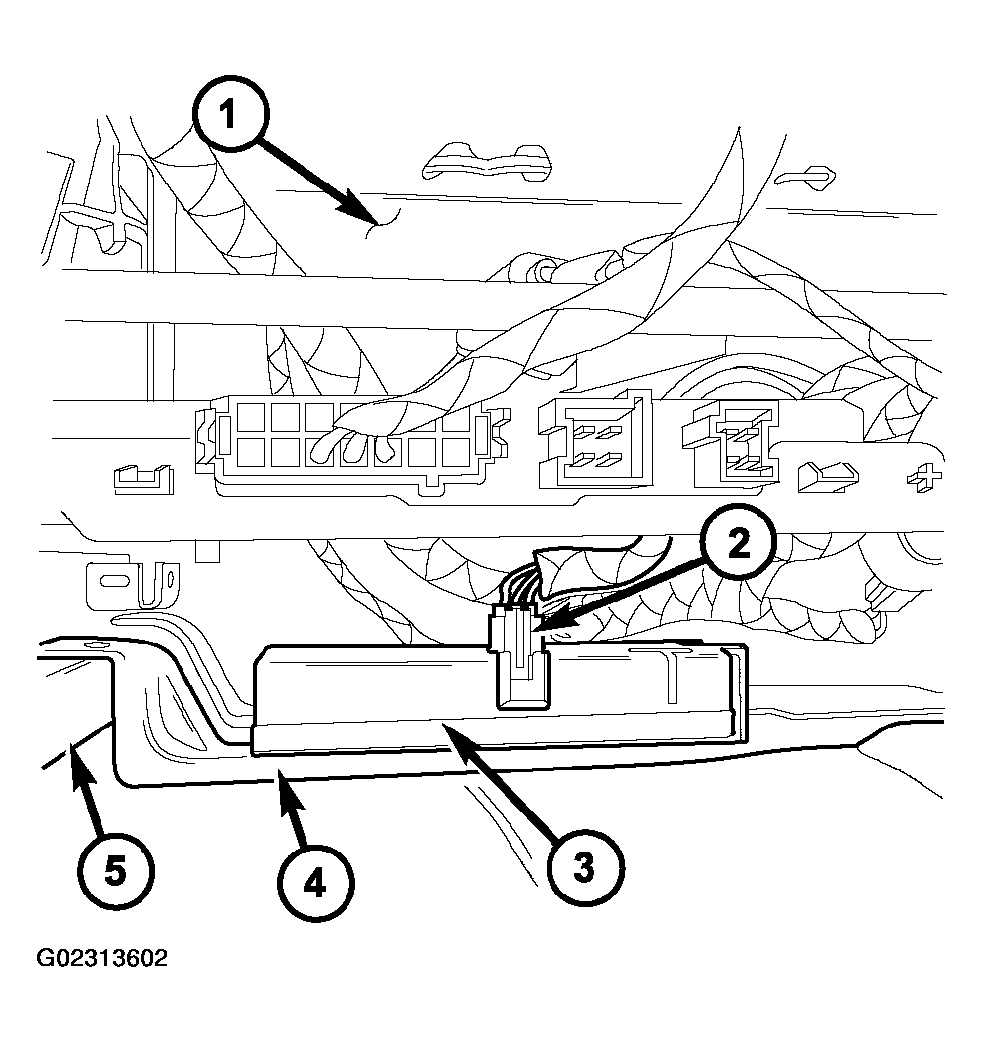

    Fig 1: Identifying Heated Seat Module Components
    G02313602Courtesy of DAIMLERCHRYSLER CORPORATION
