Module-Heated Seats: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The Heated Seat Module mounting tabs can be damaged during module removal and installation. Use care to properly align tabs to prevent binding that could result in tab breakage.
  1. Install the heated seat module (2) into the vehicle.
  2. Position the retaining clips (1) with the retaining holes (3) in the mounting bracket (4). Firmly apply even pressure to the module (2) until all four retaining clips (1) snap into place.

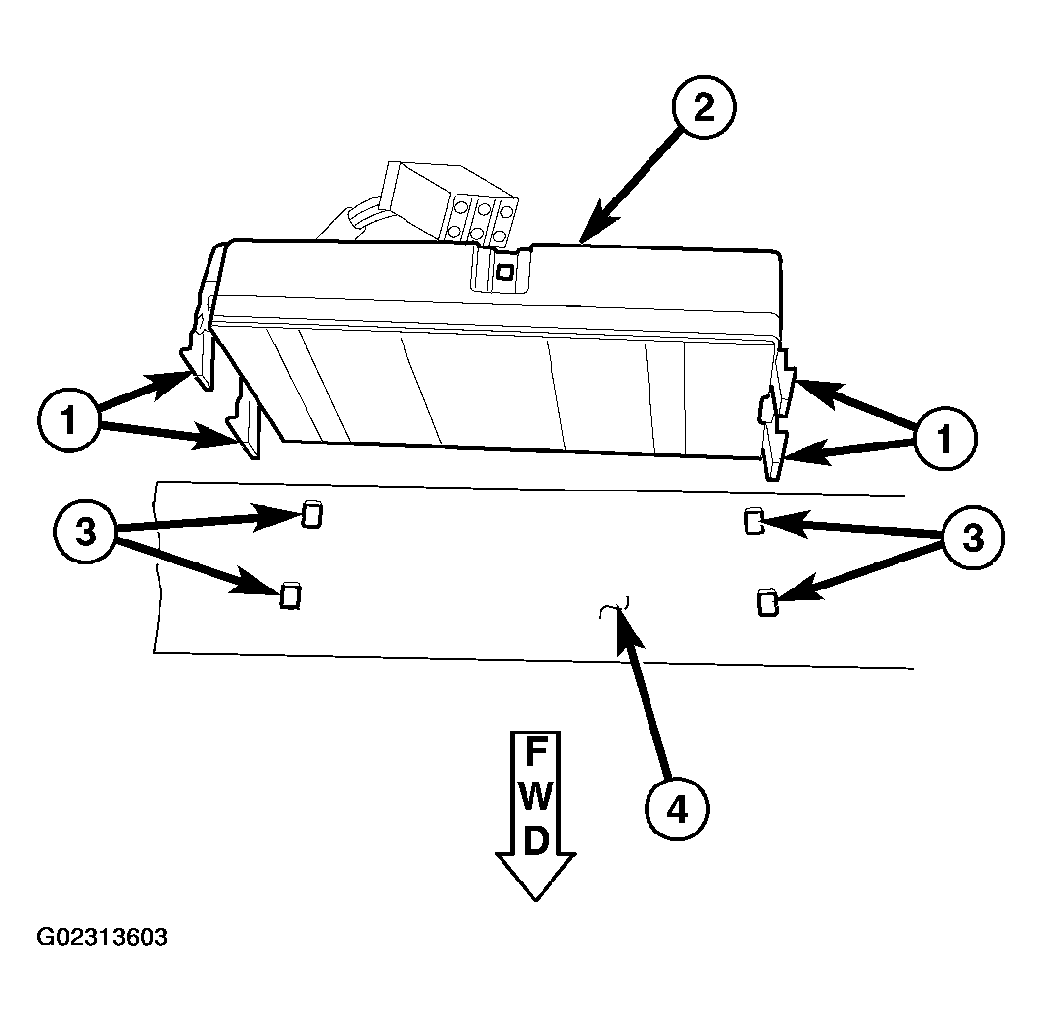

    Fig 1: Installing Heated Seat Module
    G02313603Courtesy of DAIMLERCHRYSLER CORPORATION
  3. Connect the wire harness connector (2) to the heated seat module (3).
  4. Connect the battery negative cable.
  5. Check for proper heated seat system operation.

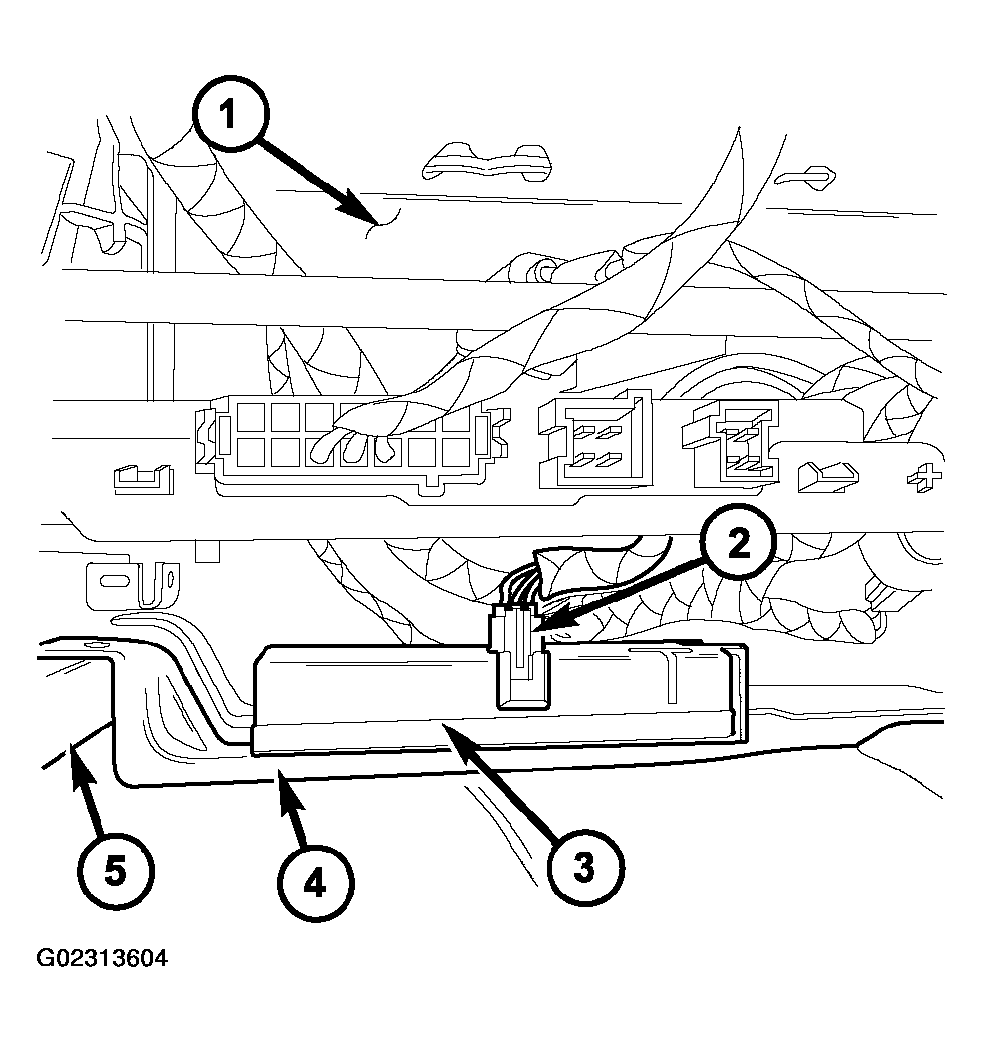

    Fig 2: Identifying Heated Seat Module Components
    G02313604Courtesy of DAIMLERCHRYSLER CORPORATION
