U1107-Ecu In Single-Wire Mode - HSM: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

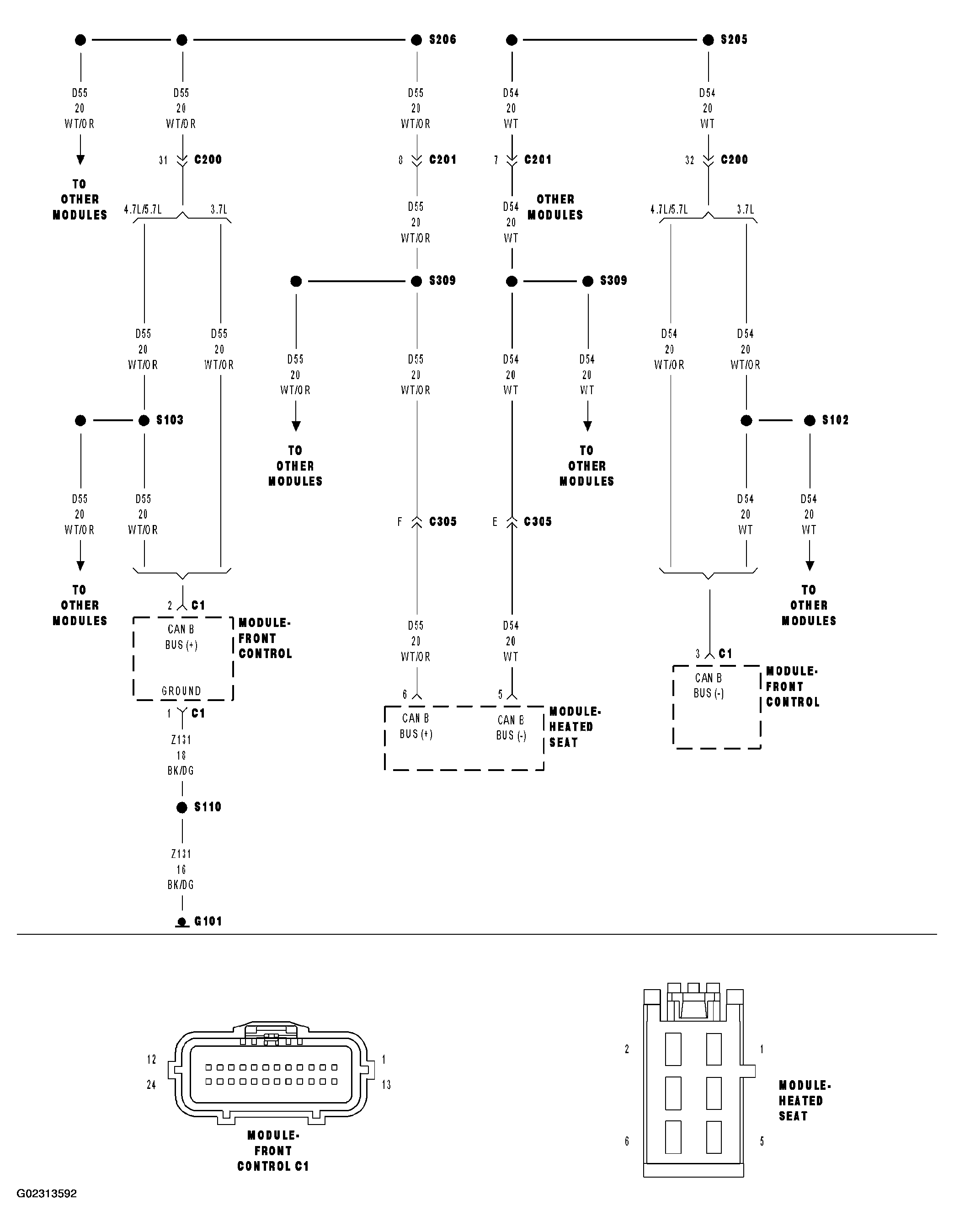

Fig 1: ECU In Single-Wire Mode - HSM Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORPORATION

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

When Monitored:
Continuously
Set Condition:
This code will set if either the Can B Bus (+) or (-) circuits are open.

Possible Causes

CAN B BUS DTC's IN FRONT CONTROL MODULE

(D54) CAN B BUS (-) CIRCUIT OPEN

(D55) CAN B BUS (+) CIRCUIT OPEN

HEATED SEAT MODULE
