TEST FOR INTERMITTENT CONDITION
Turn the ignition on.

With the scan tool, record and erase DTC's

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC's.

Does the scan tool display U0019 CAN B BUS CIRCUIT?
- Yes: Go To 2
- No: The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
CHECK FRONT CONTROL MODULE DTC's
With the scan tool, read Front Control Module DTC's

Does the scan tool display any CAN B BUS DTC's - ACTIVE?
- Yes: Refer to the symptom list for problems related to Communication in ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS .
- No: Go to 3
CAN B BUS (+) CIRCUIT OPEN
Turn the ignition off.

Disconnect the Heated Seat Module connector.

Disconnect the Front Control Module C1 connector.

Measure the resistance of the (D55) Can B Bus (+) circuit between the Front Control Module C1 connector and the Heated Seat Module connector.

Is the resistance below 2.0 ohms?
- Yes: Go To 4
- No: Repair the Can B Bus (+) circuit for an open.
  Perform BODY VERIFICATION TEST - VER 1 .

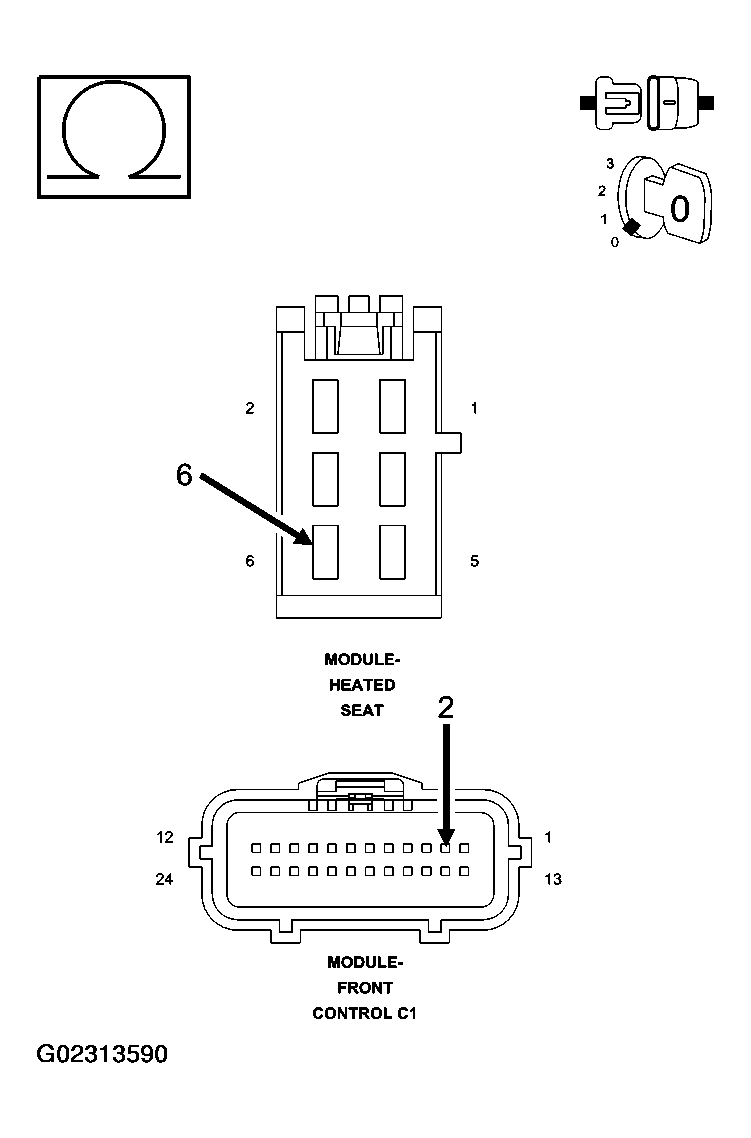

Fig 1: Checking Can B Bus (+) Circuit For Open
Courtesy of DAIMLERCHRYSLER CORPORATION
CAN B BUS (-) CIRCUIT OPEN
Measure the resistance of the (D54) Can B Bus (-) circuit between the Front Control Module C1 connector and the Heated Seat Module connector.

Is the resistance below 2.0 ohms?
- Yes: Replace the Heated Seat Module.
  Perform BODY VERIFICATION TEST - VER 1 .
- No: Repair the Can B Bus (-) circuit for an open.
  Perform BODY VERIFICATION TEST - VER 1 .

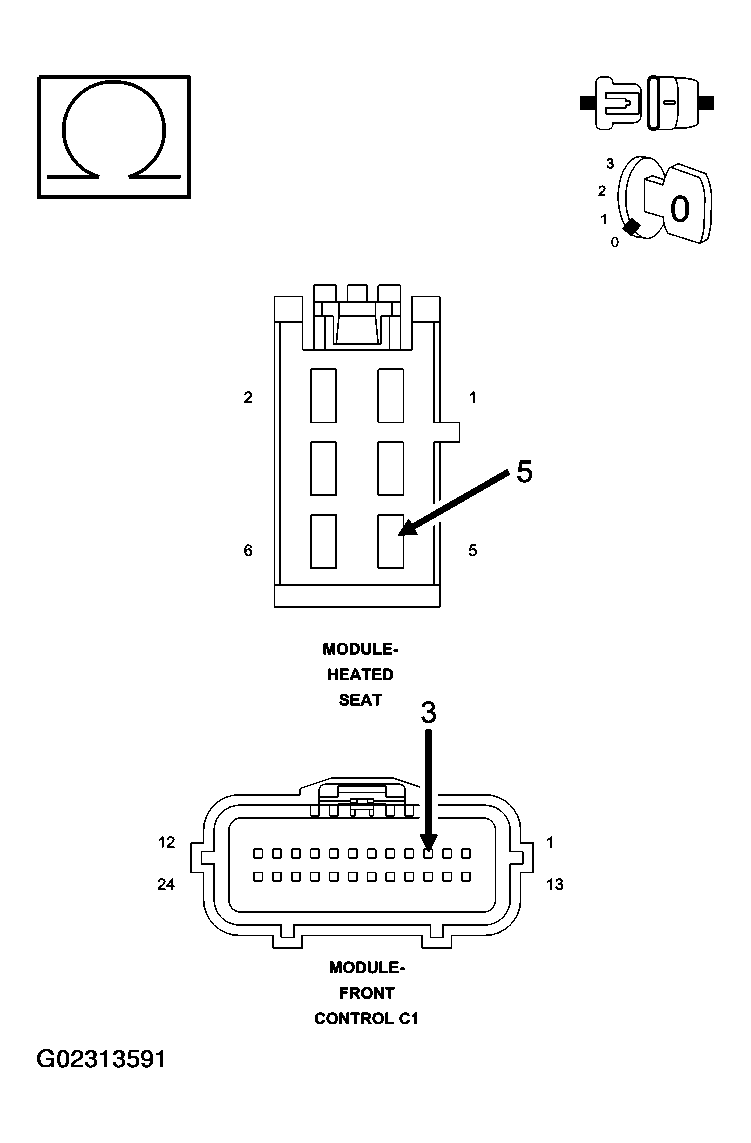

Fig 2: Checking Can B Bus (-) Circuit For Open
Courtesy of DAIMLERCHRYSLER CORPORATION
