Diagnostic Test
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- VERIFY THAT DTC B10BC-RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK IS ACTIVE
With the scan tool, record and erase DTC's
Cycle the ignition switch off then back on.
With the scan tool, read DTC's.
Does the DTC B10BC RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK reset?
- Yes: Go To 2
- No:
The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Perform BODY VERIFICATION TEST - VER 1 .
- HEATED SEAT SWITCH
With the scan tool, record and erase DTC's
Disconnect the lower switch bank.
Cycle the ignition switch off then back on.
With the scan tool, read DTC's.
Does the DTC B10BC RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK reset?
- Yes: Go To 3
- No:
Replace the lower switch bank.
Perform BODY VERIFICATION TEST - VER 1 .
- CHECK THE (P366) RIGHT HEATED SEAT SWITCH SENSE CIRCUIT FOR A PARTIAL SHORT TO GROUND
Disconnect the Cluster C3 connector.

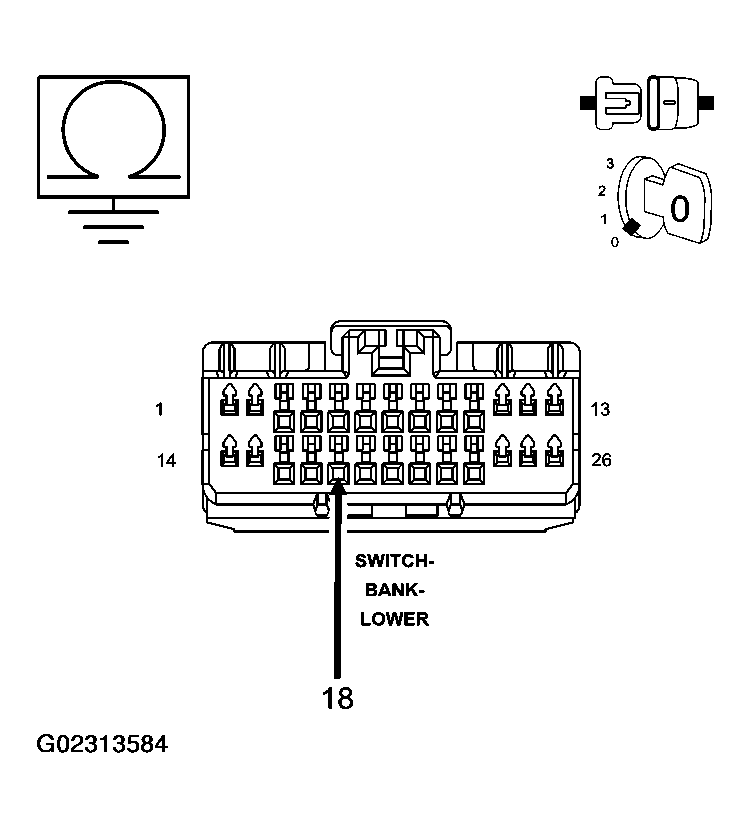

Measure the resistance between ground and the (P366) Right Heated Seat Switch Sense circuit.
Was the resistance below 10K ohms?
- Yes:
Repair the (P366) Right Heated Seat Switch Sense circuit for a short to ground.
Perform BODY VERIFICATION TEST - VER 1 .
- No:
Replace the Cluster.
Perform BODY VERIFICATION TEST - VER 1 .
- Yes:
Repair the (P366) Right Heated Seat Switch Sense circuit for a short to ground.
