Vehicle Emission Control Information (VECI): Description
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

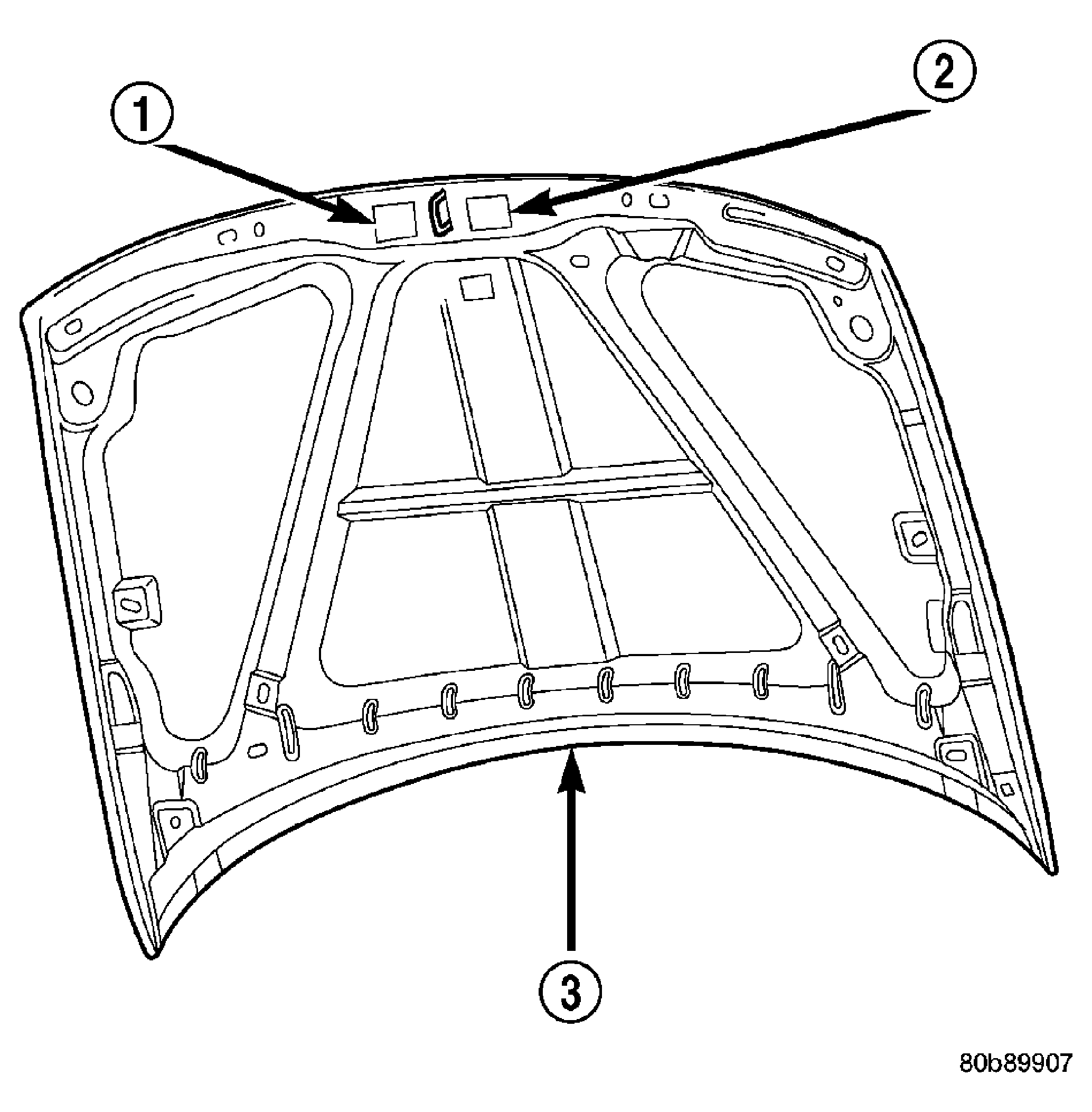

All vehicles are equipped with a combined vehicle emission control information (VECI) label(s). The label is located in the engine compartment on the vehicle hood. See Fig 1. Two labels are used for vehicles built for sale in the country of Canada.
| 1 - VECI LABEL (CANADIAN) |
| 2 - VECI LABEL |
| 3 - HOOD |
The VECI label(s) contain the following:
- Engine family and displacement
- Evaporative family
- Emission control system schematic
- Certification application
- Spark plug and gap
The label also contains an engine vacuum schematic. There are unique labels for vehicles built for sale in the state of California and the country of Canada. Canadian labels are written in both the English and French languages. These labels are permanently attached and cannot be removed without defacing information and destroying label.
