Circuit Schematic

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

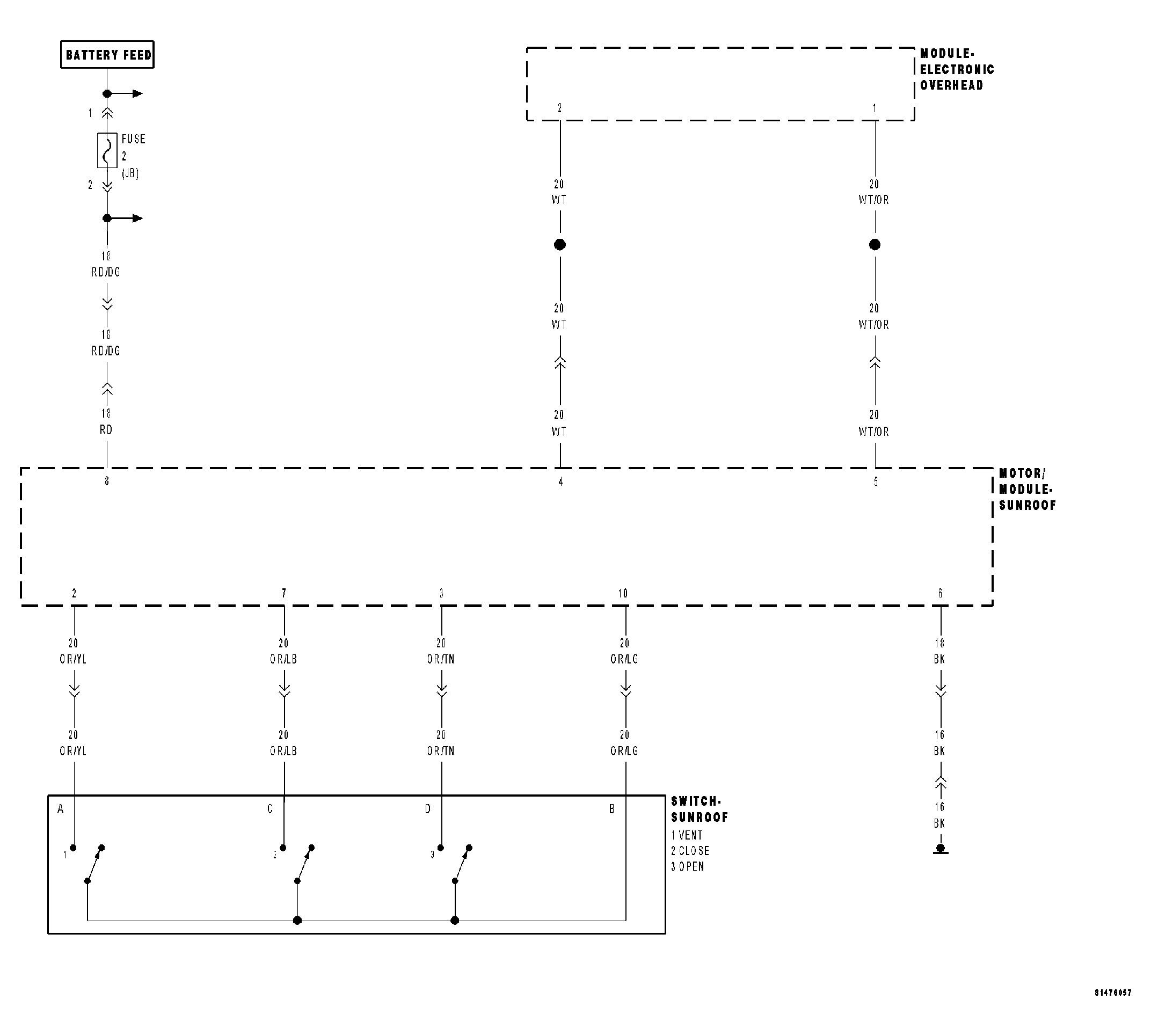

Fig 1: Sunroof Circuit Diagram
GC0029456Courtesy of DAIMLERCHRYSLER CORP.
