B1841-Sunroof Open Switch Input Circuit High: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

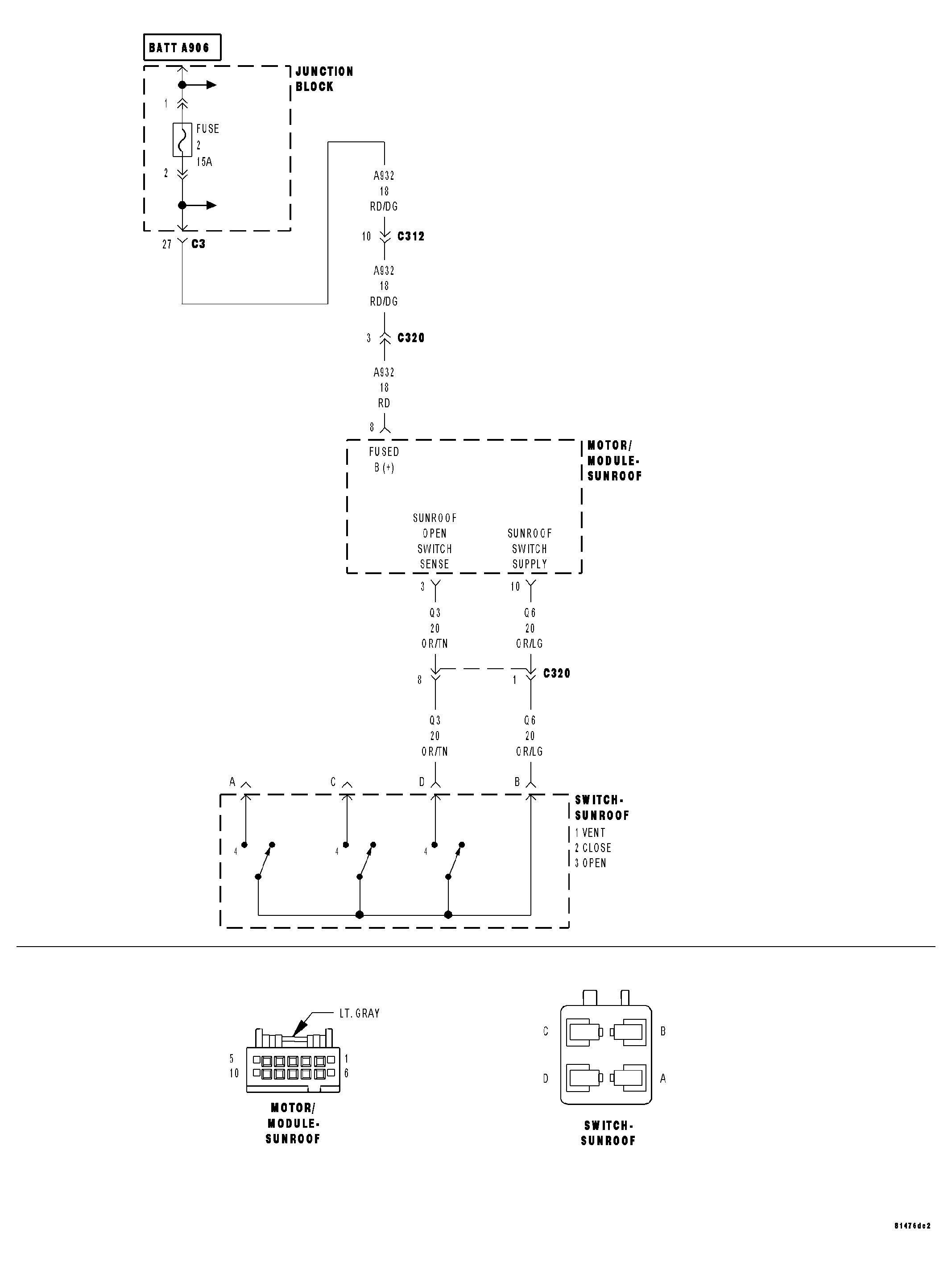

Fig 1: Sunroof Open Switch Input Circuit
GC0029457Courtesy of DAIMLERCHRYSLER CORP.

For the Sunroof circuit diagram (Refer to ELECTRICAL/POWER TOP - SCHEMATICS AND DIAGRAMS)
