Module-Sentry Key Remote Entry: Description

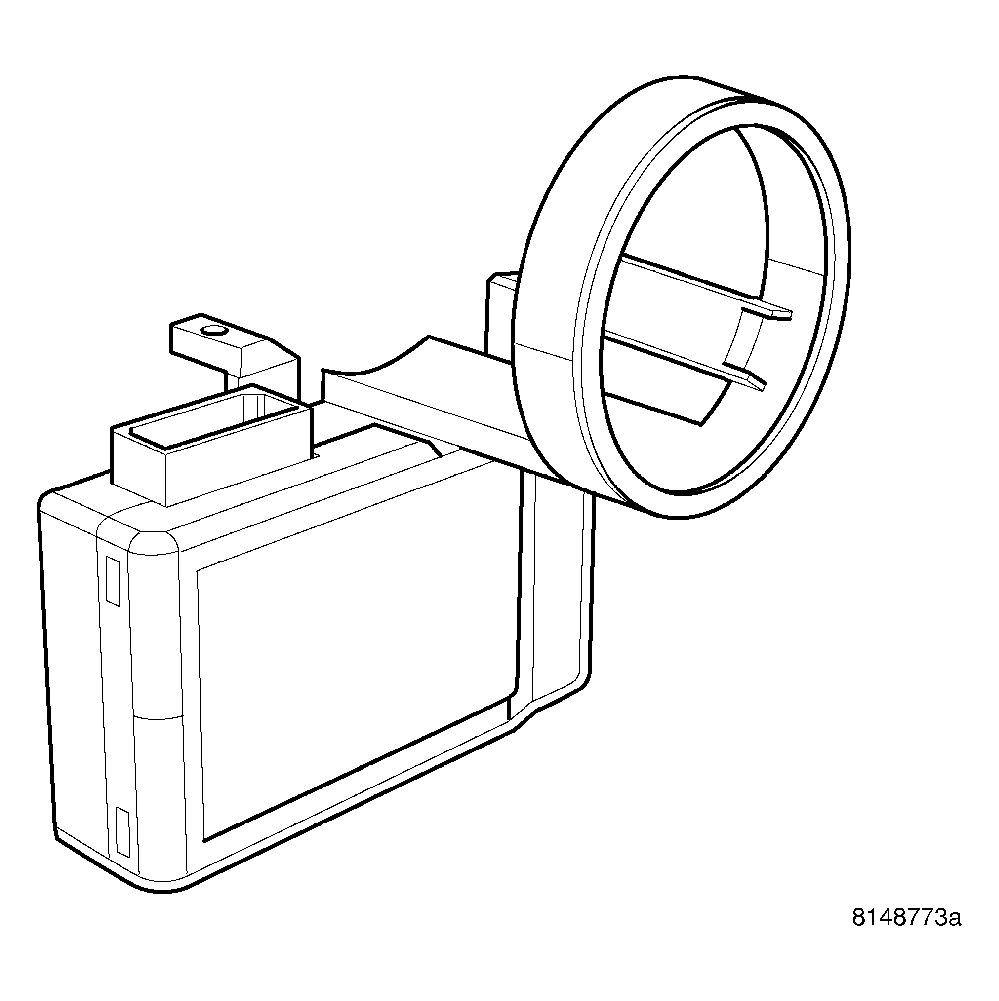

The Sentry Key Remote Entry Module (SKREEM) is sometimes referred to as the Wireless Control Module (WCM). The SKREEM is the primary component of the Sentry Key Immobilizer System (SKIS). It is also the receiver for the Remote Keyless Entry (RKE) system and the Tire Pressure Monitoring System. The SKREEM is located on the instrument panel, just to the right of the steering column, mounted around the ignition lock cylinder housing and is concealed beneath the instrument panel. The molded black plastic housing for the SKREEM has an integral molded plastic halo-like antenna ring. When the SKREEM is properly installed, the antenna ring is oriented around the circumference of the ignition lock cylinder housing.
A single integral connector is located next to the antenna ring on the SKREEM housing. The SKREEM is connected to the vehicle electrical system through a the instrument panel wire harness. The SKREEM cannot be adjusted or repaired. If faulty or damaged, the entire SKREEM unit must be replaced.
