Switch-Window/Door Lock: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

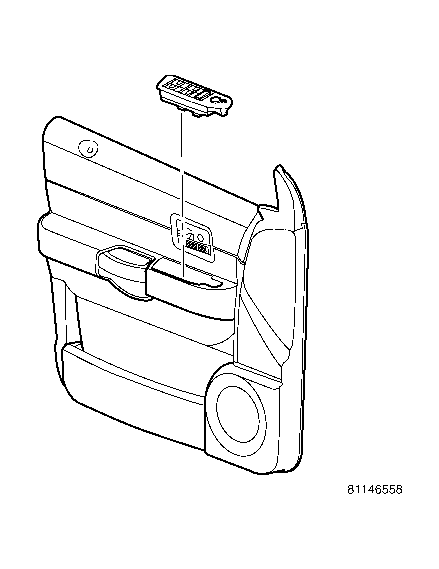

Fig 1: Identifying Window/Door Lock Switch
GC0029338Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect electrical harness connectors to switch.
  2. Insert front end of switch into door trim panel opening. Press into place.
  3. Connect battery negative cable.
