Circuit Schematic

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

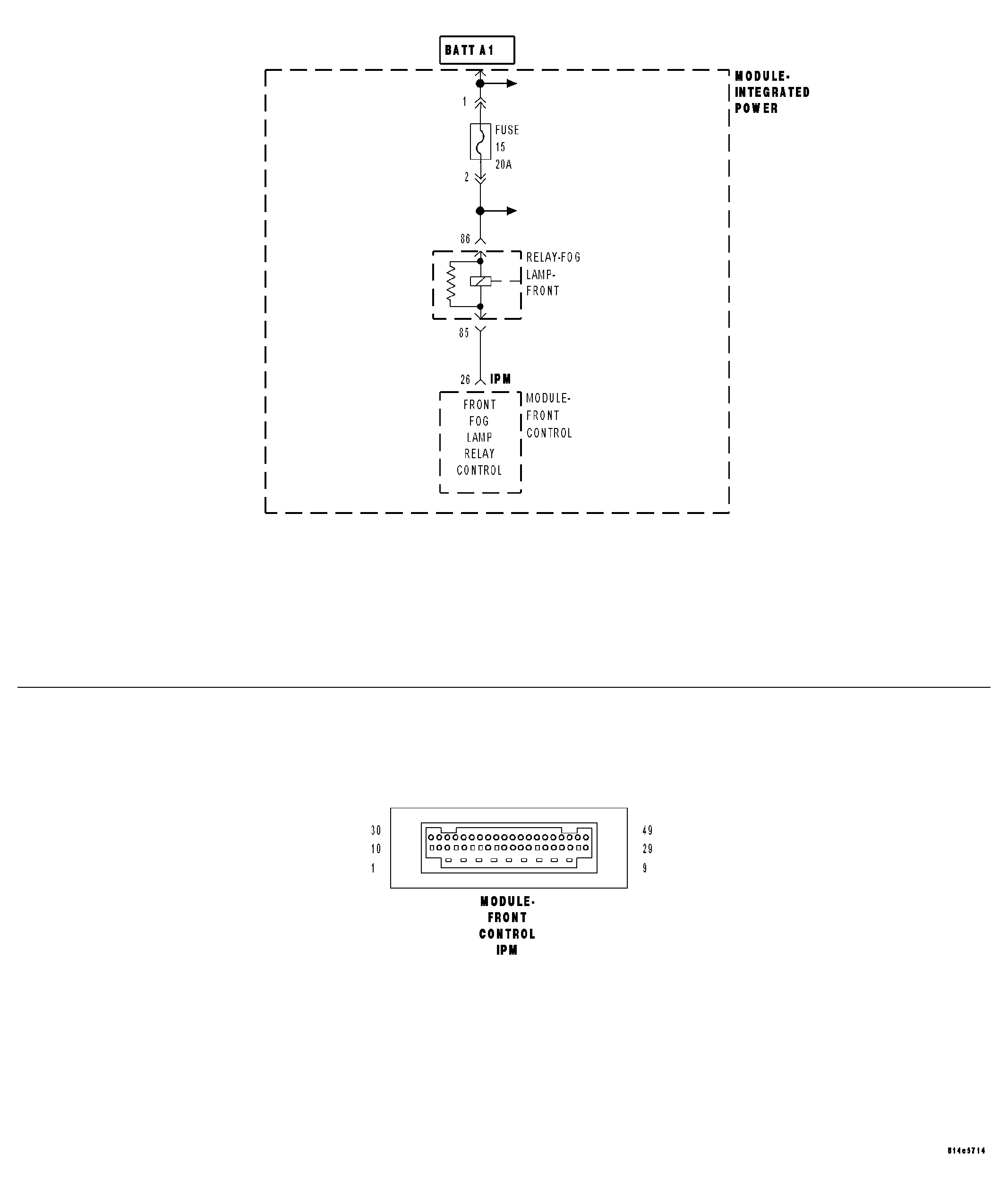

Fig 1: Fog Lamp Circuit Schematic
GC0029202Courtesy of DAIMLERCHRYSLER CORP.
